TP Series 1 Axis CNC Closed Loop Stepper Motor Kit 2 Phase 4.5Nm 6A Nema 34 Closed Loop Motor & Driver

TP Series 1 Axis CNC Closed Loop Stepper Motor Kit 2 Phase 4.5Nm 6A Nema 34 Closed Loop Motor & Driver
NO.:1-CL86-P45
Post a review
Special Offer in March 2024:
  • 5% OFF on Total Order Amount!
  • Enjoy Discount at Checkout!
  • Valid Till March 31st, 2024
  • Note:No coupon code needed, please place order directly!
Our Price:$159.33
Quantity:- +

Bulk Price:
Qty.Range(unit) Price(unit) Discount
2 $151.36 5%
5 $148.18 7%
10 $143.40 10%
50 $138.62 13%
Add To Cart

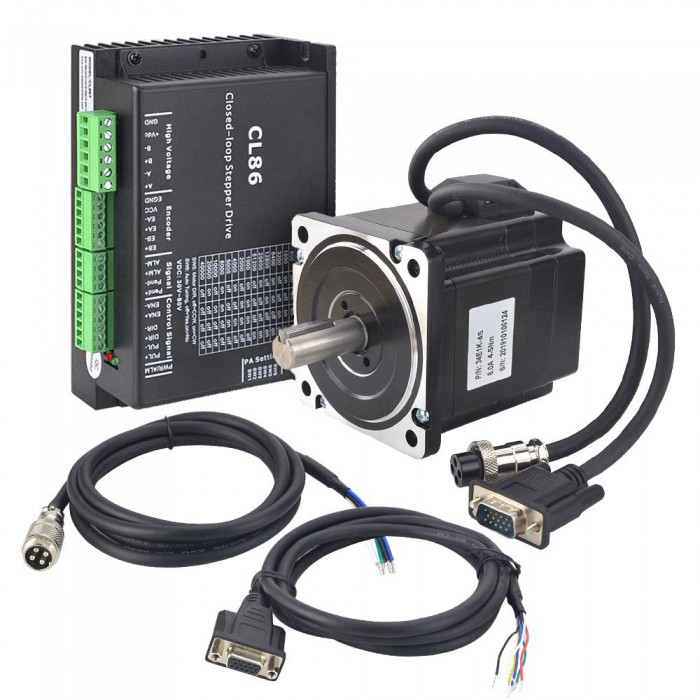

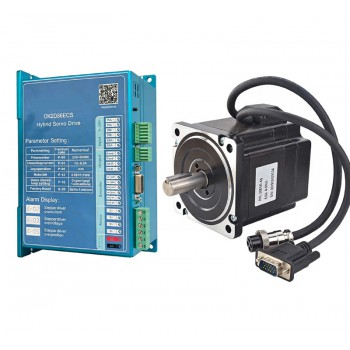

TP Series 1 Axis Closed Loop Stepper CNC Kit 4.5Nm/637.38oz.in Nema 34 Motor & Driver

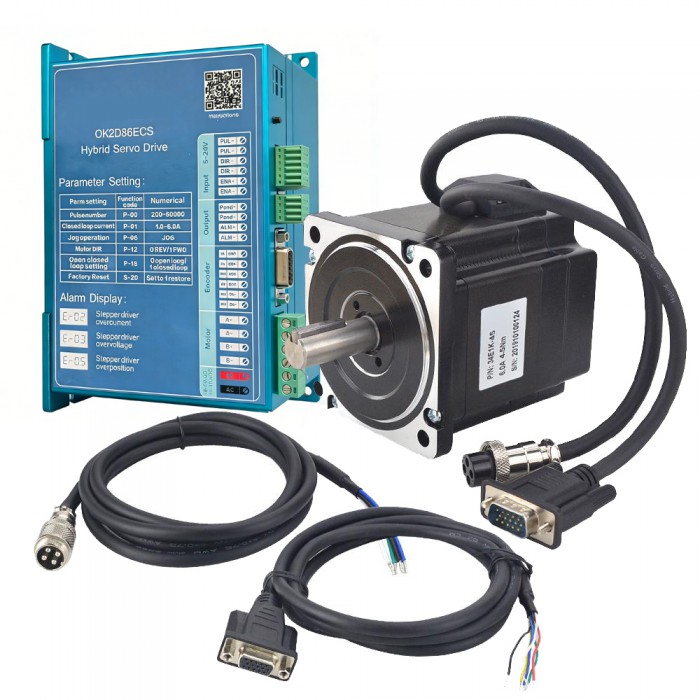

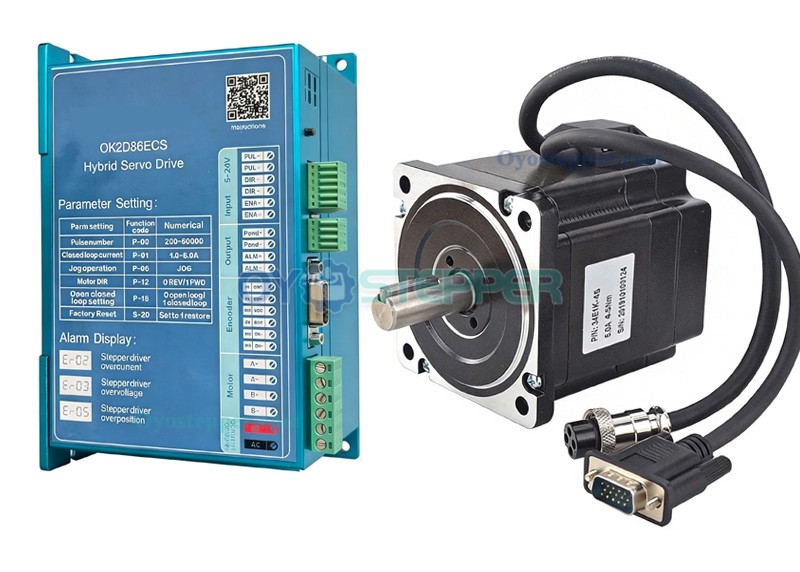

This CNC kit included:

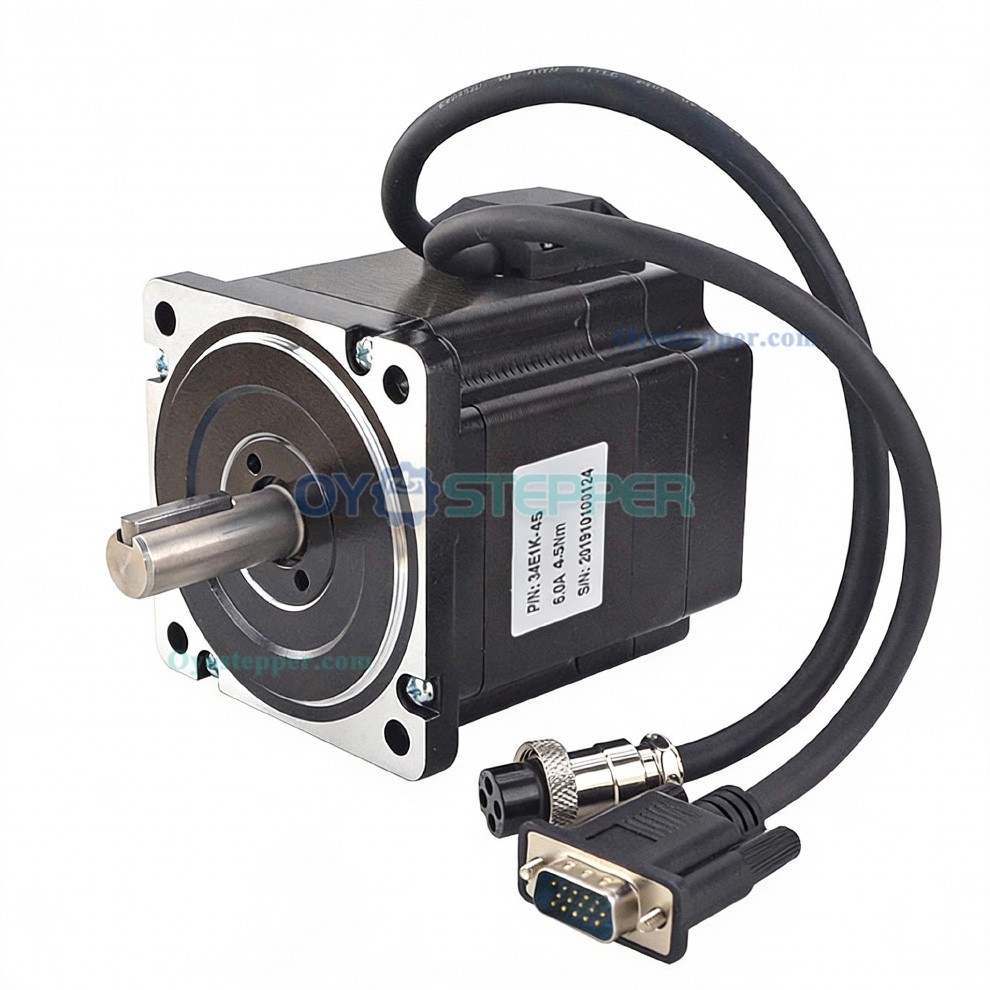

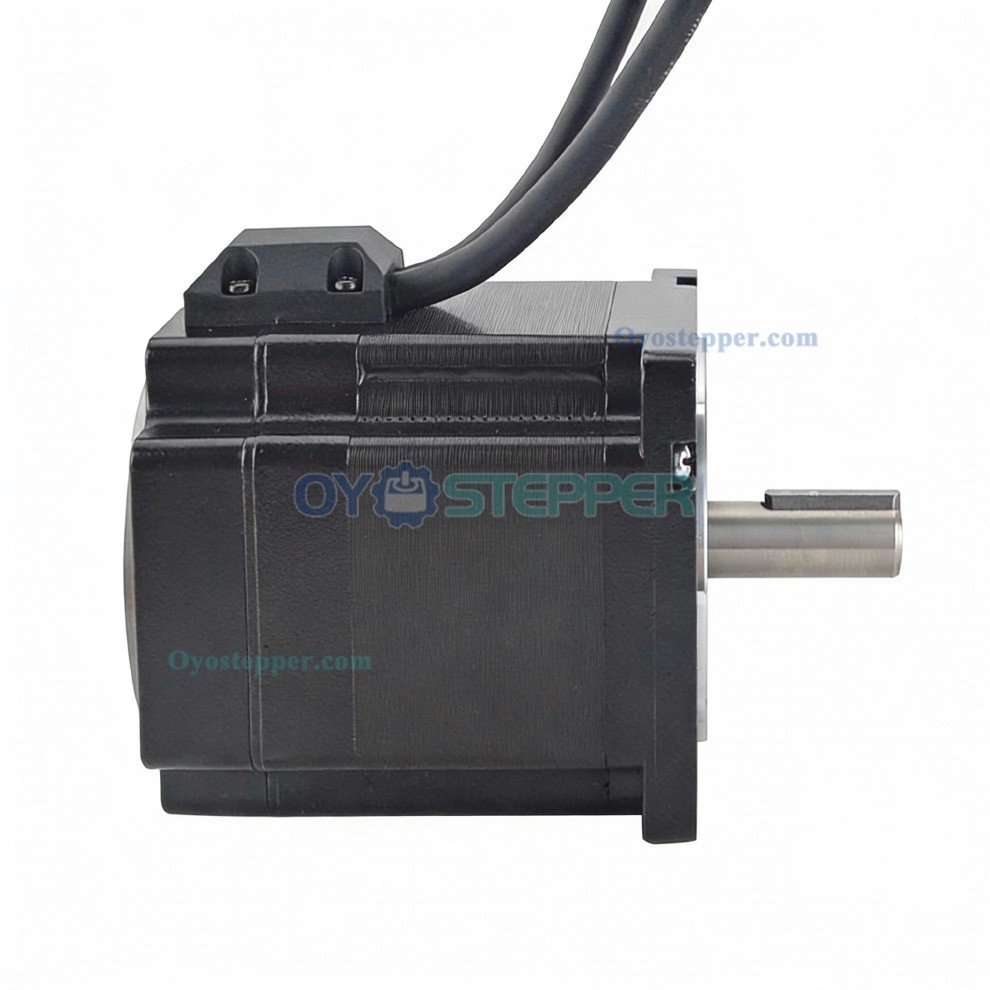

1 x P Series Nema 34 Closed Loop Stepper Motor 4.5Nm/637.38oz.in with Encoder 1000CPR

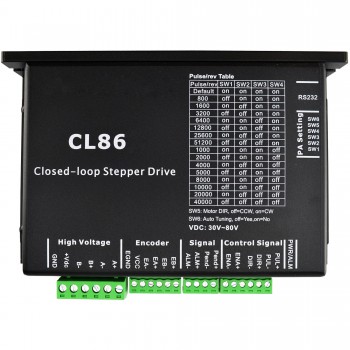

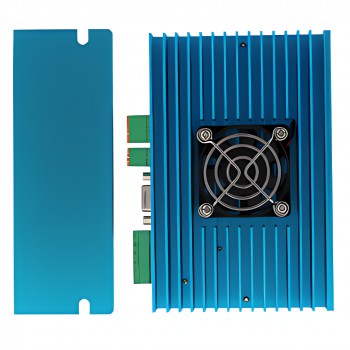

1 x Closed Loop Stepper Driver 0~8.2A 24~80VDC for Nema 34 Stepper Motor

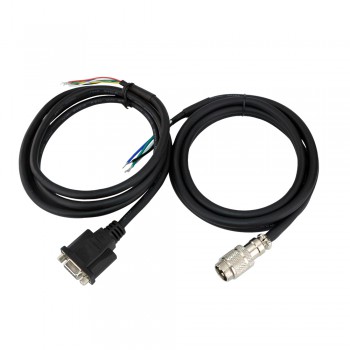

1 x 1.7 m(67") Long Encoder Extension Cable for Closed Loop Stepper Driver

1 x AWG18 1.7 m(67") Long Motor Extension Cable with GX16 Aviation Plug

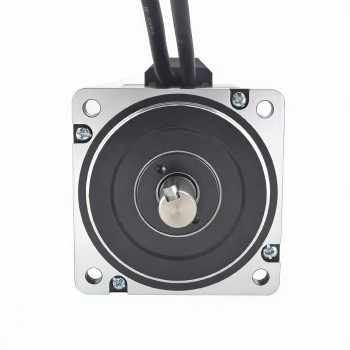

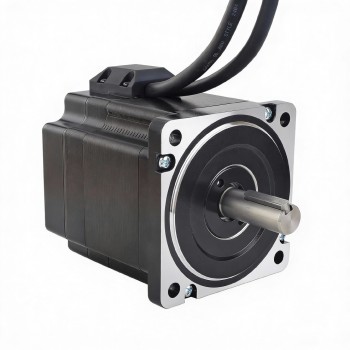

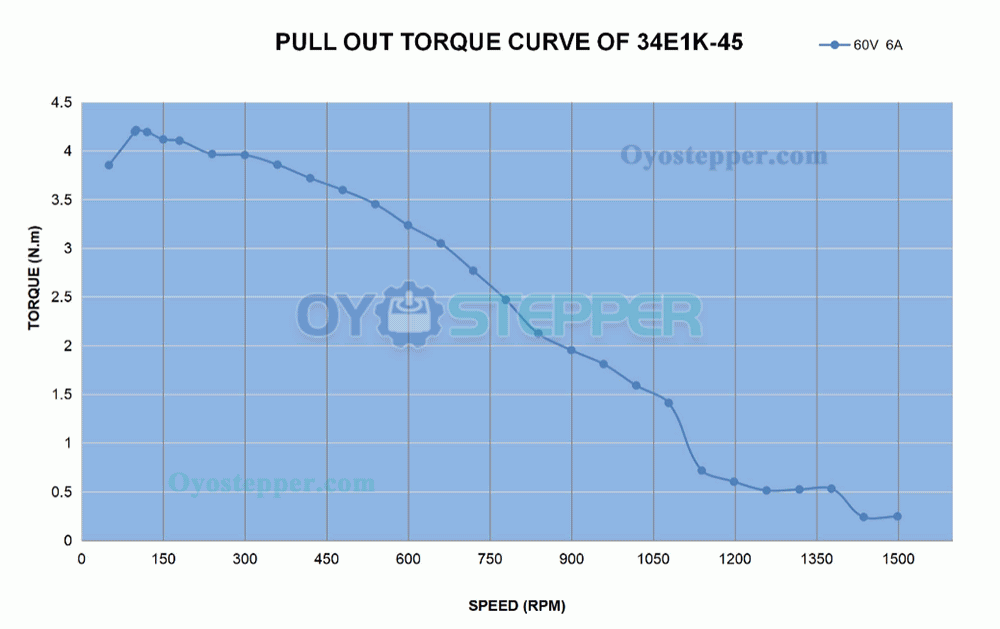

Motor Specification

Part Number: 34E1K-45

Number of phase: 2

Holding Torque: 4.5 Nm(637.38 oz.in)

Rated Current/phase: 6.0 A

Phase Resistance: 0.34 ohms

Inductance: 2.4 mH ± 20%(1KHz)

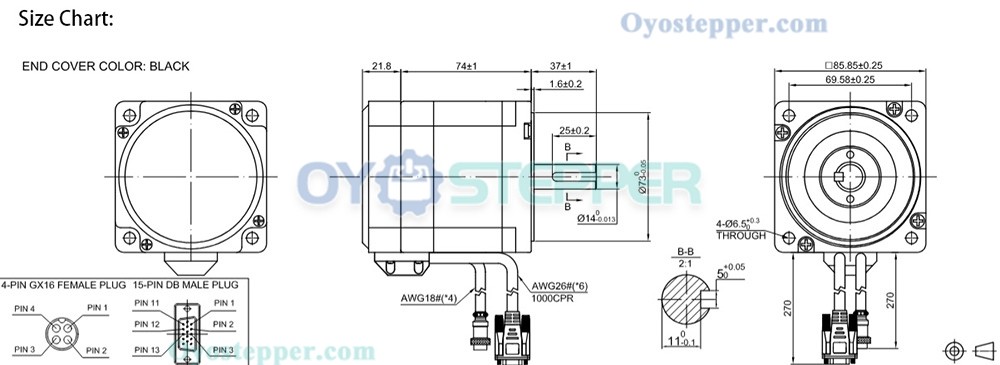

Frame Size: 86 x 86 mm

Body Length: 74 mm

Shaft Diameter: Φ14 mm

Shaft Length: 37 mm

keyway Length: 25 mm

Number of Leads: 4

Lead Length: 270 mm



Encoder Specification

Output Circuit Type: Differential type

Output Signal Channels: 2 channels

Supply Voltage Min: 5V

Supply Voltage Max: 5V

Output High Voltage: <4V

Output Low Voltage: <1V



Encoder Specification

Output Circuit Type: Differential type

Output Signal Channels: 2 channels

Supply Voltage Min: 5V

Supply Voltage Max: 5V

Output High Voltage: <4V

Output Low Voltage: <1V

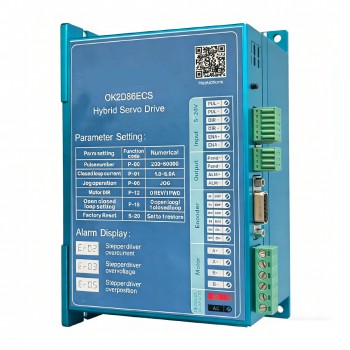

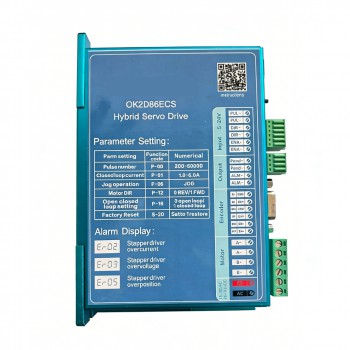

Driver Specification

Output Peak Current: 0~8.2A

Input Voltage: +24~80VDC (Typical 48VDC)

Logic Signal Current: 7~16mA (Typical 10mA)

Pulse Input Frequency: 0~200kHz

Quick response, no delay and almost no settle time

High torque at starting and low speed, high stiffness at standstill

Offer servo-like performance at a much lower cost



Motor and Encoder Connection



PIN 1 2 3 4
Motor A+ A- B+ B-



PIN 2 3 1 13 11 12
Encoder VCC EGND EA+ EA- EB+ EB-



Motor Extension Cable Connection



PIN 1 2 3 4
Color White Green Blue Black



Or



PIN 1 2 3 4
Color Black Green Red Blue



Encoder Extension Cable Connection



PIN 2 3 1 13 11 12
Color Red White Black Blue Yellow Green



PLEASE NOTE: The thick black wire can be used for shielding, but it is not required, so you can leave it unconnected.



Resources

Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!

Prev: Nema 23 Worm Gearbox 50:1 NMRV30 Worm Gear Motor Speed Reducer for Nema 23 Stepper Motor
Next: Nema 34 20:1 Worm Gearbox Motor NMRV40 Worm Gear Speed Reducer for Nema 34 Stepper Motor
Electrical Specification
Holding Torque (Ncm) 450
Holding Torque (oz.in) 637.38
Product Series TP Series
Physical Specification
Frame Size(mm) Nema 34 (86 x 86)
Product Type Closed Loop Kit
