1 Axis Closed Loop Stepper Motor CNC Kit YE Series 9.0 Nm(1274.76oz.in) Nema 34 Motor & Driver

1 Axis Closed Loop Stepper Motor CNC Kit YE Series 9.0 Nm(1274.76oz.in) Nema 34 Motor & Driver
NO.:1-CL86Y-34HE46
Post a review
Special Offer in May 2023:
  • $10 Off Over $150
  • $20 Off Over $300
  • $30 Off Over $500
  • $50 Off Over $800
  • $60 Off Over $1000
  • $80 Off Over $1500
  • Enjoy Discount at Checkout!
  • Valid Till May 31st, 2023
  • Note:No coupon code needed, please place order directly!
Our Price:$136.99
Quantity:- +

Bulk Price:
Qty.Range(unit) Price(unit) Discount
2 $130.14 5%
5 $127.40 7%
10 $123.29 10%
50 $116.44 15%
Add To Cart

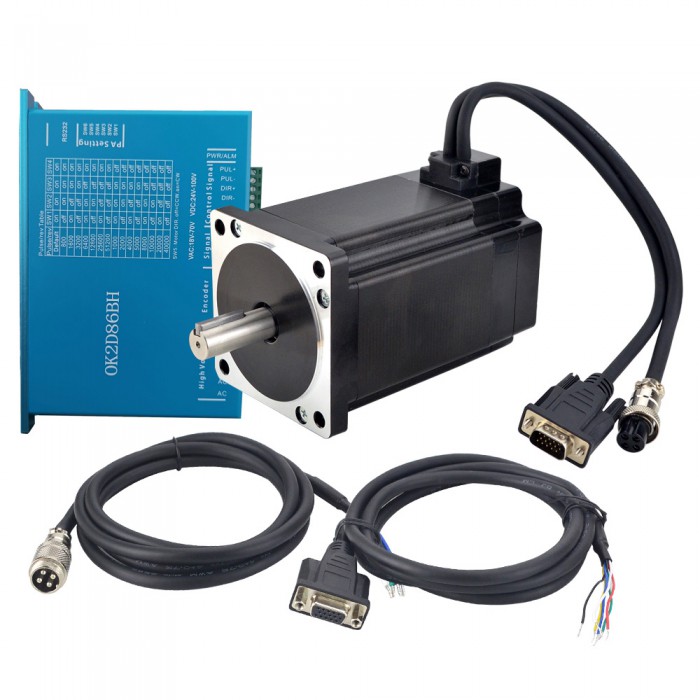

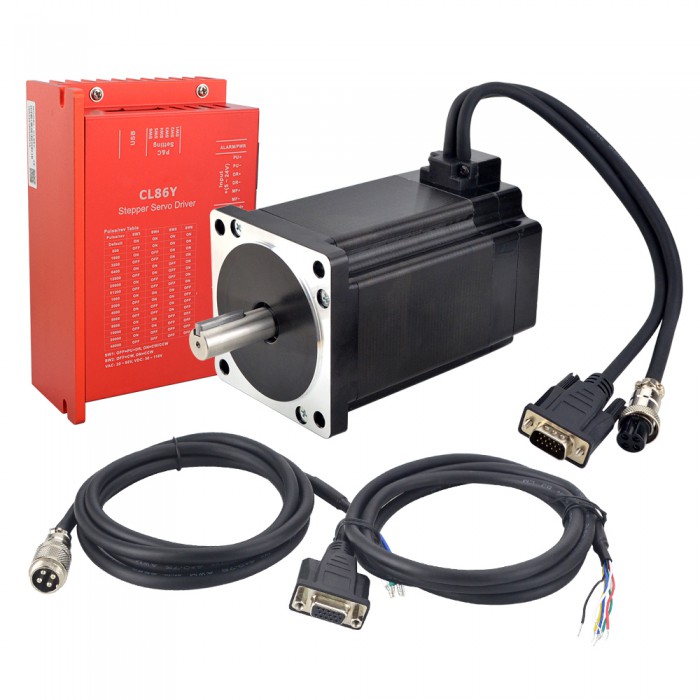

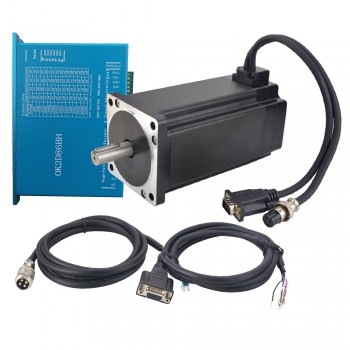

This CNC kit included:

  • 1 x Closed Loop Stepper Driver 0-8.5A 20-80VAC/30-110VDC for Nema 34 Stepper Motor
  • 1 x E Series Nema 34 Closed Loop Stepper Motor 9 Nm(1274.76oz.in) Encoder 1000CPR

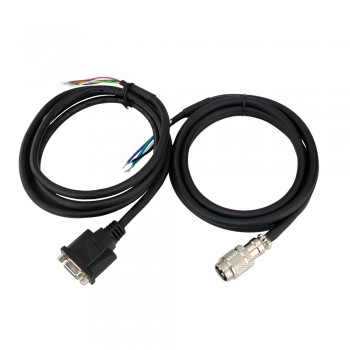

  • 1 x 1.7 m(67") Long Encoder Extension Cable for Closed Loop Stepper Driver
  • 1 x RV-4 AWG18 1.7 m(67") Long Motor Extension Cable with GX16 Aviation Plug

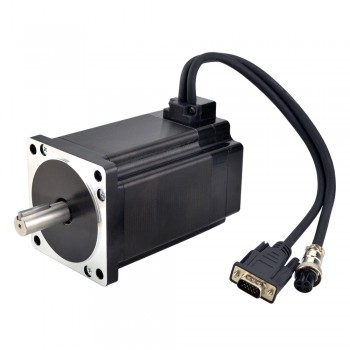

Motor Specification

  • Part Number: 34HE46-6004D-E1000
  • Number of phase: 2
  • Holding Torque: 9.0 Nm(1274.76oz.in)
  • Rated Current/phase: 6.0 A
  • Phase Resistance: 0.62 ohms± 10%
  • Inductance: 6.3 mH ± 20%(1KHz)
  • Frame Size: 86 x 86 mm
  • Body Length: 117 mm
  • Shaft Diameter: Φ14 mm
  • Shaft Length: 37 mm
  • Keyway Shaft Length: 25 mm
  • Lead Length: 300 mm

Encoder Specification

  • Driving Voltage : 5V
  • Output current : 55mA
  • Resolution : 1000cpr
  • Output Signal : 2 Channels
  • Bore Diameter : Φ8mm
  • Output Frequency : ≤1MHz
  • Running Speed : ≤5000rpm

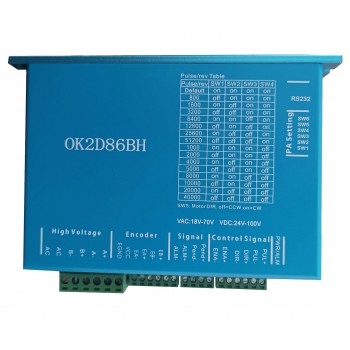

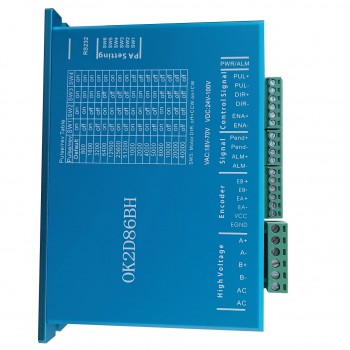

Driver Specification

  • Output Peak Current: 0~8.5A(0~6 RMS)
  • Input Voltage: 20~80VAC/30~110VDC (Typical 48/60VDC)
  • Logic Signal Current: 7~16mA (Typical 10mA)
  • Pulse Input Frequency: 0~200kHz
  • Pulse Width: 2.5μS
  • Built-in positioning and alarm output for easy detection and control
  • Intelligently regulate current, reduce vibration, noise and heat, and increase efficiency by 35%
  • With single and double pulse selection function, the factory default is: pulse + direction control
  • Excellent high-speed performance and rigidity, perfect combination of servo and stepping advantages

Connection

PIN
1
2
3
4
Color
White
Green
Blue
Black
Motor
A+
A-
B+
B-



PIN
2
3
1
13
11
12
Color
Red
White
Black
Blue
Yellow
Green
Encoder
VCC
EGND
EA+
EA-
EB+
EB-



Resources

Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!

Prev: 1 Axis Closed Loop Stepper Motor CNC Kit YE Series 4.8 Nm(679.87oz.in) Nema 34 Motor & Driver
Next: 1 Axis Closed Loop Stepper Motor CNC Kit YE Series 12.0 Nm(1699.68oz.in) Nema 34 Motor & Driver
CNC Kit Specification
No of Axis Single Axis
Open-loop/Closed-loop Closed-loop
Motor Specification
Holding Torque (Ncm) 900
Holding Torque (oz.in) 1274.76
Inductance(mH) 6.3
Lead Length(mm) 300
No. of Lead 4
Phase Resistance(ohm) 0.62
Rated Current (A) 6.0
Shaft Diameter(mm) 14
Shaft Length(mm) 37
Step Angle(°) 1.8
Encoder Specification
Output Current(mA) 55
Output Frequency ≤1MHz
Resolution(CPR) 1000
Running Speed(rpm) ≤5000rpm
Output Signal Channels 2 Channels
