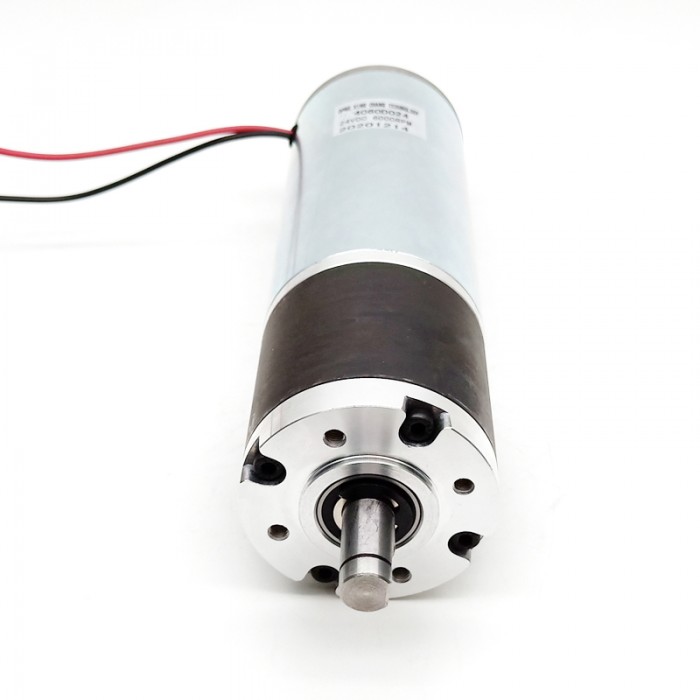

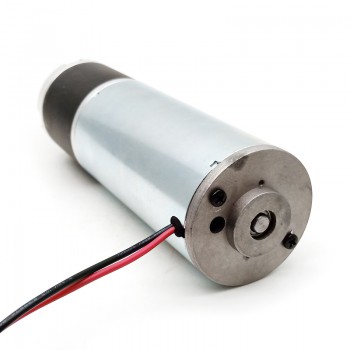

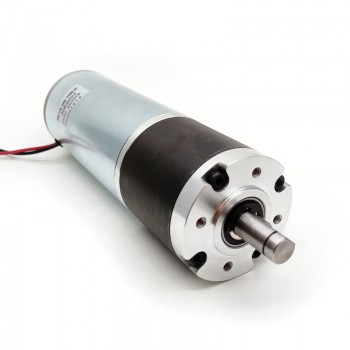

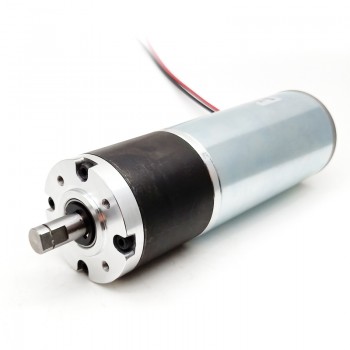

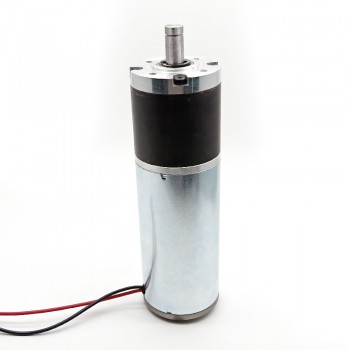

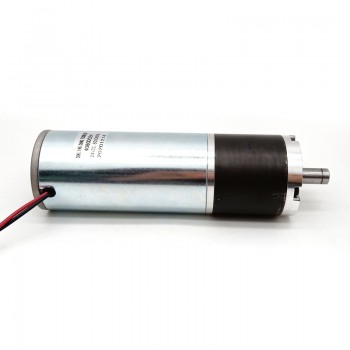

24V High Torque Brushed DC Geared Motor with Planetary Gearbox 10kg.cm
- 6% OFF on Total Order Amount!
- Enjoy Discount at Checkout!
- Valid Till May 10th, 2024
- Note:No coupon code needed, please place order directly!
Videos
24V High Torque Brushed DC Geared Motor with Planetary Gearbox 10kg.cm
Features:
1.Small size dc gear motor with low speed and big torque
2.42mm gear motor provide 40.0Nm torque max and more reliable
3.Suitable to small diameter, low noise and big torque application
4.Dc Gear motors can match encoder,11ppr
5.Reduction Ratio: 4、13、18、47、55、77、168、198、326;
Application:
Business Machines:
ATM, Copiers and Scanners, Currency Handling, Point of Sale, Printers, Vending Machines.
Food and Beverage:
Beverage Dispensing, Hand Blenders, Blenders, Mixers, Coffee Machines, Food Processors, Juicers, Fryers, Ice Makers, Soy Bean Milk Makers.
Camera and Optical:
Video, Cameras, Projectors.
Lawn and Garden:
Lawn Mowers, Snow Blowers, Trimmers, Leaf Blowers.

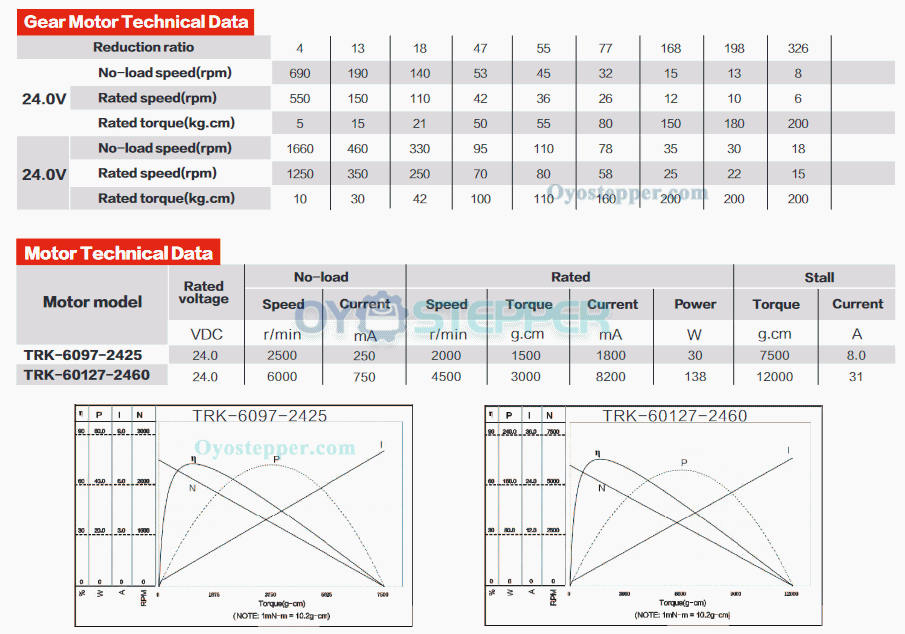

Electrical Specification
Part Number: TWG1220-N30VA
Power:138W
Rated Voltage:24V
Continuous Current(A):250-8200mA
Rated Torque:1.0-10.0kg.cm
Rated Speed:8-6000r/min
Type:Dc Gear Motor
Efficiency: 80%-90%
Construction:Permanent Magnet
Noise:30cm.<40db
Encoder: 1-1024PPR

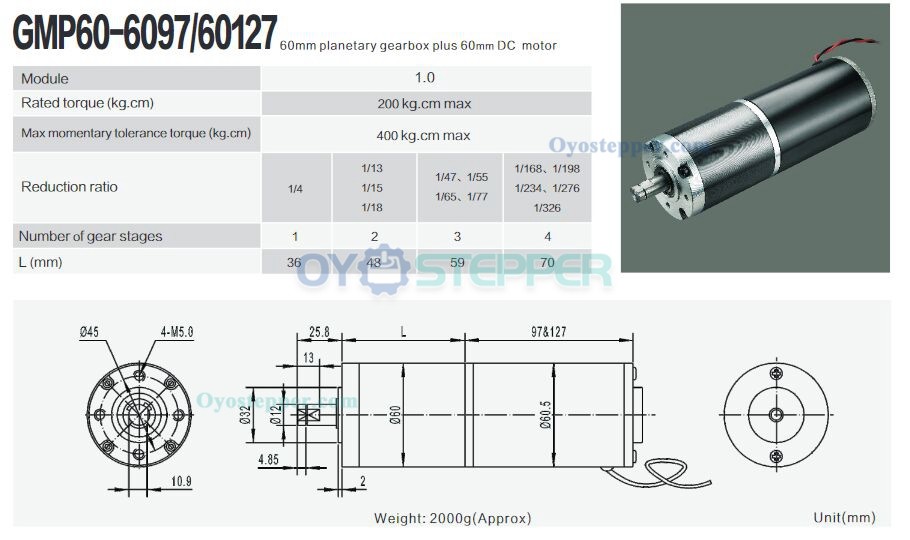

Physical Specification:
Motor Size:60*127mm
Motor Diameter:60mm
Length:127mm+Planetary gearbox
Shaft Length: 25.8mm
D-cut Length: 13mm
Shaft diameter:12mm
Weight:2kg
Resources
Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!
Physical Specification | |
---|---|
Body Length(mm) | 127mm+Planetary gearbox |
Shaft Type | D-Cut |
Single Shaft/Dual Shaft | Single Shaft |
Weight(g) | 2000g |
Output Shaft Diameter(mm) | 12mm |
Output Shaft Length(mm) | 25.8mm |
Gearbox Type | DC gear motor |
Electrical Specification | |
Rated Power(W) | 138W |
Rated Voltage(V) | 24V |
Current(A) | 250-8200mA |
Rated Torque(kg.cm) | 1.0-10.0kg.cm |
Rated Speed(rpm) | 8-6000r/min |
