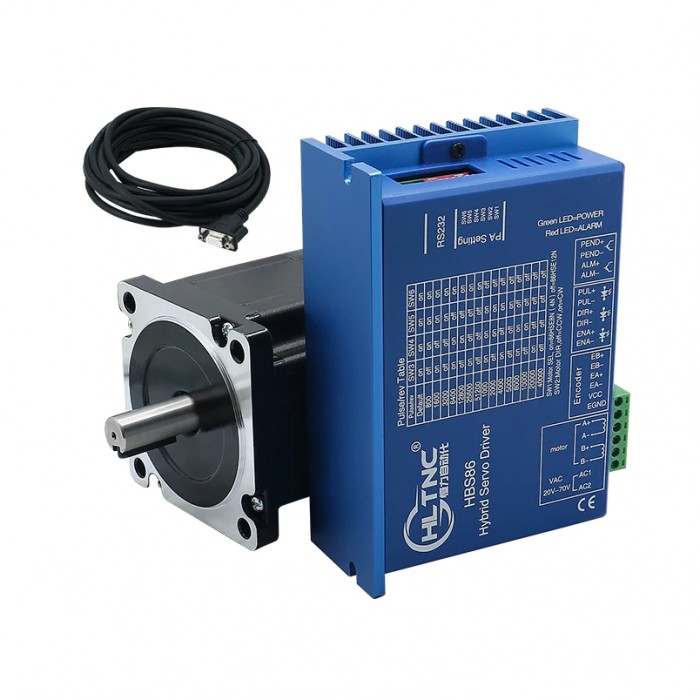

HLTNC Nema34 Close Loop Stepper Motor 12N.m With Brake + Hybrid Servo Driver Kit For CNC Router

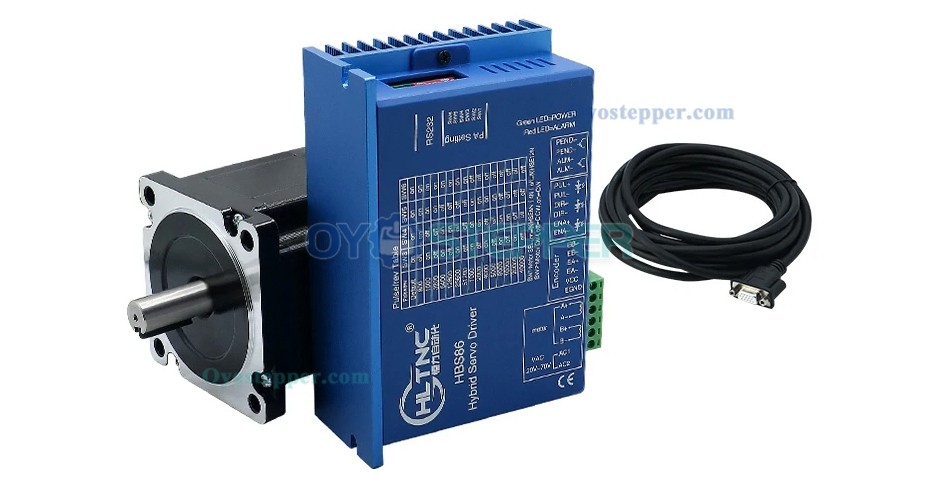

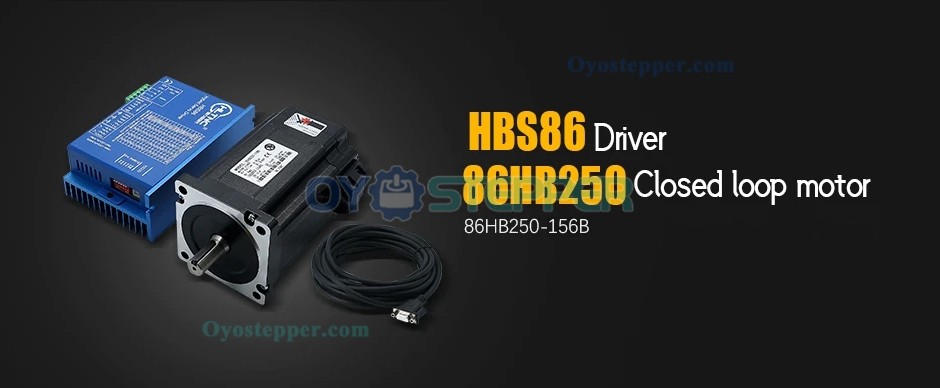

HLTNC Nema34 Close Loop Stepper Motor Kit 86HB250-156B-HBS86 1.8 Deg 12N.m With HBS86 Driver + Brake
Specifications:
Certification: CE
Model Number: 86HB250-156B+HBS86
Name: Nema34 Close Loop Stepper Motor and Driver
Close Loop Motor: 86HB250-156B

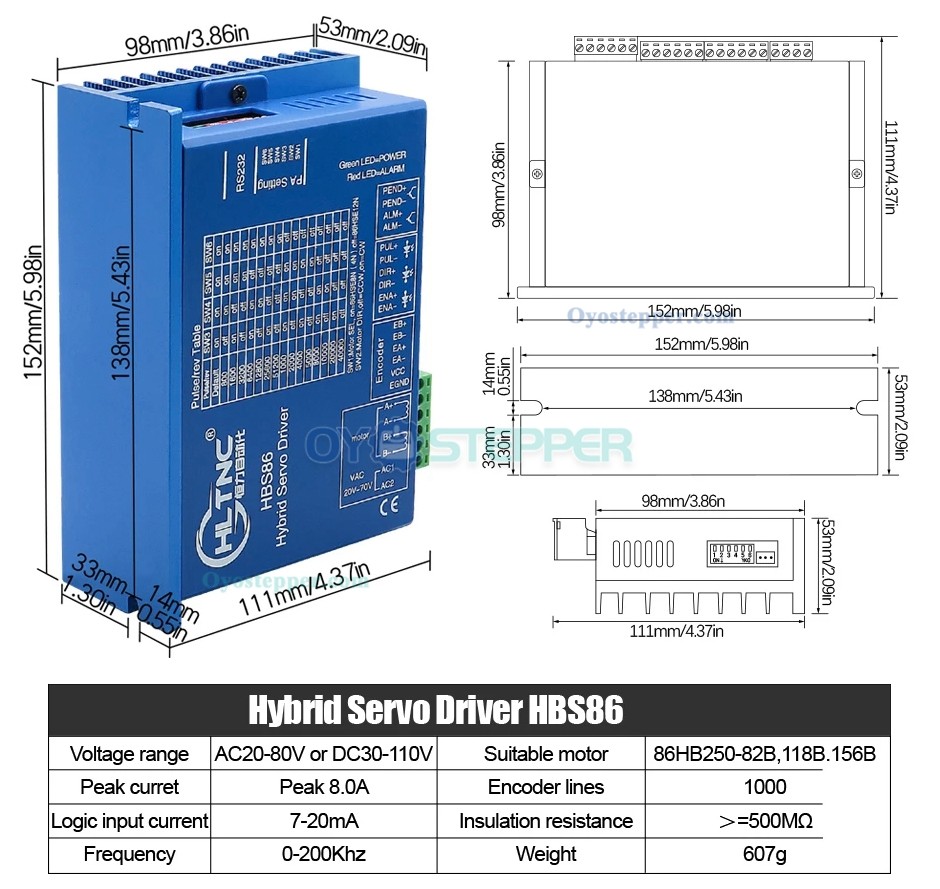

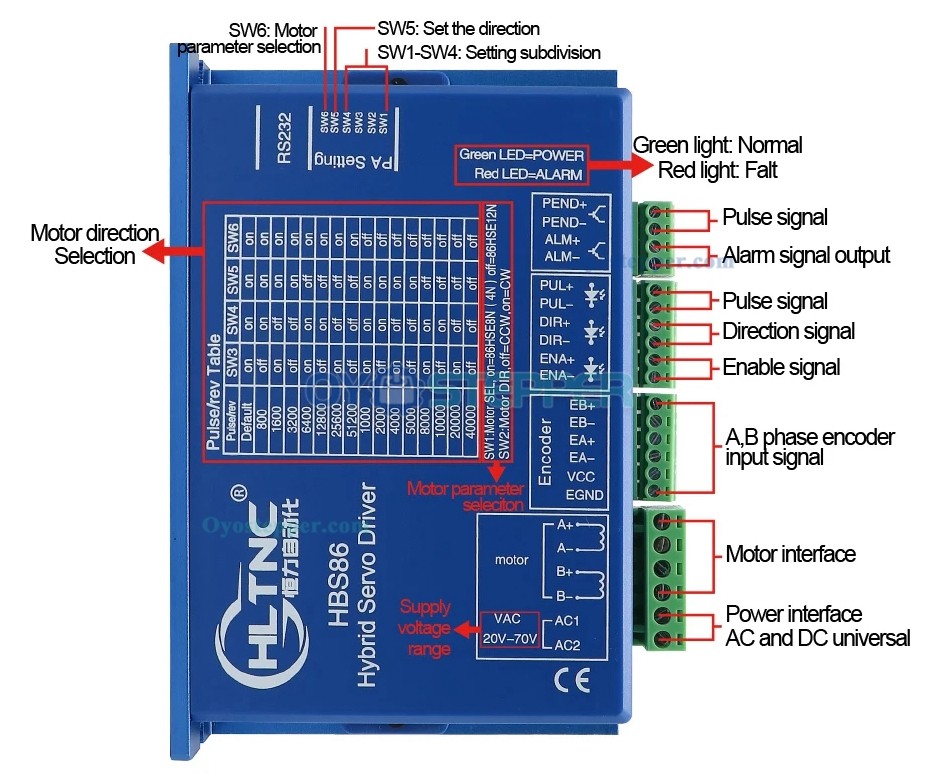

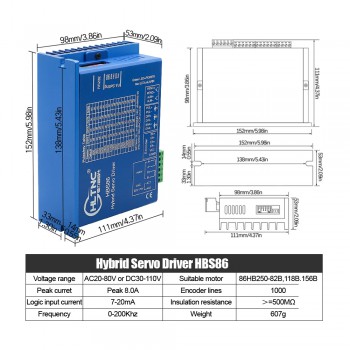

Motor Driver: HBS86
Encoder Cable: 3M
Holding torque:12N.m
Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!

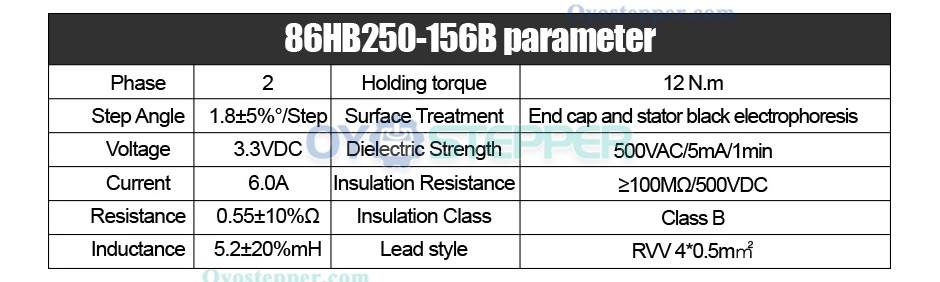

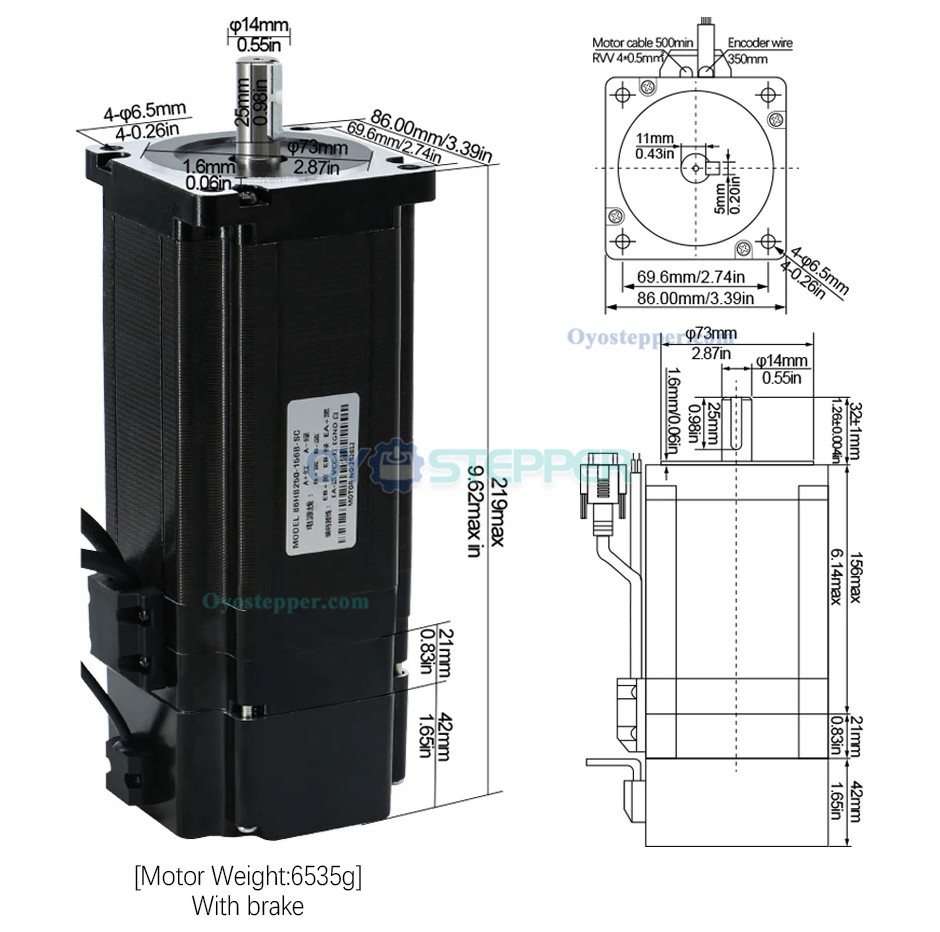

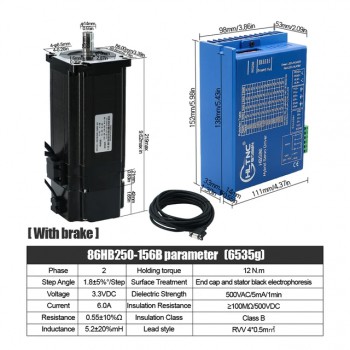

| Motor Specification | |
|---|---|
| Motor Nema Size | Nema 34 |
| Body Length(mm) | 219 |
| Holding Torque (Ncm) | 12 |
| Holding Torque (oz.in) | 1699.72 |
| Inductance(mH) | 5.2 |
| Motor Length(mm) | 156 |
| Phase Resistance(ohm) | 0.55 |
| Rated Current (A) | 6 |
| Shaft Diameter(mm) | 14 |
| Shaft Length(mm) | 32 |
| Shaft Type | Keyway |
| Single Shaft/Dual Shaft | Single Shaft |
| Step Angle(°) | 1.8 |
| Number Of Phase | 2 |
| CNC Kit Specification | |
| No of Axis | Single Axis |
| Open-loop/Closed-loop | Closed-loop |
