HLTNC Nema34 Close Loop Stepper Motor 1.8 Deg 12N.m (1714oz.in) + Driver Kit Without Brake

Name: HLTNC Nema34 Close Loop Stepper Motor 1.8 Deg 12N.m (1714oz.in) + Driver Kit Without Brake
Brand: HLTNC
SKU: 86HB250-156B-HBS86 No Brake
Price: 175.95 USD
Availability: InStock

NO.:86HB250-156B-HBS86 No Brake
Post a review

Our Price:$175.95

Description Specification Custom Options Review

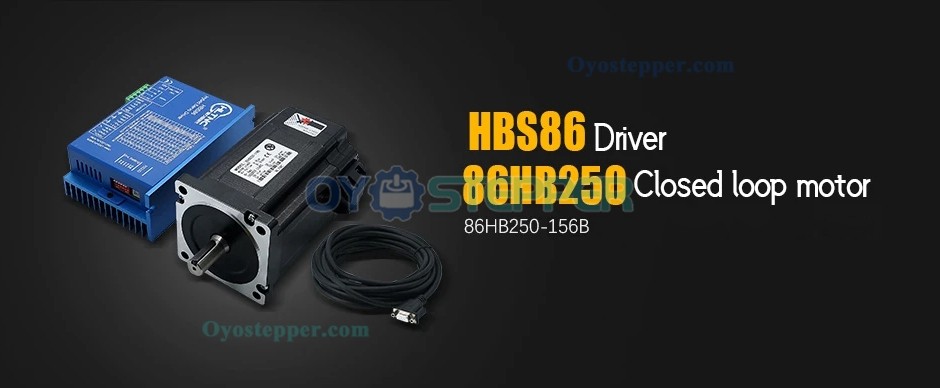

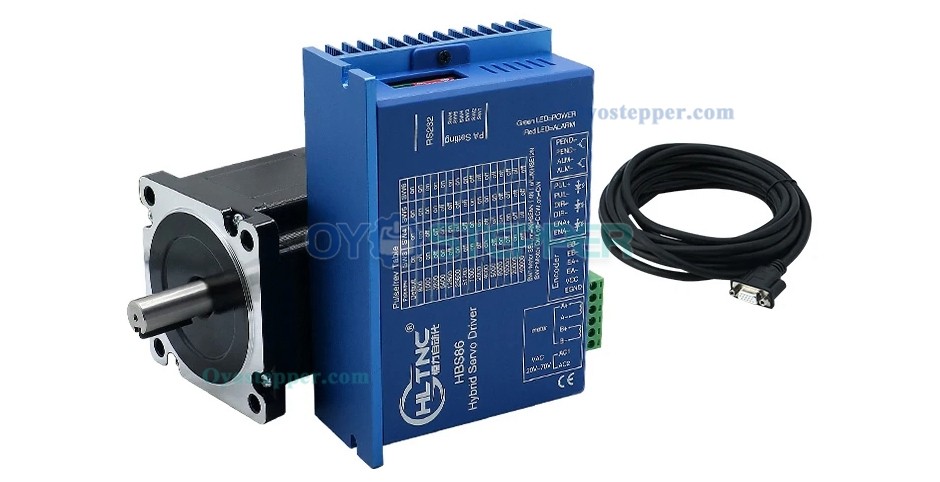

HLTNC Nema34 Close Loop Stepper Motor Kit 86HB250-156B-HBS86 (No Brake) 1.8 Deg 12N.m With HBS86 Driver

Specifications:

Certification: CE

Model Number: 86HB250-156B HBS86

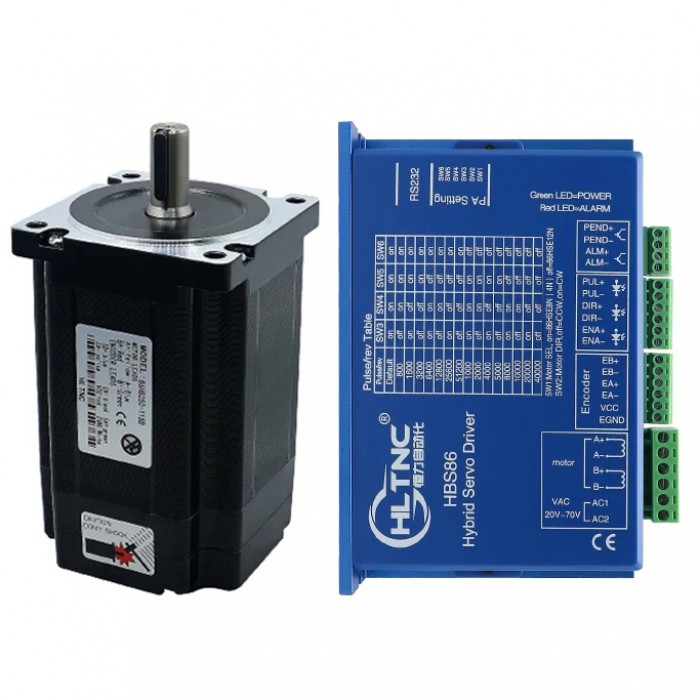

Name: Nema34 Close Loop Stepper Motor and Driver

Close Loop Motor: 86HB250-156B

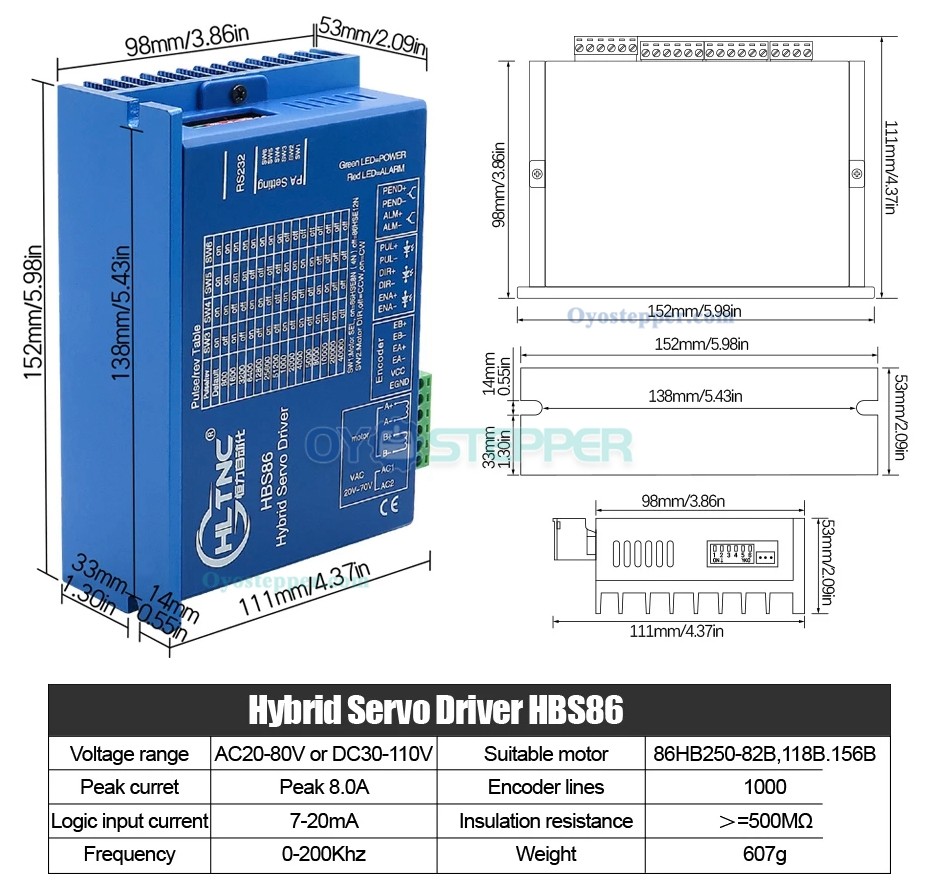

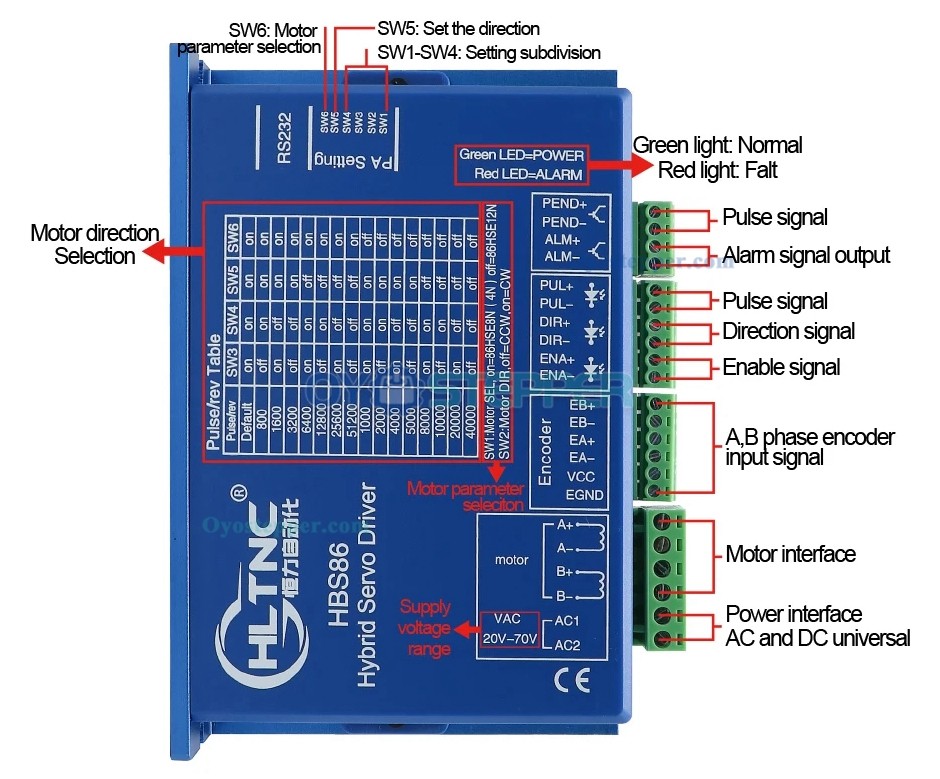

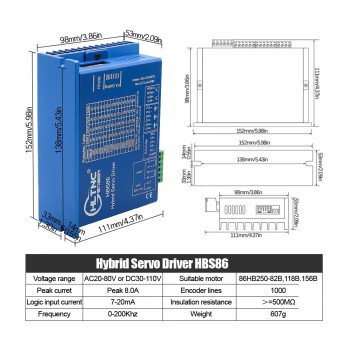

Motor Driver: HBS86

Encoder Cable: 3M

Holding torque:12N.m

Nema34 Close Loop Stepper Motor 1.8 Deg 12N.m (1714oz.in) + Driver Kit Without Brake

Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!

Prev: HLTNC Nema 34 Close Loop Stepper Motor 1.8Deg 8N.m (1143oz.in)& HBS86 Driver Kit With Brake
Next: HLTNC Nema34 Close Loop Stepper Motor 12N.m With Brake + Hybrid Servo Driver Kit For CNC Router

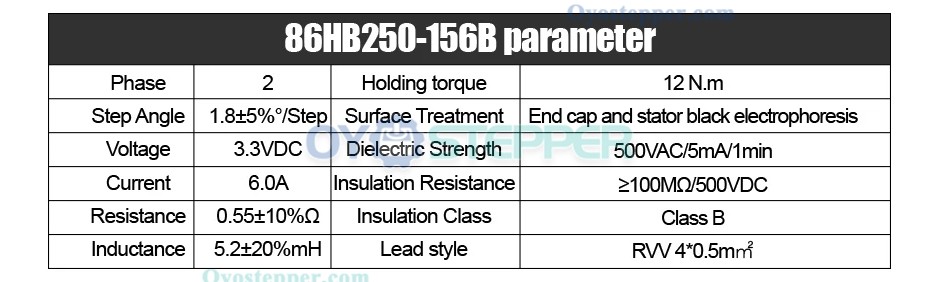

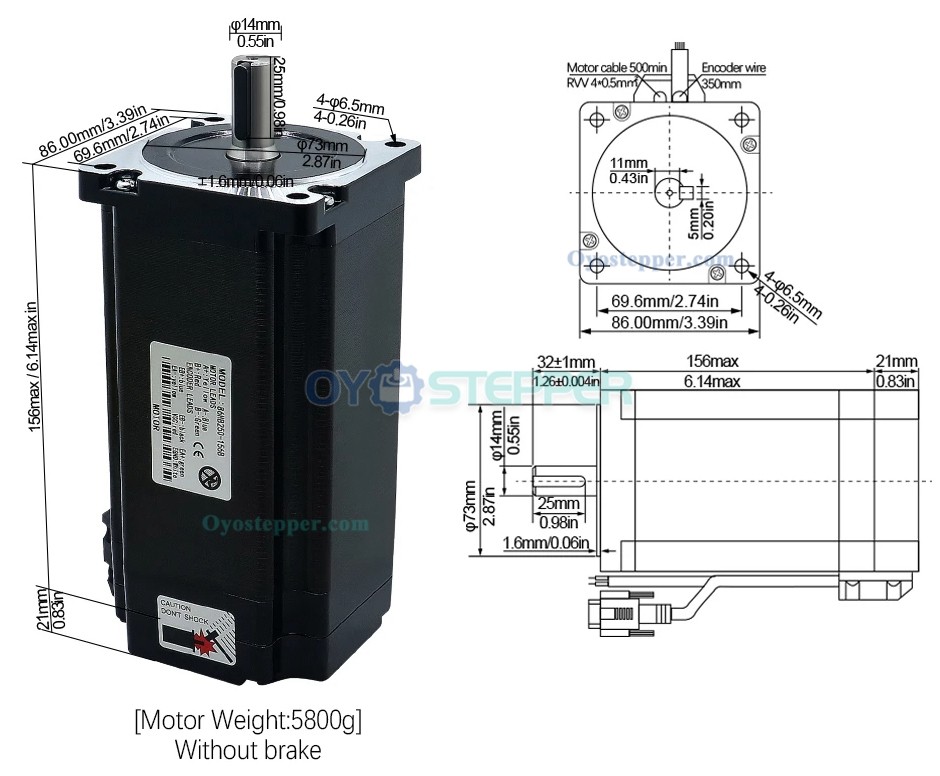

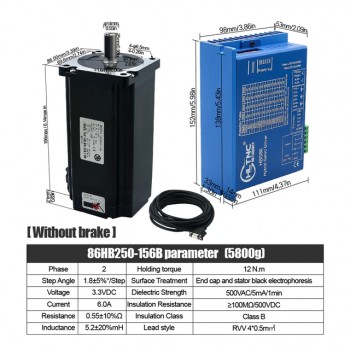

Motor Specification
Motor Nema Size	Nema 34
Body Length(mm)	177
Holding Torque (Ncm)	1200
Holding Torque (oz.in)	1699.78
Inductance(mH)	5.2
Motor Length(mm)	156
Phase Resistance(ohm)	0.55
Rated Current (A)	6
Shaft Diameter(mm)	14
Shaft Length(mm)	32
Shaft Type	Keyway
Single Shaft/Dual Shaft	Single Shaft
Step Angle(°)	1.8
Number Of Phase	2
CNC Kit Specification
No of Axis	Single Axis
Open-loop/Closed-loop	Closed-loop
