Nema Size 14 Stepper Motor Unipolar 1.8 Deg 10Ncm (14.16oz.in) 0.4A 10V 35x35x34mm 6 Wires
Nema Size 14 Stepper Motor Unipolar 1.8 deg 10Ncm (14.16oz.in) 0.4A 10V 35x35x34mm 6 Wires

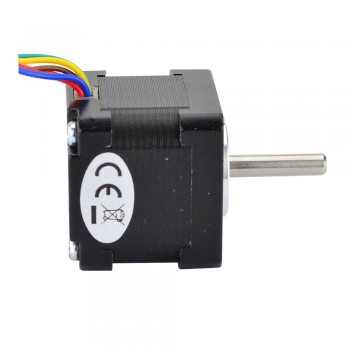

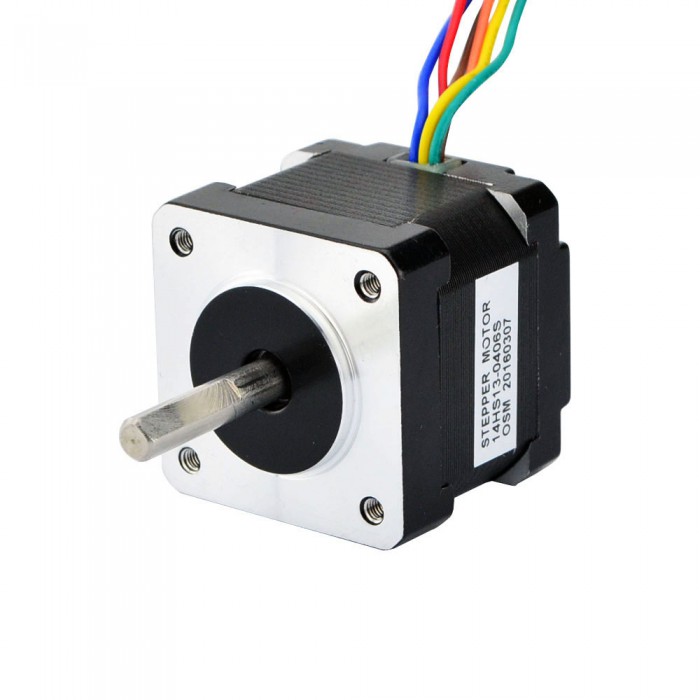

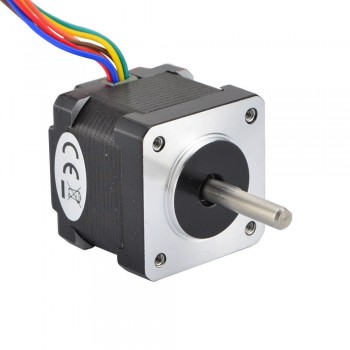

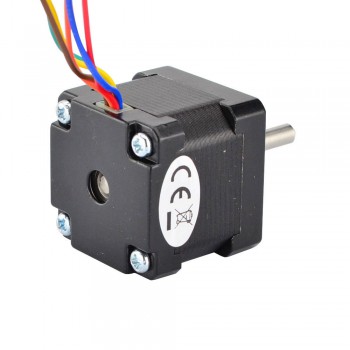

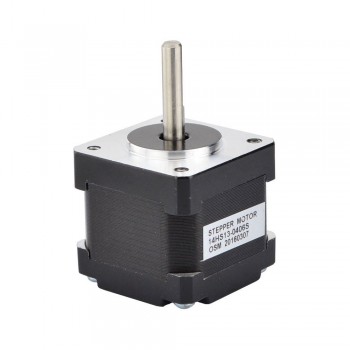

This unipolar Nema 14 stepper motor with step angle 1.8deg and size 35x35x34mm. It has 6 wires, each phase draws 0.4A at 10V, with holding torque 10Ncm (14.2oz.in).
Electrical Specification
Manufacturer Part Number: 14HS13-0406S
Motor Type: Unipolar Stepper
Step Angle: 1.8 deg
Holding Torque: 0.1Nm(14.2oz.in)
Rated Current/phase: 0.4A
Voltage: 10V
Phase Resistance: 25ohms
Inductance: 17mH ± 20%(1KHz)
Physical Specification
Frame Size: 35 x 35mm
Body Length: 34mm
Shaft Diameter: Φ5mm
Shaft Length: 24mm
D-Cut Length: 15mm
Number of Leads: 6
Lead Length: 300mm
Weight(g): 170
Connection
| A+ | O+ | A- | B+ | O- | B- |
| RED | BRW | YEL | BLU | ORG | GRN |
Resources
Motor Datasheet: 14HS13-0406S.pdf
Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!
| Electrical Specification | |
|---|---|
| Bipolar/Unipolar | Unipolar |
| Holding Torque (Ncm) | 10 |
| Holding Torque (oz.in) | 14.2 |
| Inductance(mH) | 17 |
| Phase Resistance(ohm) | 25 |
| Rated Current (A) | 0.4 |
| Step Angle(°) | 1.8 |
| Physical Specification | |
| Body Length(mm) | 34 |
| Frame Size(mm) | 35x35 |
| Single Shaft/Dual Shaft | Single Shaft |
| Shaft Type | D-Cut |
| Shaft Diameter(mm) | 5 |
| Shaft Length(mm) | 24 |
| No. of Lead | 6 |
| Lead Length(mm) | 300 |
| Weight(g) | 170 |
