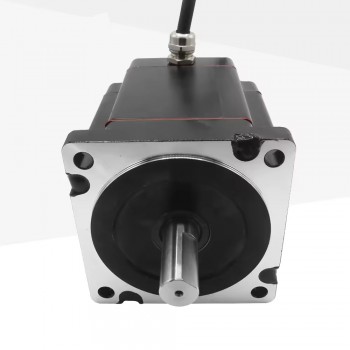

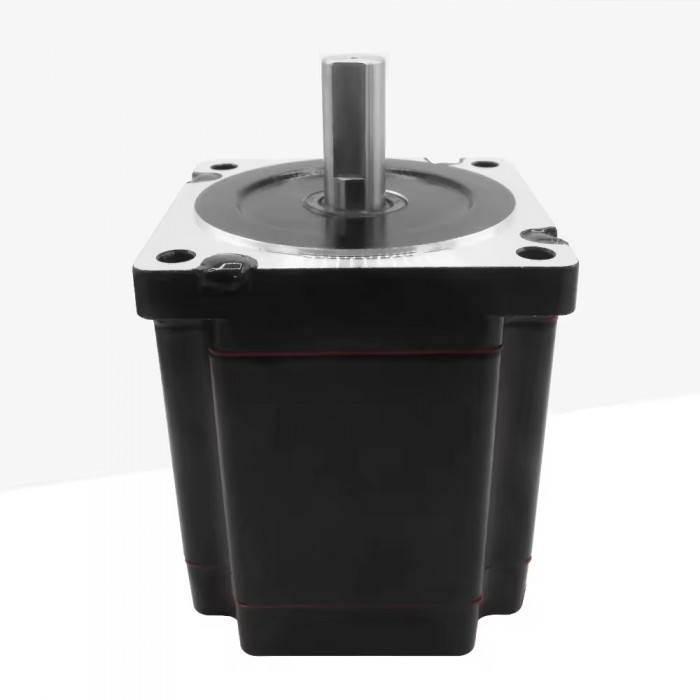

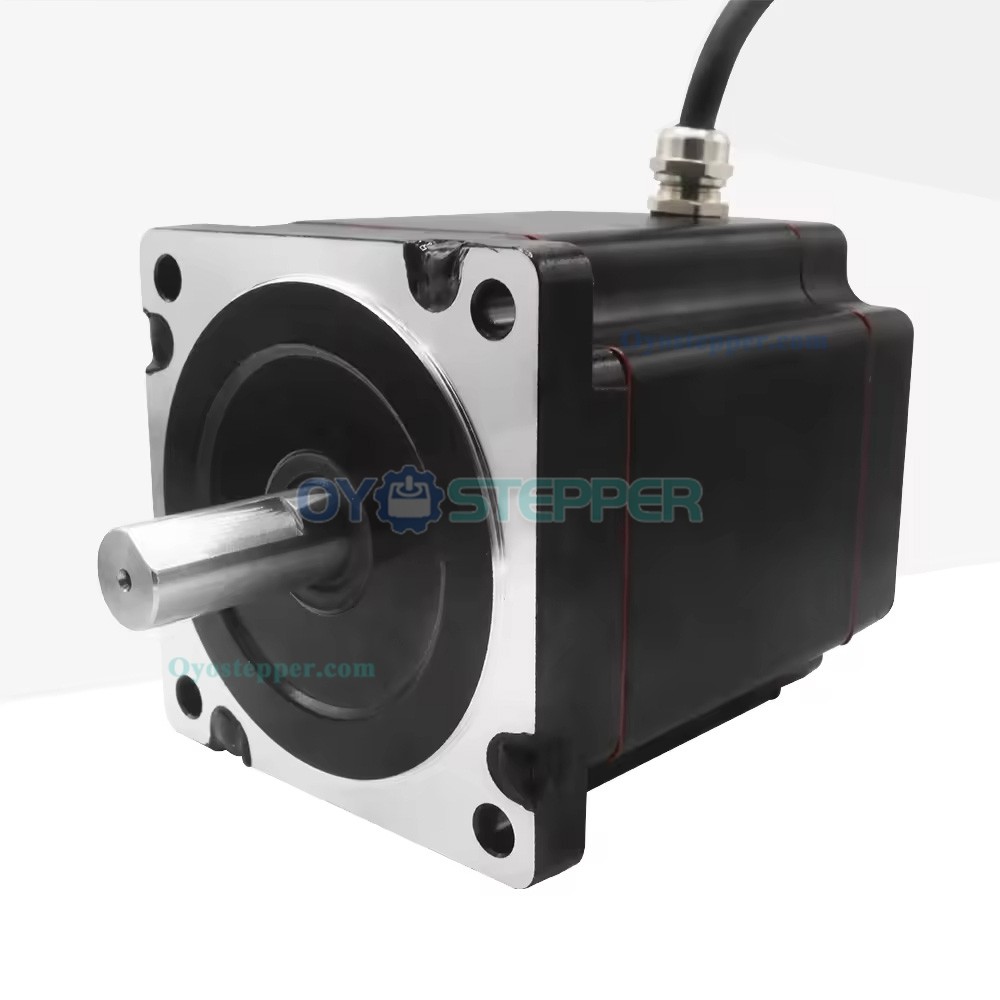

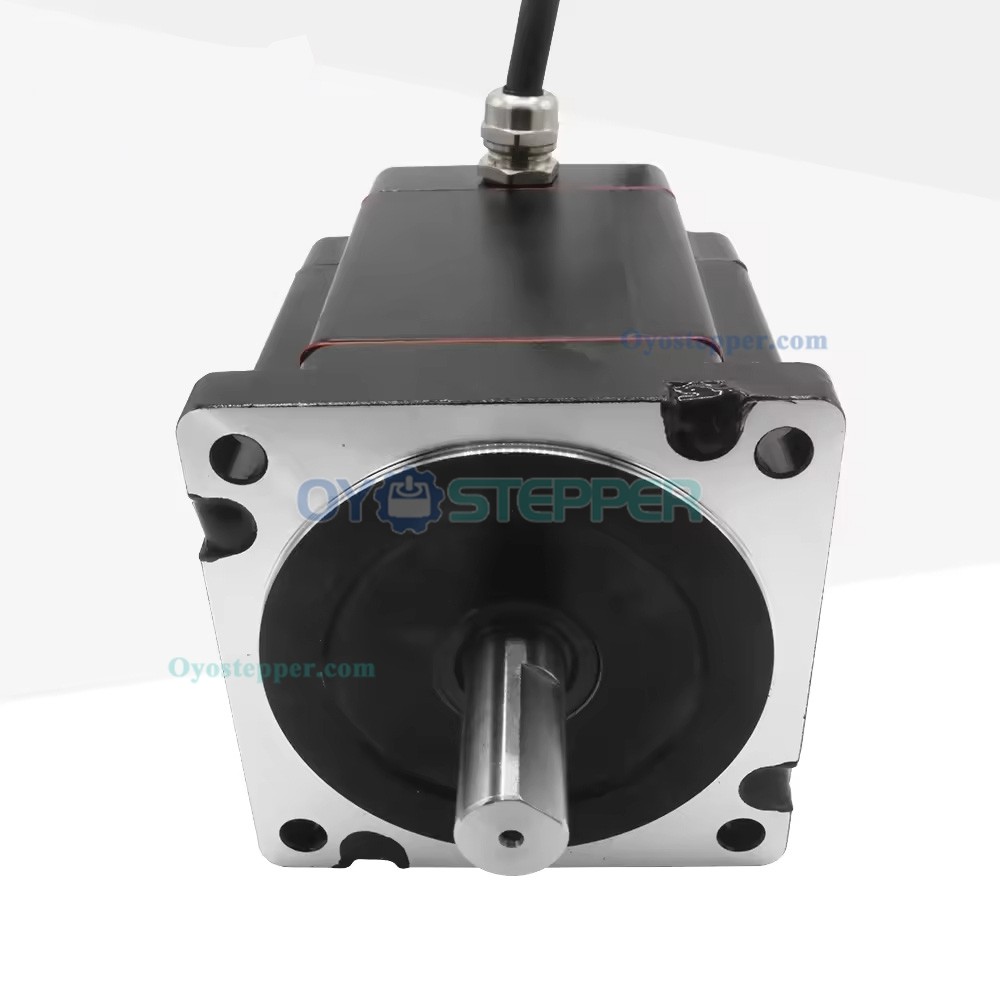

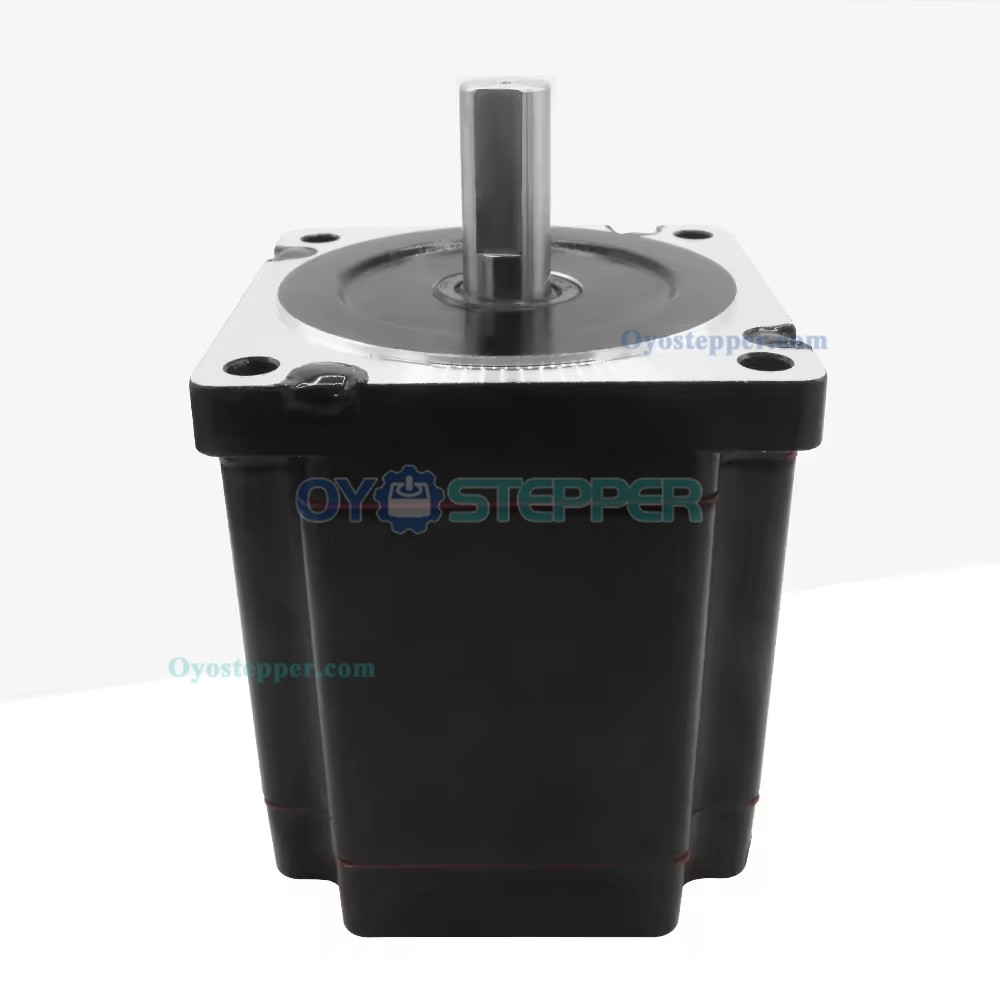

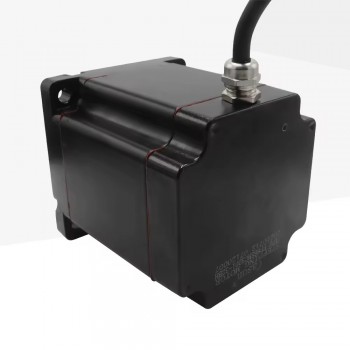

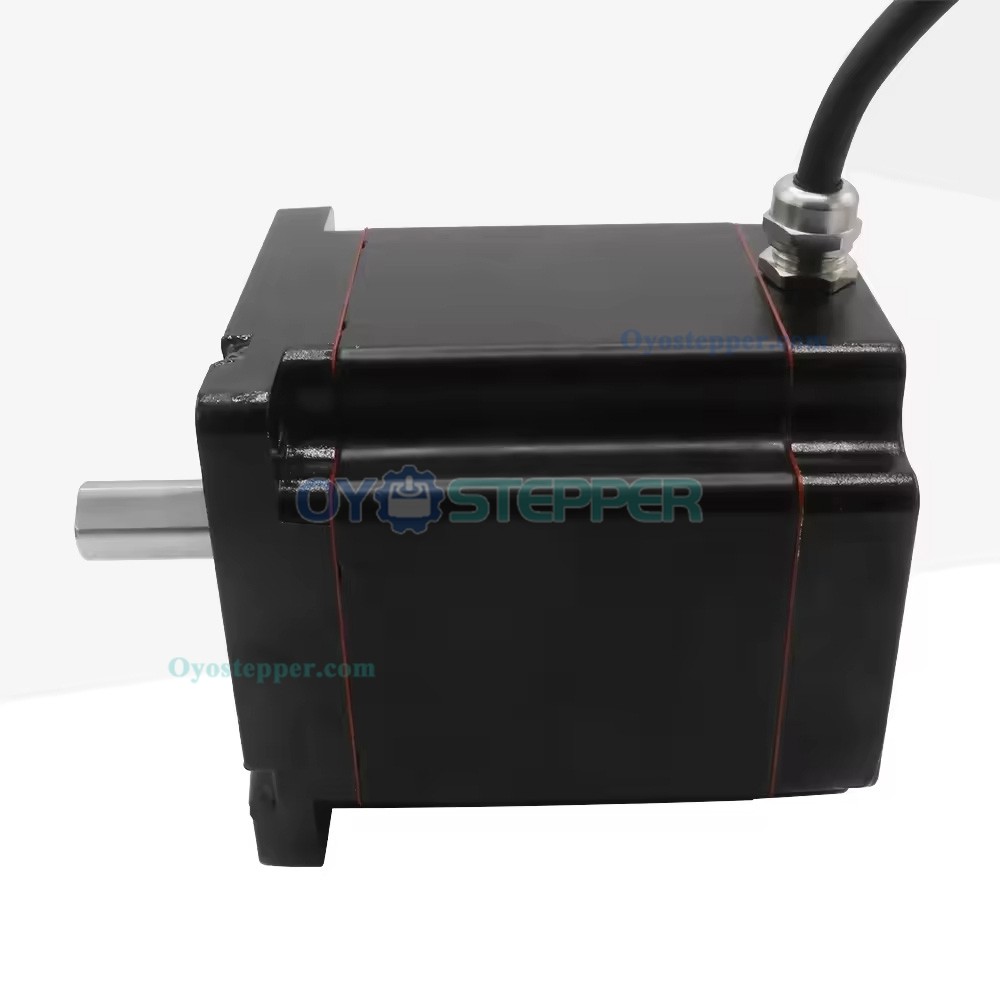

CASUN IP67 NEMA 34 Waterproof Stepper Motor 4N.m 3 Phase 1.2 Degree 86 x 86 mm
- Manuals and Documentation:
Our Price:$75.00
CASUN IP67 NEMA 34 Waterproof Stepper Motor 4N.m 3 Phase 1.2 Degree 86 x 86 mm
Electrical Specifications:
Model:FP86SHC3201-32BH
Step Angle: 1.8°
Operating Voltage: 36–48 V DC
Number of Phase: 2
Rated Current: 4.0 A
Insulation Resistance: 100 MΩ min. (500 V DC)
Resistance per Phase: 0.87 Ω ±10%
Insulation Class: Class B
Inductance per Phase: 7.3 mH ±20%
Rotor Inertia: 1400 g·cm²
Holding Torque: 4.5 N·m
Mass: 2.3 kg
Detent Torque: 0.14 N·m

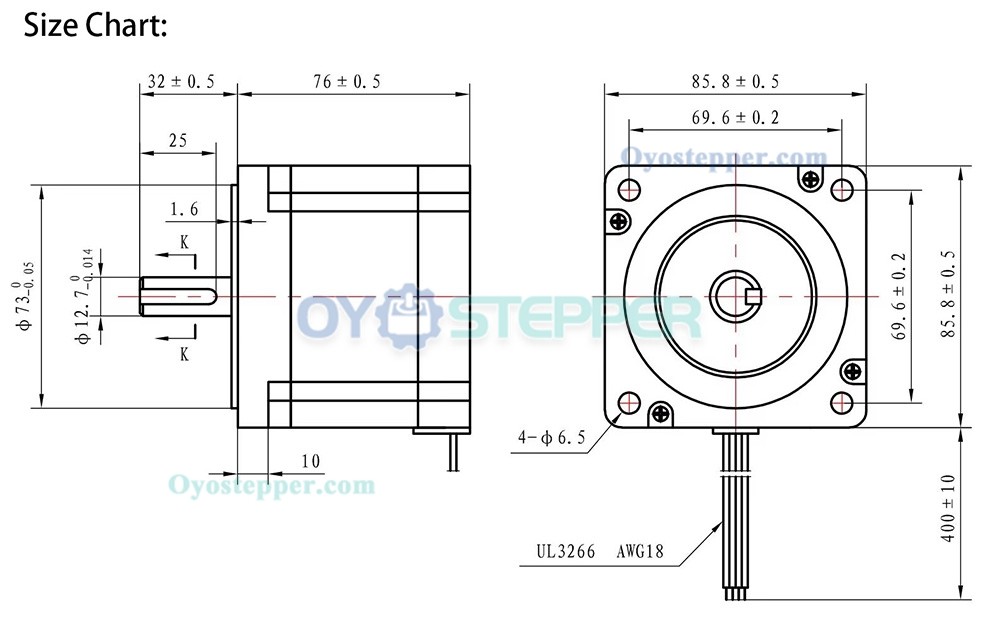

Physical Specification
Frame Size: 86 x 86 mm
Body Length: 76mm
Shaft Diameter: 12.7mm
Shaft Length: 32mm
D-Cut Shaft Length: 25mm
Number of leads:4
Weight:5KG
.jpg "CASUN NEMA 34 Waterproof Stepper Motor 4N.m 3 Phase 1.2 Degree 86 x 86 mm")
.jpg "CASUN NEMA 34 Waterproof Stepper Motor 4N.m 3 Phase 1.2 Degree 86 x 86 mm")
.jpg "CASUN NEMA 34 Waterproof Stepper Motor 4N.m 3 Phase 1.2 Degree 86 x 86 mm")
.jpg "CASUN NEMA 34 Waterproof Stepper Motor 4N.m 3 Phase 1.2 Degree 86 x 86 mm")
.jpg "CASUN NEMA 34 Waterproof Stepper Motor 4N.m 3 Phase 1.2 Degree 86 x 86 mm")
.jpg "CASUN NEMA 34 Waterproof Stepper Motor 4N.m 3 Phase 1.2 Degree 86 x 86 mm")
| Motor Specification | |
|---|---|
| Bipolar/Unipolar | Bipolar |
| Body Length(mm) | 76 |
| Holding Torque (Ncm) | 450 |
| Motor Nema Size | NEMA 34 |
| No. of Lead | 4 |
| Rated Current (A) | 4.0 |
| Shaft Diameter(mm) | 12.7 |
| Shaft Length(mm) | 32 |
| Shaft Type | D-cut |
| Single Shaft/Dual Shaft | Single Shaft |
| Step Angle(°) | 1.8 |
| Number Of Phase | 2 |
| Waterproof Level | IP67 |
