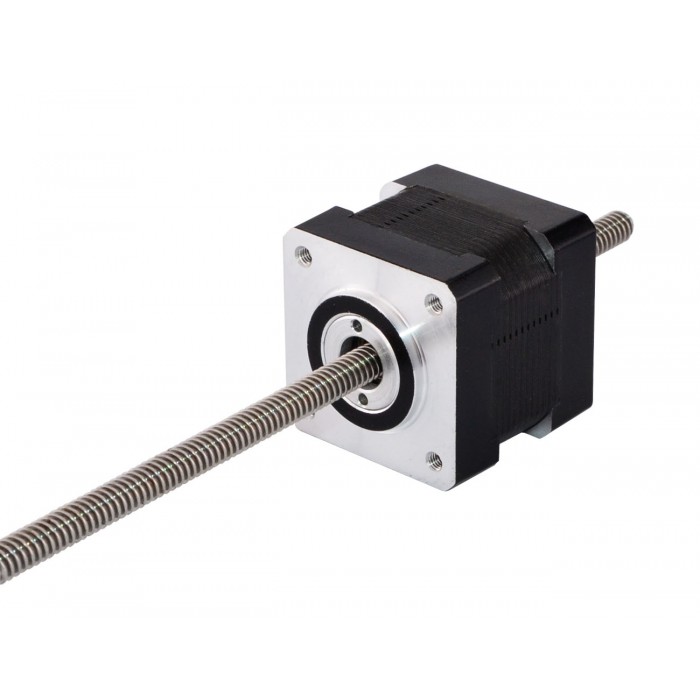

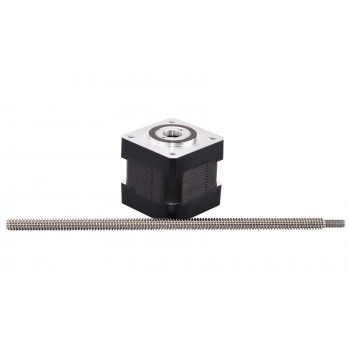

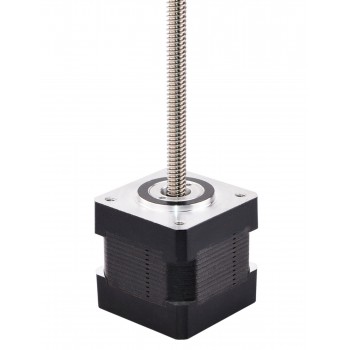

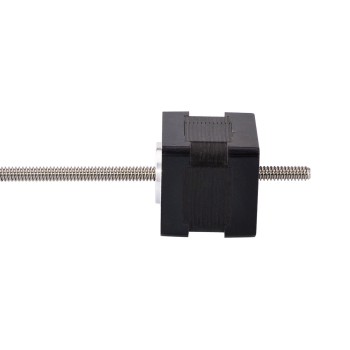

Nema 14 Non-captive Precision Linear Actuator Bipolar 1.8 Deg 0.57A 5V Lead Revolution 4.877mm/0.192" Lead Screw 150mm
- 6% OFF on Total Order Amount!
- Enjoy Discount at Checkout!
- Valid Till December 3th, 2024
- Note:No coupon code needed, please place order directly!
This model is almost exactly same as Haydon Kerk 35000 series size 14 non-captive stepper motor linear actuator. The motor part is 35mm body 1.8 degree 0.57A Nema 14 stepper motor, and it works with a 5.54mm (0.2181") diameter 150mm (5.9055") length lead screw, the linear travel is 4.877mm(0.192") per revolution.
Electrical Specification
Manufacturer Part Number: 14LS13-0574Q-150N
Motor Type: Non-captive Linear Stepper
Step Angle: 1.8°
Minimal Thrust: 70N (300pps)
Rated Current/phase: 0.57A
Phase Resistance: 8.8ohms
Voltage: 5V
Inductance: 13mH±20%(1KHz)
Physical Specification
Frame Size: 35 x 35mm
Body Length: 35mm

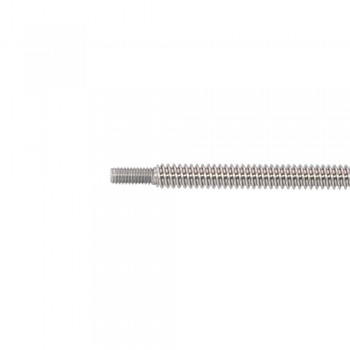

Lead Screw Length: 150mm(5.9055")
Lead Screw Diameter: Φ5.54mm(0.2181")
Lead/Step: 0.024384mm(0.00096" )
Lead Travel/Revolution: 4.877mm(0.192")
Number of Leads: 4
Lead Length: 300mm
Weight : 162g
Connection
|
A+
|
A-
|
B+
|
B-
|
|
Red
|
Red/White
|
Green/White
|
Green
|
Resources
Full Datasheet: 14LS13-0574Q-150N.pdf
Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!
| Electrical Specification | |
|---|---|
| Bipolar/Unipolar | Bipolar |
| Inductance(mH) | 13 |
| Minimal Thrust(N) | 70 |
| Motor Type | Non-Captive |
| Phase Resistance(ohm) | 8.8 |
| Rated Current (A) | 0.57 |
| Step Angle(°) | 1.8 |
| Physical Specification | |
| Body Length(mm) | 34.5 |
| Lead Screw Diameter(mm) | 5.54 |
| Lead Screw Length(mm) | 150 |
| Lead Revolution(mm) | 4.8768 |
| Linear Travel / Step(mm) | 0.024384 |
| No. of Lead | 4 |
| Lead Length(mm) | 300 |
| Frame Size(mm) | Nema 14 (35 x 35) |
