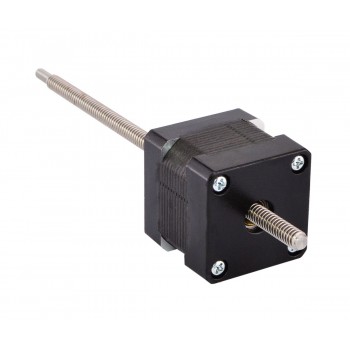

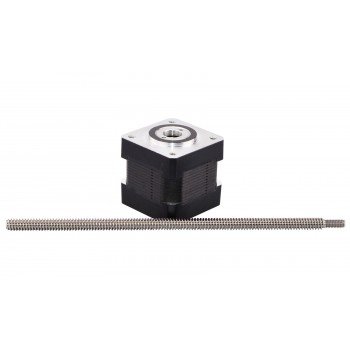

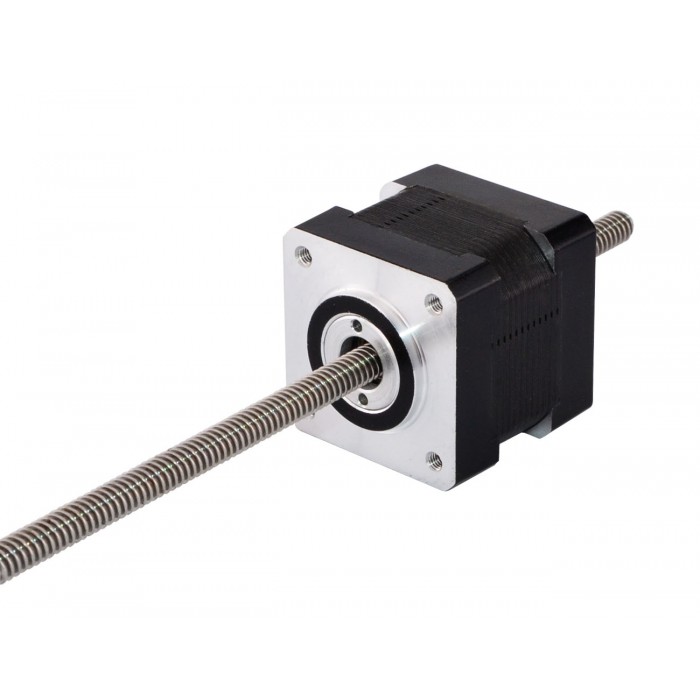

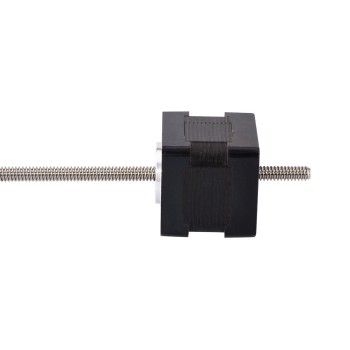

Nema 14 Non-captive 35mm Stack 0.57A Lead 2.438mm/0.096" Length 150mm

NO.:SKU:14LS13-0574J-150N
Review: Post a review
Latest price:$80.34
Buy It Now:$61.80
Quantity:- +

Buy More, Save more!
2 - 9 10 - 39 40 - 99 100 - Max
$59.86 $57.93 $56.00 $54.07
Add To Cart

This model is almost exactly same as Haydon Kerk 35000 series size 14 non-captive stepper motor linear actuator. The motor part is 35mm body 1.8 degree 0.57A Nema 14 stepper motor, and it works with a 5.54mm (0.2181") diameter 150mm (5.9055") length lead screw, the linear travel is 2.438mm(0.096") per revolution.

Electrical Specification

  • Manufacturer Part Number: 14LS13-0574J-150N
  • Motor Type: Non-captive Linear Stepper
  • Step Angle: 1.8°
  • Minimal Thrust: 140N (300pps)
  • Rated Current/phase: 0.57A
  • Phase Resistance: 8.8ohms
  • Voltage: 5V
  • Inductance: 13mH±20%(1KHz)

Physical Specification

  • Frame Size: 35 x 35mm
  • Body Length: 35mm
  • Lead Screw Length: 150mm(5.9055")
  • Lead Screw Diameter: Φ5.54mm(0.2181")
  • Lead/Step: 0.012192mm(0.00048" )
  • Lead Travel/Revolution: 2.438mm(0.096")
  • Number of Leads: 4
  • Lead Length: 300mm
  • Weight : 162g

Connection

A+
A-
B+
B-
Red
Red/White
Green/White
Green



Resources

Wholesale stepper motors and wholesale stepper motor drivers online with top quality and competitive price at Oyostepper.com!

Prev: Nema 14 Non-captive 35mm Stack 0.57A Lead 1.27mm/0.05" Length 150mm
Next: Nema 14 Non-captive 35mm Stack 0.57A Lead 4.877mm/0.192" Length 150mm
Electrical Specification
Bipolar/Unipolar Bipolar
Inductance(mH) 13
Minimal Thrust(N) 140
Motor Type Non-Captive
Phase Resistance(ohm) 8.8
Rated Current (A) 0.57
Step Angle(°) 1.8
Physical Specification
Body Length(mm) 34.5
Frame Size(mm) 35x35
Lead Screw Diameter(mm) 5.54
Lead Screw Length(mm) 150
Lead Revolution(mm) 2.4384
Linear Travel / Step(mm) 0.012192
No. of Lead 4
Lead Length(mm) 300
