Nema 14 Non-captive Stepper Motor Linear Actuator 48mm Stack 0.91A 5V Lead Revolution 1.27mm/0.05" Lead Screw 250mm

Nema 14 Non-captive Stepper Motor Linear Actuator 48mm Stack 0.91A 5V Lead Revolution 1.27mm/0.05" Lead Screw 250mm
NO.:14LS17-09149-250N
Post a review
Special Offer in May 2024:
  • 6% OFF on Total Order Amount!
  • Enjoy Discount at Checkout!
  • Valid Till May 31st, 2024
  • Note:No coupon code needed, please place order directly!
Our Price:$99.07
Quantity:- +

Bulk Price:
Qty.Range(unit) Price(unit) Discount
5 $94.12 5%
10 $92.14 7%
50 $89.16 10%
100 $86.19 13%
Add To Cart

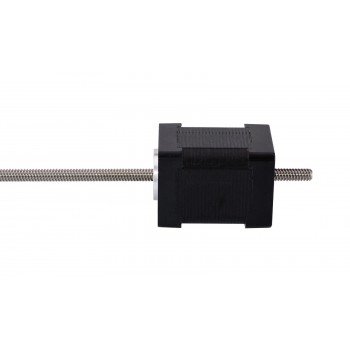

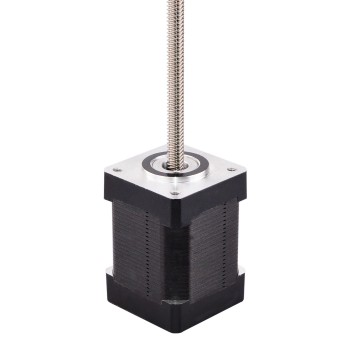

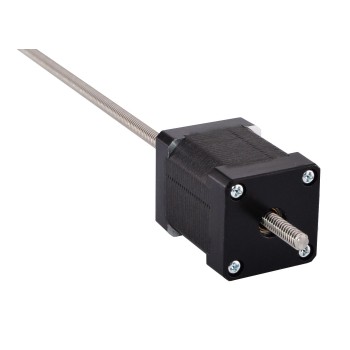

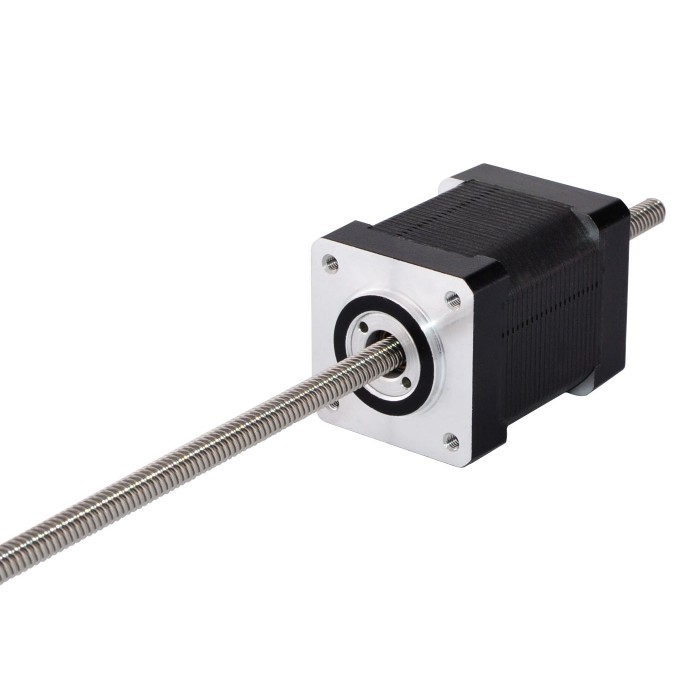

This model is almost exactly same as Haydon Kerk 35000 series size 14 double stack non-captive stepper motor linear actuator. The motor part is 48mm body 1.8 degree 0.91A Nema 14 stepper motor, and it works with a 6.35mm (0.25") diameter 250mm (9.8425") length lead screw, the linear travel is 1.27mm (0.05") per revolution.

Electrical Specification

  • Manufacturer Part Number: 14LS17-09149-250N
  • Motor Type: Non-captive Linear Stepper
  • Step Angle: 1.8°
  • Minimal Thrust: 224N (300pps)
  • Rated Current/phase: 0.91A
  • Phase Resistance: 5.5ohms
  • Voltage: 5V
  • Inductance: 7.63mH±20%(1KHz)

Physical Specification

  • Frame Size: 35 x 35mm
  • Body Length: 48mm
  • Lead Screw Length: 250mm(9.8425")
  • Lead Screw Diameter: Φ6.35mm(0.25")
  • Lead/Step: 0.00635mm(0.00025" )
  • Lead Travel/Revolution: 1.27mm(0.05")
  • Number of Leads: 4
  • Lead Length: 300mm
  • Weight : 240g

Connection

A+
A-
B+
B-
Red
Red/White
Green/White
Green



Resources

Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!

Prev: Nema 14 External Stepper Motor Linear Actuator Bipolar 1.8 Deg 0.57A 5V Lead Revolution 4.877mm/0.192" Lead Screw 150mm
Next: Nema 14 Non-captive Linear Motor Actuator Bipolar 48mm Stack 0.91A 5V Lead Revolution 2.4384mm/0.096" Lead Screw 250mm
Electrical Specification
Bipolar/Unipolar Bipolar
Inductance(mH) 7.63
Minimal Thrust(N) 224
Motor Type Non-Captive
Phase Resistance(ohm) 5.5
Rated Current (A) 0.91
Step Angle(°) 1.8
Physical Specification
Body Length(mm) 48
Lead Screw Diameter(mm) 6.35
Lead Screw Length(mm) 250
Lead Revolution(mm) 1.27
Linear Travel / Step(mm) 0.00635
No. of Lead 4
Lead Length(mm) 300
Frame Size(mm) Nema 14 (35 x 35)
