Nema 17 External Precision Stepper Motor Linear Actuator Bipolar 1.8 Deg 1.5A 2.33V Lead Revolution 0.794mm/0.031" Lead Screw 150mm

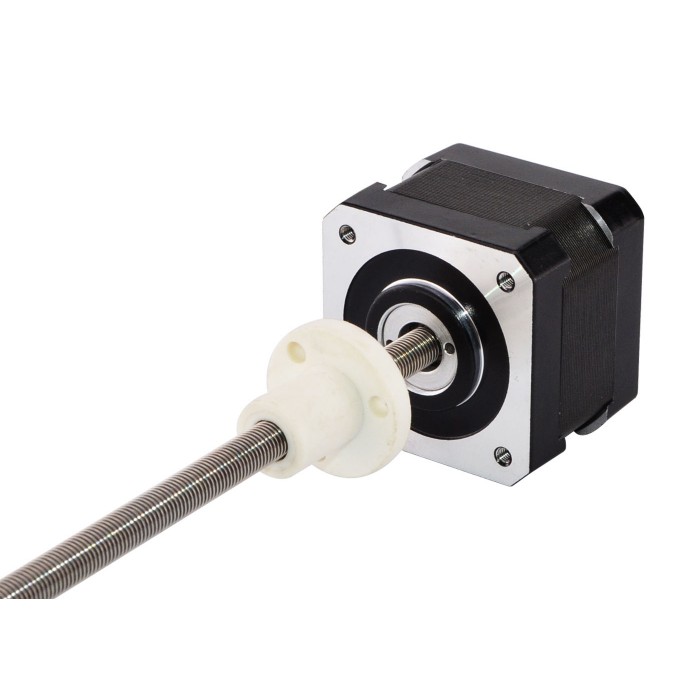

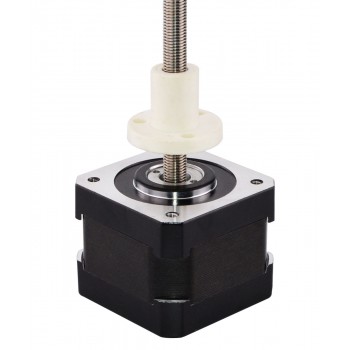

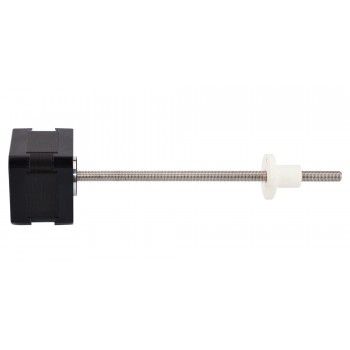

The motor part is 34mm body 1.8 degree 1.5A Nema 17 stepper motor, and it has integrated with a 6.35mm (0.25") diameter 150mm (5.9055") length lead screw and a POM screw nut, the linear travel is 0.794mm (0.03125") per revolution.
Electrical Specification
Manufacturer Part Number: 17LS13-1504P-150E
Motor Type: External Linear Stepper
Step Angle: 1.8°
Minimal Thrust: 434N (300pps)
Rated Current/phase: 1.5A
Phase Resistance: 1.56ohms
Voltage: 2.33V
Inductance: 1.9mH±20%(1KHz)
Physical Specification
Frame Size: 42 x 42mm
Body Length: 34mm
Lead Screw Length: 150mm(5.9055")

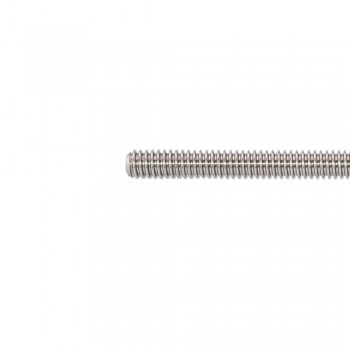

Lead Screw Diameter: Φ6.35mm (0.25")
Lead/Step: 0.00396875mm(0.00015625" )
Lead Travel/Revolution: 0.794mm(0.03125")
Number of Leads: 4
Lead Length: 300mm
Weight : 241g

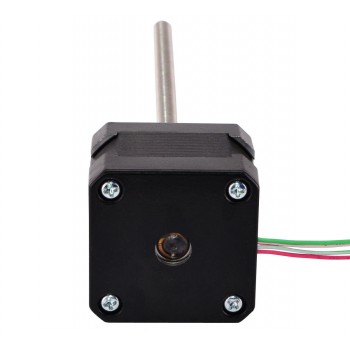

Connection
|
A+
|
A-
|
B+
|
B-
|
|
Red
|
Red/White
|
Green/White
|
Green
|
Resources
Full Datasheet: 17LS13-1504P-150E.pdf
Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!
| Electrical Specification | |
|---|---|
| Bipolar/Unipolar | Bipolar |
| Inductance(mH) | 1.9 |
| Minimal Thrust(N) | 434 |
| Motor Type | External |
| Phase Resistance(ohm) | 1.56 |
| Rated Current (A) | 1.5 |
| Step Angle(°) | 1.8 |
| Physical Specification | |
| Body Length(mm) | 33.8 |
| Lead Screw Diameter(mm) | 6.35 |
| Lead Screw Length(mm) | 150 |
| Lead Revolution(mm) | 0.79375 |
| Linear Travel / Step(mm) | 0.00396875 |
| No. of Lead | 4 |
| Lead Length(mm) | 300 |
| Frame Size(mm) | Nema 17 (42 x 42) |
