1 Axis Closed Loop Stepper Motor CNC Kit 4.5Nm(637oz.in) Nema 34 Motor & Driver

1 Axis Closed Loop Stepper Motor CNC Kit 4.5Nm(637oz.in) Nema 34 Motor & Driver
NO.:1-CL86-34HS31
Post a review
Our Price:$138.44
Quantity:- +

Bulk Price:
Qty.Range(unit) Price(unit) Discount
2 $131.52 5%
5 $128.75 7%
10 $124.60 10%
50 $120.44 13%
Add To Cart

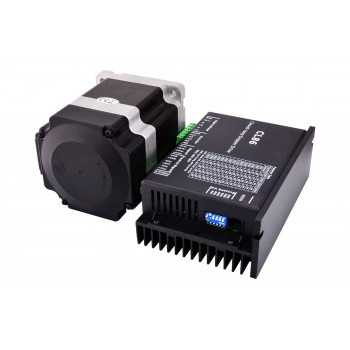

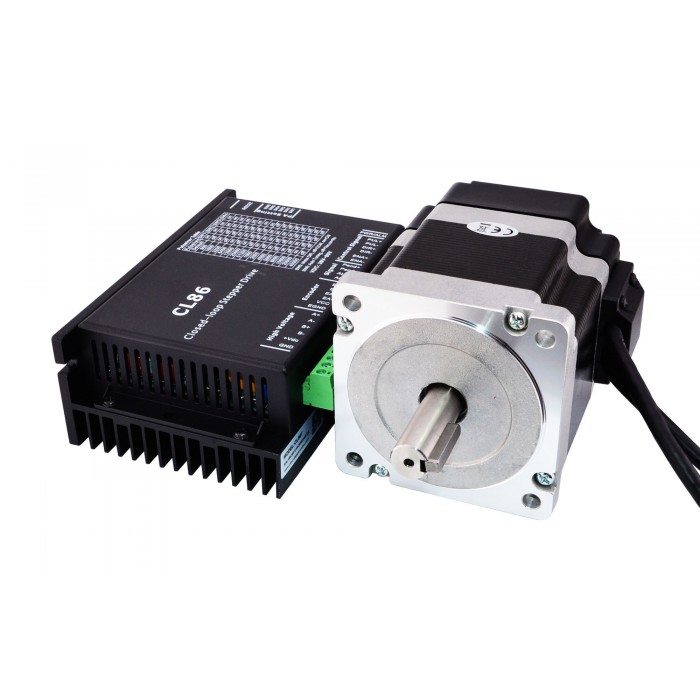

This CNC kit included:

1 x Closed Loop Stepper Driver 0~8.2A 24~80VDC for Nema 34 Stepper Motor

1 x 4.5Nm[637oz.in] Nema 34 Closed Loop Stepper Motor w/ Encoder 1000CPR



Motor Specification

Manufacturer Part Number: 34HS31-5504D-E1000

Motor Type: Bipolar Stepper

Step Angle: 1.8 deg

Holding Torque: 4.5Nm(637oz.in)

Rated Current/phase: 5.5A

Voltage: 2.2V

Phase Resistance: 0.4ohms

Inductance: 3.5mH ± 20%(1KHz)

Frame Size: 86 x 86mm

Body Length: 80mm

Shaft Diameter: Φ14mm

Shaft Length: 35mm

Key-way Length: 25mm

Number of Leads: 4

Lead Length: 500mm

Weight: 1.2kg



Connection

A+
A-
B+
B-
Black
Green
Red
Blue



Driver Specification

Closed-loop, eliminates loss of synchronization

Broader operating range – higher torque and higher speed

Reduced motor heating and more efficient

Do not need a high torque margin

No Tuning and always stable

Quick response, no delay and almost no settle time

High torque at starting and low speed, high stiffness at standstill

Offer servo-like performance at a much lower cost



Resources

Motor Datasheet: 34HS31-5504D-E1000.pdf

Driver Manual: CL86.pdf



Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!

Prev: 1 Axis Closed Loop Stepper Motor CNC Kit 13.0Nm(1841oz.in) High Torque Nema 34 Motor & Driver
Next: 3 Axis CNC Stepper Motor Router Kit 3.0Nm(425oz.in) 1.8 Deg Nema 23 Stepper Motor & Driver
Motor Specification
Step Angle(°) 1.8 / 1.8
Body Length(mm) 80
Holding Torque (Ncm) 450
Holding Torque (oz.in) 637.3
Inductance(mH) 3.5
Lead Length(mm) 500
Motor Nema Size Nema 34
No. of Lead 4
Phase Resistance(ohm) 0.4
Rated Current (A) 5.5
Shaft Diameter(mm) 14
Shaft Length(mm) 37
Electrical Specification
Output Frequency(MHz) ≤1
Stepper Driver Specification
Driving Voltage(V) 24 - 80
Output Current(A) 0 - 8.2
Microstep(Steps/rev.) 400 - 51200
Max. Pulse Input(kHZ) 200
Pulse Width(μs) 2.5
Encoder Specification
Rated Voltage(V) 5
Output Current(mA) 55
Resolution(CPR) 1000
Output Signal Channels 2 Channels
Running Speed(rpm) ≤5000
IP Protection IP20
Physical Specification
Weight(g) 3500
