3 Axis TB6560 CNC Kit 1.9Nm(269oz.in) Nema 23 Stepper Motor & Driver

NO.:SKU:3-TB6560-23HS30
Review: Post a review
Latest price:$144.31
Buy It Now:$111.00
Quantity:- +

Buy More, Save more!
2 - 9 10 - 39 40 - 99 100 - Max
$104.84 $98.68 $92.51 $86.34
Add To Cart

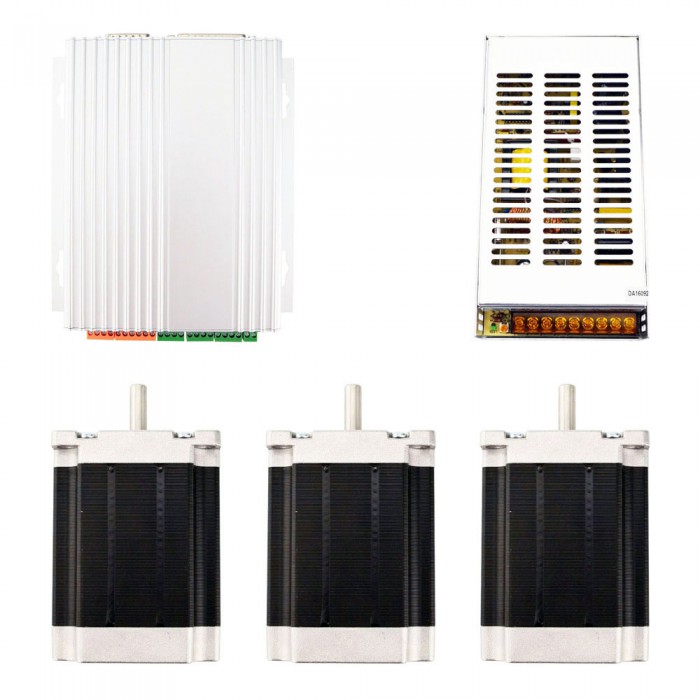

This CNC kit included:

  • 1 x 3 Axis TB6560 CNC Stepper Motor Driver Board
  • 3 x 1.9Nm (269oz.in) of Nema 23 Stepper Motor
  • 1 x 201W 24V 8.3A 115/230V Switching Power Supply
  • 1 x DB25 Parallel Cable & Manual CD

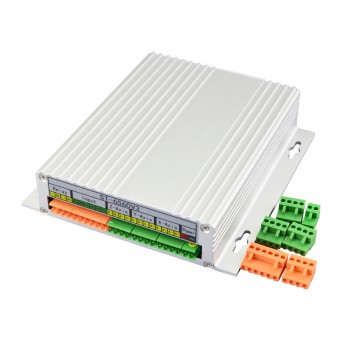

3 Axis TB6560 CNC Driver Board

  • Toshiba TB6560AHQ chip - High power, maximum current 3.5A
  • Resolution 1, 1/2, 1/8, 1/16 micro stepping output
  • Working voltage DC12-DC30V, rated voltage 24V
  • Adjustable current with 100%, 75%, 50%, 20% of full current by on-board switch.
  • Half current function when no signal to prevent motor heating.
  • Build with a 227V 10A Relay.
  • Manual Control circuit included.
  • Overload, over-current and over-temperature safety.
  • Protect the computer by using isolating power(1000V DCDC) and optoelectronic coupler.
  • Supports most parallel software MACH3, KCAM4, EMC2 etc.
  • Fixed in Aluminum box, better cooling function than fan and safer protection for board circuit.

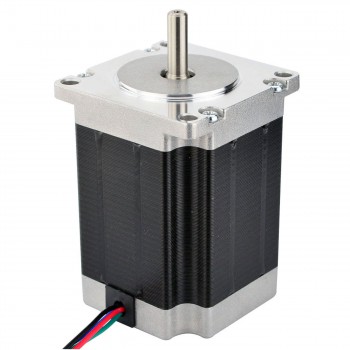

Stepper Motor

  • Manufacturer Part Number: 23HS30-2804S
  • Motor Type: Bipolar Stepper
  • Step Angle: 1.8 deg
  • Holding Torque: 1.9Nm (269oz.in)
  • Rated Current/phase: 2.8A
  • Voltage: 3.2V
  • Phase Resistance: 1.13ohms
  • Inductance: 5.4mH ± 20%(1KHz)
  • Frame Size: 57 x 57mm
  • Body Length: 76mm
  • Shaft Diameter: Φ6.35mm
  • Shaft Length: 21mm
  • Number of Leads: 4
  • Lead Length: 500mm
  • Weight: 1100g

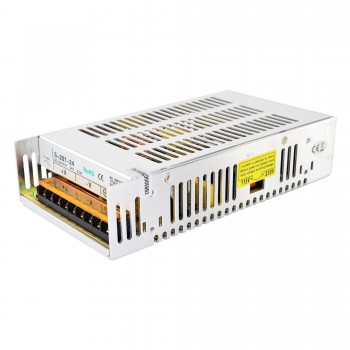

Switching Power Supply

  • 24V DC 8.3A output
  • AC input voltage range: 93~132V/176~264VAC
  • 115V/230V AC selected by switch
  • High efficiency low cost
  • Free air cooling convection
  • Low output ripple and yawp
  • Over current, over voltage, short circuit and overheat protections
  • 215*115*50mm (L*W*H)

Resources

Wholesale stepper motors and wholesale stepper motor drivers online with top quality and competitive price at Oyostepper.com!

Prev: 3 Axis TB6560 CNC Kit 1.26Nm(178.5oz.in) Nema 23 Stepper Motor & Driver
Next: 4 Axis CNC Router Kit 3.0Nm(425oz.in) Nema 23 Stepper Motor & Driver
Motor Specification
Body Length(mm) 76
Holding Torque (Ncm) 189
Holding Torque (oz.in) 267.6
Inductance(mH) 5.4
Lead Length(mm) 500
Motor Nema Size Nema 23
No. of Lead 4
Phase Resistance(ohm) 1.13
Rated Current (A) 2.8
Shaft Diameter(mm) 6.35
Shaft Length(mm) 21
Step Angle(°) 1.8
Stepper Driver Specification
Driving Voltage(V) 12 - 30
Output Current(A) 0.7 - 3.5
Microstep(Steps/rev.) 200 - 3200
Max. Pulse Input(kHZ) 40
Physical Specification
Weight(g) 5250
