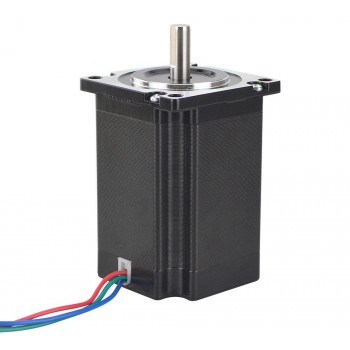

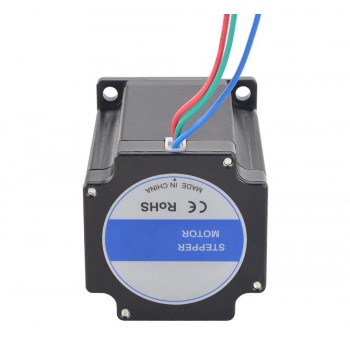

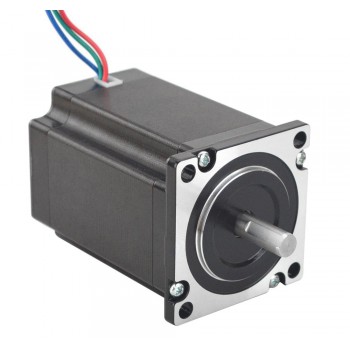

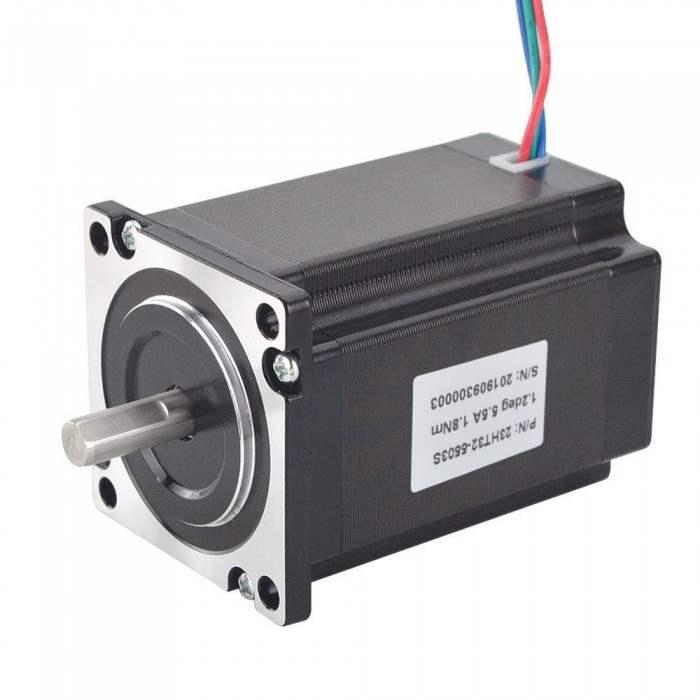

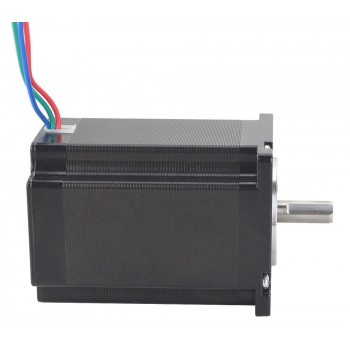

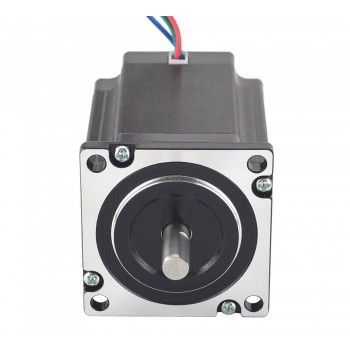

P Series Nema 23 57 x 57 mm 1.2 Deg 3-Phase Stepper Motor 5.5A 1.8Nm(254.95oz.in) D-Cut Shaft 3 Wires
Halloween Special Offer 2024:
- All Treats No Tricks
- 6% OFF on Total Order Amount!
- Enjoy Discount at Checkout!
- Valid Till November 4th, 2024
- Note:No coupon code needed, please place order directly!
Our Price:$37.51
P Series Nema 23 57 x 57 mm 1.2 Deg 3-Phase Stepper Motor 5.5A 1.8Nm(254.95oz.in) D-Cut Shaft 3 Wires
Electrical Specification
Manufacturer Part Number: 23HT32-5503S
Number of phase: 3
Step Angle: 1.2 deg
Holding Torque: 1.8 Nm(254.95 oz.in)
Rated Current/phase: 5.5 A
Phase Resistance: 0.7 ohms
Inductance: 1.8 mH ± 20%(1KHz)
Physical Specification
Frame Size: 57 x 57 mm
Body Length: 80.5 mm
Shaft Diameter: Φ8 mm
Shaft Length: 21 mm
D-Cut Shaft Length: 15 mm
Lead Length: 500 mm
Weight: 1.3 kg
Connection
U
|
V
|
W
|
GREEN
|
RED
|
BLUE
|
Resources
Full Datasheet: 23HT32-5503S.pdf
Torque Curve: 23HT32-5503S Torque Curve.pdf
Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!
Electrical Specification | |
---|---|
Holding Torque (Ncm) | 180 |
Holding Torque (oz.in) | 254.95 |
Inductance(mH) | 1.8 |
Phase Resistance(ohm) | 0.7 |
Rated Current (A) | 5.5 |
Step Angle(°) | 1.2 |
No. of Phase | 3 |
Physical Specification | |
Body Length(mm) | 80.5 |
Frame Size(mm) | 57*57 |
Lead Length(mm) | 500 |
Shaft Diameter(mm) | 8 |
Shaft Length(mm) | 21 |
Weight(g) | 1300 |
- Connectors: Molex, Harwin, Tyco/AMP, JST etc.
- Lead wires & cables: Special lengths, Protective hose
- Shaft: Round, D-Cut, Cross drilled, Key-Way, Thread or Hollow
- Winding: Resistance, Inductance, Rated Current, etc.
