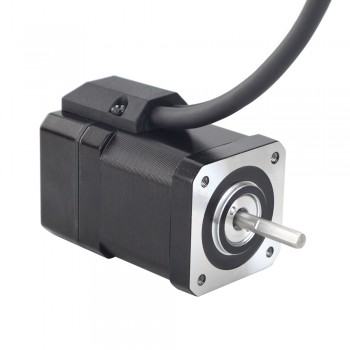

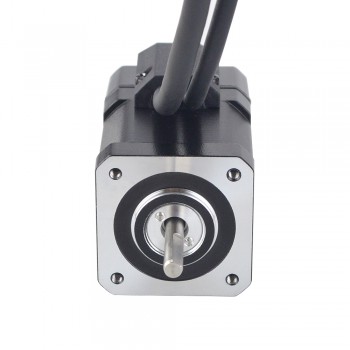

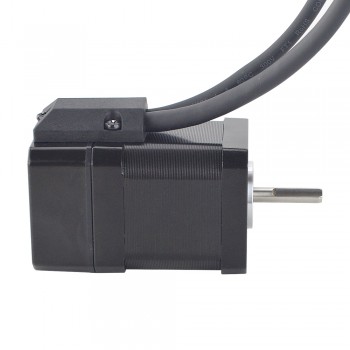

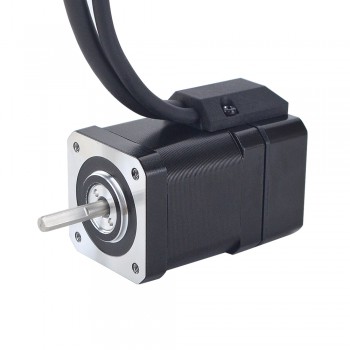

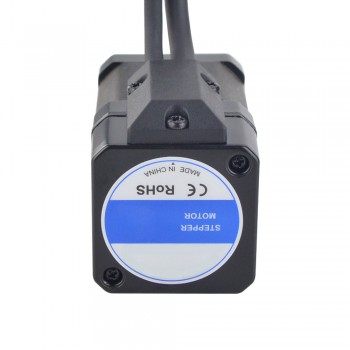

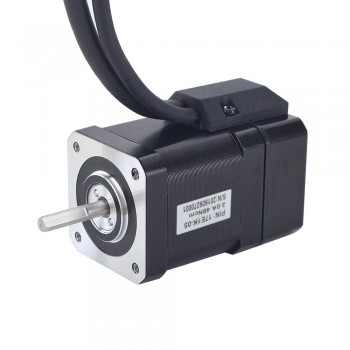

Nema 17 Closed Loop Stepper Motor P Series 1.8 Deg 48Ncm 2.0 Ain withEncoder 1000CPR 2 Phase

Nema 17 Closed Loop Stepper Motor P Series 1.8 Deg 48Ncm 2.0 Ain withEncoder 1000CPR 2 Phase
NO.:17E1K-05
Post a review
Special Offer in April 2024:
  • 6% OFF on Total Order Amount!
  • Enjoy Discount at Checkout!
  • Valid Till April 20th, 2024
  • Note:No coupon code needed, please place order directly!
Our Price:$48.11
Quantity:- +

Bulk Price:
Qty.Range(unit) Price(unit) Discount
5 $45.70 5%
10 $44.74 7%
50 $43.30 10%
100 $41.86 13%
Add To Cart

Electrical Specification

  • Manufacturer Part Number: 17E1K-05
  • Number of phase: 2
  • Step Angle: 1.8 deg
  • Holding Torque: 48 Ncm(67.99 oz.in)
  • Rated Current/phase: 2.0 A
  • Phase Resistance: 1.35 ohms
  • Inductance: 2.8 mH ± 20%(1KHz)

Physical Specification

  • Frame Size: 42 x 42 mm
  • Body Length: 48 mm
  • Shaft Diameter: Φ5 mm
  • Shaft Length: 24 mm
  • D-Cut Shaft Length: 15 mm
  • Lead Length: 270 mm
  • Weight: 0.36 kg

Encode Control(1000CPR)

  • 3--GND
  • 2--+5VCC
  • 13--EA-
  • 1--EA+
  • 12--EB-
  • 11--EB+

Connection

A+
A-
B+
B-
White
Green
Blue
Black



Resources

Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!

Prev: P Series Nema 17 Closed Loop Stepper Motor 1.8 Deg 48Ncm 2A 2 Phase with Electromagnetic Brake
Next: Nema 17 Closed Loop Stepper Motor P Series 1.8 Deg 72Ncm 2.0 A 2 Phase with Electromagnetic Brake
Motor Specification
Holding Torque (Ncm) 48
Holding Torque (oz.in) 67.99
Inductance(mH) 2.8
Lead Length(mm) 270
Motor Nema Size Nema 17
Phase Resistance(ohm) 1.35
Rated Current (A) 2.0
Shaft Diameter(mm) 5
Shaft Length(mm) 24
Step Angle(°) 1.8
Number Of Phase 2
Encoder Specification
Resolution(CPR) 1000
Output Signal Channels 2 Channels
