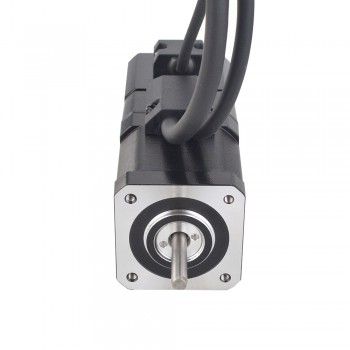

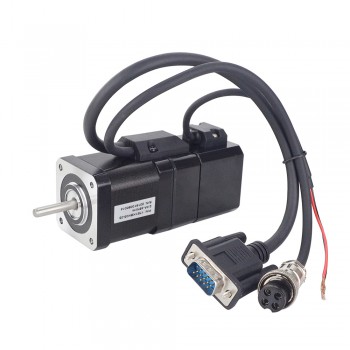

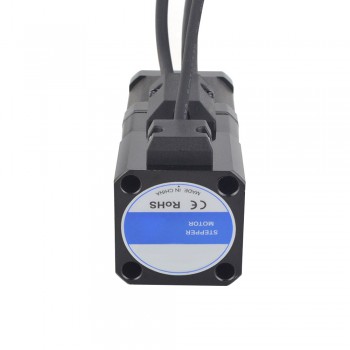

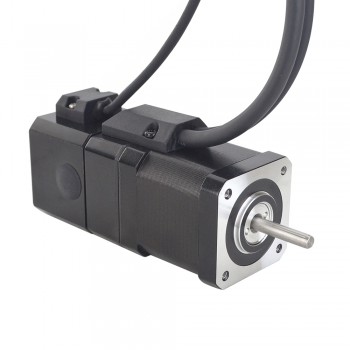

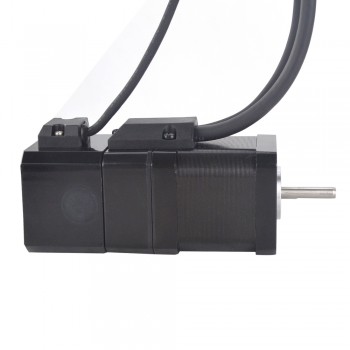

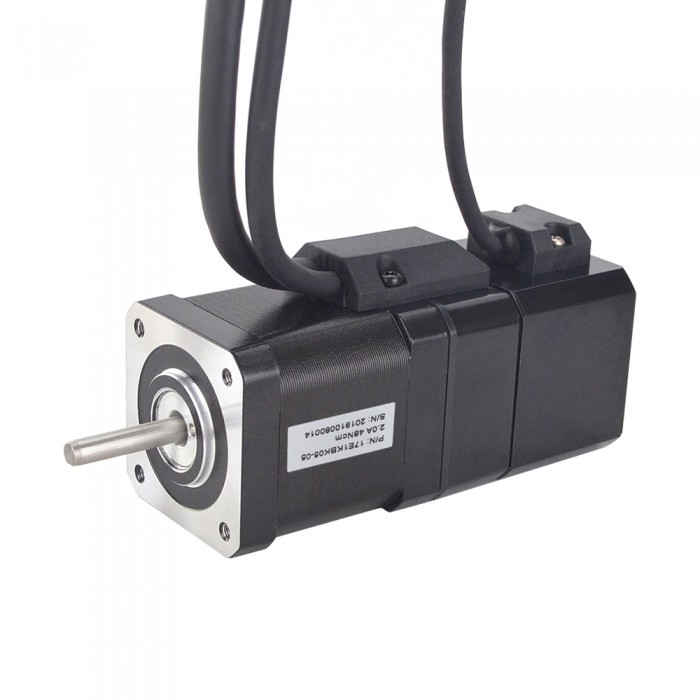

P Series Nema 17 Closed Loop Stepper Motor 1.8 Deg 48Ncm 2A 2 Phase with Electromagnetic Brake
Special Offer in April 2024:
- 6% OFF on Total Order Amount!
- Enjoy Discount at Checkout!
- Valid Till April 20th, 2024
- Note:No coupon code needed, please place order directly!
Our Price:$112.59
Electrical Specification
- Manufacturer Part Number: 17E1KBK05-05
- Number of phase: 2
- Step Angle: 1.8 deg
- Holding Torque: 48 Ncm(67.99 oz.in)
- Rated Current/phase: 2.0 A
- Phase Resistance: 1.35 ohms
- Inductance: 2.8 mH ± 20%(1KHz)
Physical Specification
- Frame Size: 42 x 42 mm
- Body Length: 48 mm
- Shaft Diameter: Φ5 mm
- Shaft Length: 24 mm
- D-Cut Shaft Length: 15 mm
- Lead Length: 270 mm
- Weight: 0.36 kg
Encode Control(1000CPR)
- 3--GND
- 2--+5VCC
- 13--EA-
- 1--EA+
- 12--EB-
- 11--EB+
Brake Connections
- Red--24V+
- Red--24V-
- 0.5Nm
Connection
|
A+
|
A-
|
B+
|
B-
|
|
White
|
Green
|
Blue
|
Black
|
Resources
- Full Datasheet: 17E1KBK05-05.pdf
- Torque Curve: 17E1KBK05-05 Torque Curve.pdf
Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!
| Motor Specification | |
|---|---|
| Holding Torque (Ncm) | 48 |
| Holding Torque (oz.in) | 67.99 |
| Inductance(mH) | 2.8 |
| Lead Length(mm) | 270 |
| Motor Nema Size | Nema 17 |
| Phase Resistance(ohm) | 1.35 |
| Rated Current (A) | 2 |
| Shaft Diameter(mm) | 5 |
| Shaft Length(mm) | 24 |
| Step Angle(°) | 1.8 |
| Number Of Phase | 2 |
| Brake Specification | |
| Driving Voltage(V) | 24 |
| Static Friction Torque(Nm) | 0.5 |
| Static Friction Torque(oz.in) | 70.82 |
| Encoder Specification | |
| Resolution(CPR) | 1000 |
| Output Signal Channels | 2 Channels |
