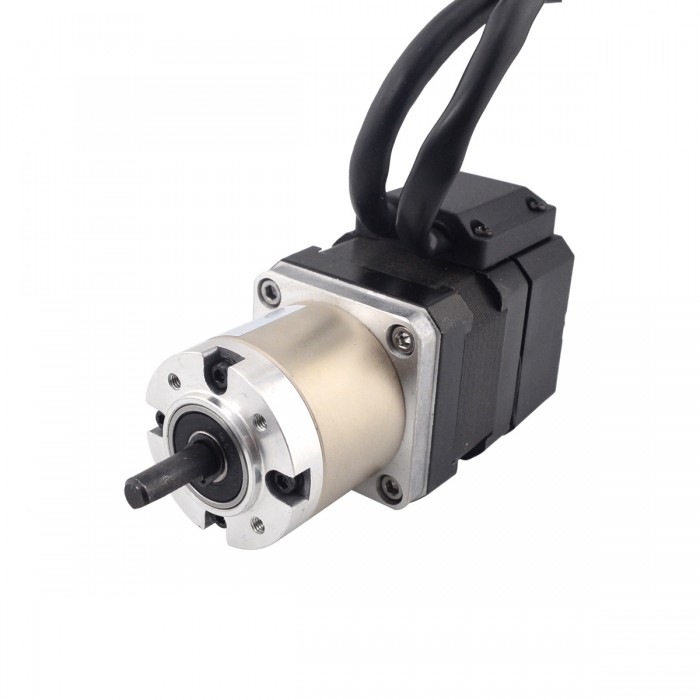

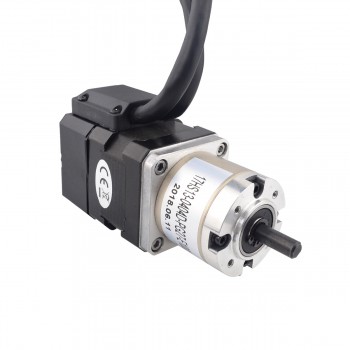

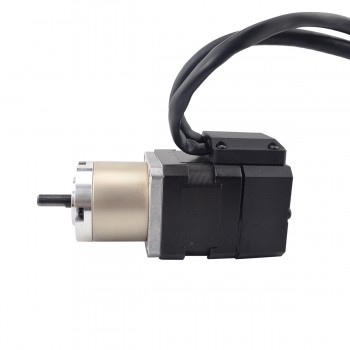

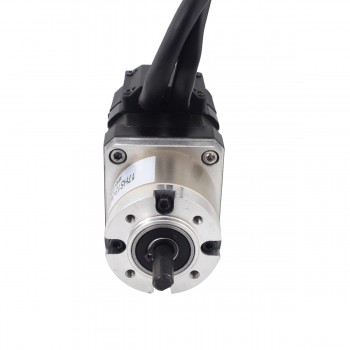

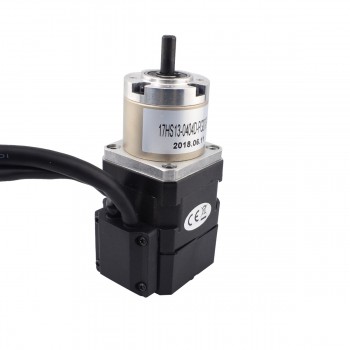

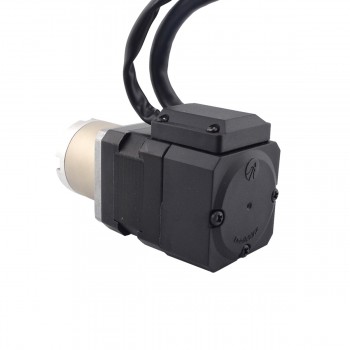

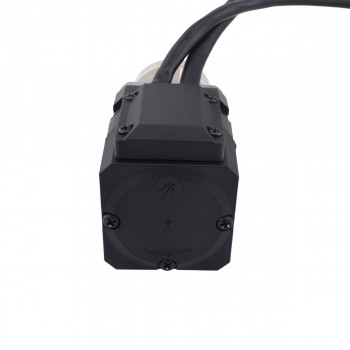

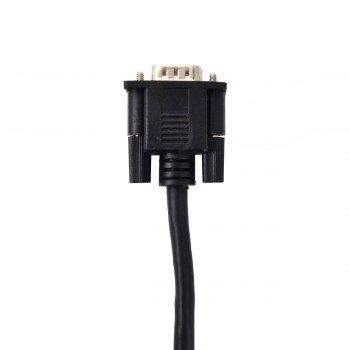

Nema 17 Closed-loop Geared Stepper Bipolar L=34mm 1.8 Deg 0.22Nm 12V with 27:1 Encoder 1000CPR

Nema 17 Closed-loop Geared Stepper Bipolar L=34mm 1.8 Deg 0.22Nm 12V with 27:1 Encoder 1000CPR
NO.:17HS13-0404D-PG27-E1000
Post a review
Special Offer in Black Friday 2024:
  • 6% OFF on Total Order Amount!
  • Enjoy Discount at Checkout!
  • Valid Till December 3th, 2024
  • Note:No coupon code needed, please place order directly!
Our Price:$72.39
Quantity:- +

Bulk Price:
Qty.Range(unit) Price(unit) Discount
5 $68.77 5%
10 $67.32 7%
50 $65.15 10%
100 $62.98 13%
Add To Cart

Motor Specification

Manufacturer Part Number: 17HS13-0404D-PG27-E1000

Motor Type: Bipolar Stepper

Step Angle without Gearbox: 1.8 deg

Holding Torque without Gearbox: 0.22Nm(31.16oz.in)

Rated Current/phase: 0.40A

Phase Resistance: 30ohms

Voltage: 12.00V

Inductance: 27mH ± 20%(1KHz)

Number of Leads: 4

Lead Length: 500mm



Gearbox Specifications

Gearbox Type: Planetary

Gearbox Length: 35mm

Gear Ratio: 26.85

Efficiency: 81%

Shaft Diameter: Φ6mm

Shaft Length: 18 mm

Backlash at No-load: <=1deg

Max.Permissible Torque: 3Nm(424.92oz.in)

Moment Permissible Torque: 5Nm(708.2oz.in)

Shaft Maximum Axial Load: 50N

Shaft Maximum Radial Load: 100N



Encoder Specification

Driving Voltage : 4.5V to 5.5V

Output current : 20mA

Resolution : 1000cpr

Output Signal : 2 Channels

Bore Diameter : Φ5mm

Output Frequency : ≤60MHz

Running Speed : ≤3600rpm

IP Protection: IP20



Connection

A+
A-
B+
B-
Green
Black
Red
Blue

Resources

Motor Datasheet: 17HS13-0404D-PG27-E1000.pdf



Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!

Prev: Nema 17 Closed-loop Geared Stepper Bipolar L=34mm 1.8 Deg 0.22Nm 0.40A 12V with 14:1 Encoder 1000CPR
Next: Nema 17 Closed-loop Geared Stepper Motor Bipolar L=48mm 1.8 Deg 0.52Nm 1.68A 2.80V with 5:1 Encoder 1000CPR
Motor Specification
Bipolar/Unipolar Bipolar
Holding Torque (Ncm) 26
Holding Torque (oz.in) 36.826
Inductance(mH) 37
Lead Length(mm) 500
Motor Nema Size Nema 17
No. of Lead 4
Phase Resistance(ohm) 30
Rated Current (A) 0.4
Shaft Diameter(mm) 6
Shaft Length(mm) 18
Step Angle(°) 1.8
Encoder Specification
IP Protection IP20
Output Current(mA) 20
Output Frequency ≤60KHz
Rated Voltage(V) 5
Resolution(CPR) 1000
Running Speed(rpm) ≤3600rpm
