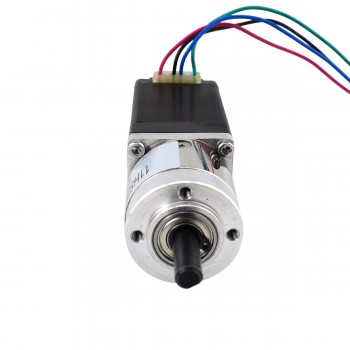

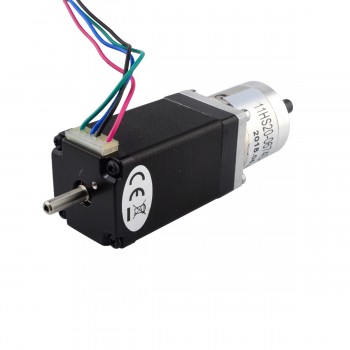

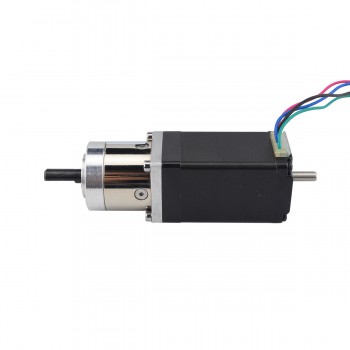

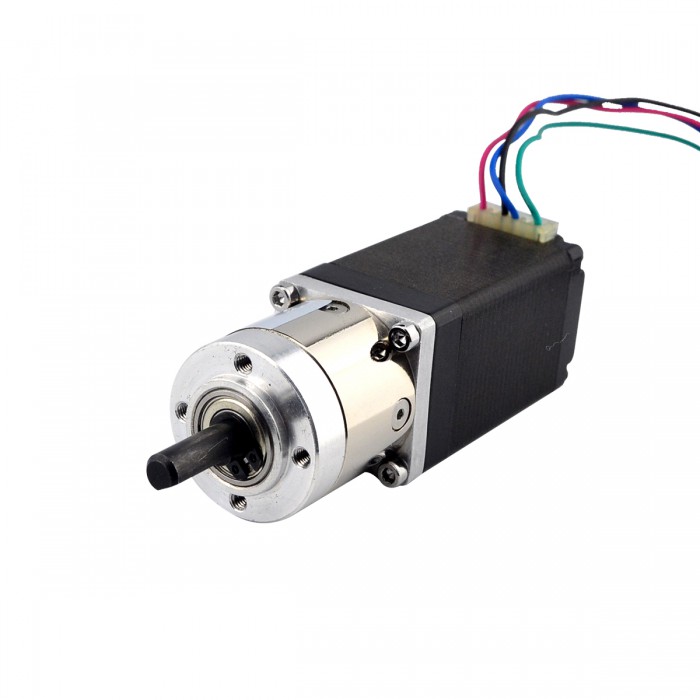

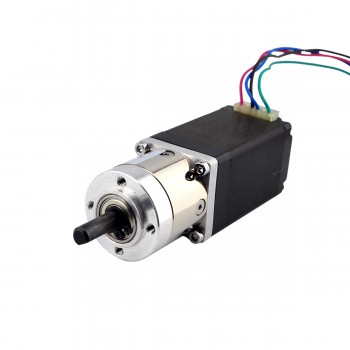

Nema 11 Gear Stepper L=51mm w/ Rear Shaft & Screw Hole & Gear Ratio 5:1 Gearbox

NO.:11HS20-0674D-PG5
Review: Post a review
Black Friday Special Offer 2020:
  • 6% Off on Total Order Amount
  • Enjoy Discount at Checkout
  • No Need Coupon Code!
  • Valid Till 3rd December, 2020
Latest price:$52.38
Buy It Now:$40.30
Quantity:- +

Buy More, Save more!
5 - 9 10 - 49 50 - 99 100 - Max
$39.34 $38.38 $37.42 $36.46
Add To Cart

This Nema 11 stepper motor with 51mm body and 0.67A rated current, integrated a planetary gearbox of 5.18:1 gear ratio. It's a good solution to applications that with limited space but need low speed and/or high torque. A 5mm diameter rear shaft is available.

Electrical Specification

  • Manufacturer Part Number: 11HS20-0674D-PG5
  • Motor Type: Bipolar Stepper
  • Step Angle: 1.8 deg
  • Holding Torque: 12Ncm(17.04oz.in)
  • Rated Current/phase: 0.67A
  • Voltage: 8.04V
  • Phase Resistance: 12ohms
  • Inductance: 6.5mH ± 20%(1KHz)

Gearbox Specifications

  • Gearbox Type:Planetary
  • Gear Ratio:5.18:1
  • Efficiency:90%
  • Backlash at No-load:<=1deg
  • Max.Permissible Torque:2N.m(283oz.in)
  • Moment Permissible Torque:4N.m(566oz.in)
  • Shaft Maximum Axial Load:5N
  • Shaft Maximum Radial Load:25N

Physical Specification

  • Frame Size: 28 x 28mm
  • Motor Length: 51mm
  • Gearbox Length:27mm
  • Front Shaft Diameter: Φ6mm
  • Front Shaft Length: 18mm
  • Front D-cut Length: 12mm
  • Rear Shaft Diameter: Φ4mm
  • Rear Shaft Length:12mm
  • Number of Leads: 4
  • Lead Length: 500mm
  • Weight: 400g

Connection

A+
A-
B+
B-
Black
Green
Red
Blue



Resources

Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!

Prev: Nema 14 Gear Stepper L=52mm w/ Rear Shaft & Gear Ratio 4:1 Planetary Gearbox
Next: Nema 14 Geared Stepper Motor Bipolar L=52mm w/ Gear Ratio 14:1 Planetary Gearbox
Gearbox Specification
Efficiency 90%
Gear Ratio 5.18:1
Gearbox Length(mm) 27.2
Gearbox Type Planetary
Backlash at No-load(Max.°) 1
Max. Permissible Torque(Ncm) 200
Max. Permissible Torque(oz.in) 283.28
Moment Permissible Torque(Ncm) 400
Moment Permissible Torque(oz.in) 566.56
Shaft Maximum Axial Load(N) 5
Shaft Maximum Radial Load(N) 25
Motor Specification
Bipolar/Unipolar Bipolar
Holding Torque w/o Gearbox(Ncm) 12
Holding Torque w/o Gearbox(oz.in) 17.00
Inductance(mH) 6.5
Lead Length(mm) 500
Motor Nema Size Nema 11
No. of Lead 4
Phase Resistance(ohm) 12
Rated Current (A) 0.67
Shaft Diameter(mm) 6
Shaft Length(mm) 18
Shaft Type D-Cut
Single Shaft/Dual Shaft Dual Shaft
Physical Specification
Weight(g) 400
