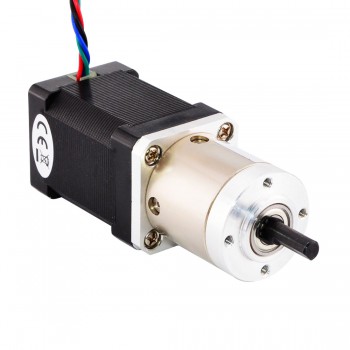

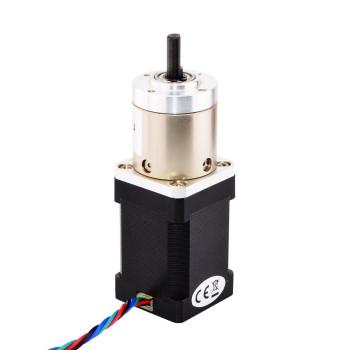

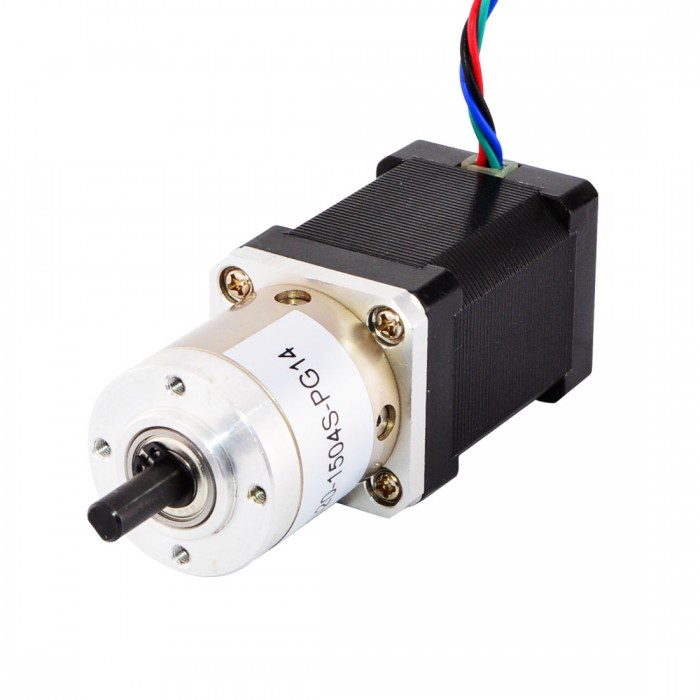

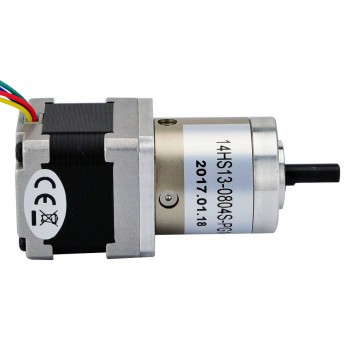

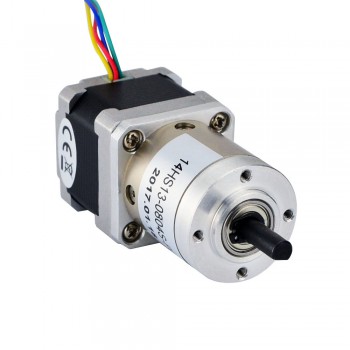

Nema 14 Geared Stepper Motor Bipolar L=52mm w/ Gear Ratio 14:1 Planetary Gearbox

NO.:14HS20-1504S-PG14
Review: Post a review
Black Friday Special Offer 2020:
  • 6% Off on Total Order Amount
  • Enjoy Discount at Checkout
  • No Need Coupon Code!
  • Valid Till 3rd December, 2020
Latest price:$53.26
Buy It Now:$40.97
Quantity:- +

Buy More, Save more!
5 - 9 10 - 49 50 - 99 100 - Max
$39.95 $38.92 $37.90 $36.88
Add To Cart

This Nema 14 stepper motor with 52mm body and 1.5A rated current, integrated a planetary gearbox of 13.73:1 gear ratio. It's a good solution to applications that with limited space but need low speed and/or high torque.

Electrical Specification

  • Manufacturer Part Number: 14HS20-1504S-PG14
  • Motor Type: Bipolar Stepper
  • Step Angle: 0.13 deg
  • Holding Torque without Gearbox: 40Ncm(56.6oz.in)
  • Rated Current/phase: 1.5A
  • Phase Resistance: 2.8ohms
  • Voltage: 4.2V
  • Inductance: 3.8mH ± 20%(1KHz)

Gearbox Specifications

  • Gearbox Type: Planetary
  • Gear Ratio: 13.73: 1
  • Efficiency: 80%
  • Backlash at No-load: <=1 deg
  • Max.Permissible Torque: 4Nm(566.4oz.in)
  • Moment Permissible Torque: 8Nm(1132.9oz.in)
  • Shaft Maximum Axial Load: 50N
  • Shaft Maximum Radial Load: 100N

Physical Specifications

  • Frame Size: 35 x 35mm
  • Motor Length: 52mm
  • Gearbox Length: 36.8mm
  • Shaft Diameter: Φ6mm
  • Shaft Length: 18mm
  • D-cut Length: 12mm
  • Number of Leads: 4
  • Lead Length: 400mm
  • Weight: 400g

Connection

A+
A-
B+
B-
Black
Green
Red
Blue



Resources

Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!

Prev: Nema 11 Gear Stepper L=51mm w/ Rear Shaft & Screw Hole & Gear Ratio 5:1 Gearbox
Next: Nema 11 Stepping Motor Gearbox L=31mm w/ Rear Shaft & Screw Hole Gear Ratio 100:1 Gearbox
Gearbox Specification
Efficiency 80%
Gear Ratio 13.73:1
Gearbox Length(mm) 36.8
Gearbox Type Planetary
Backlash at No-load(Max.°) 1
Max. Permissible Torque(Ncm) 400
Max. Permissible Torque(oz.in) 566.4
Moment Permissible Torque(Ncm) 800
Moment Permissible Torque(oz.in) 1132.9
Shaft Maximum Axial Load(N) 50
Shaft Maximum Radial Load(N) 100
Motor Specification
Bipolar/Unipolar Bipolar
Holding Torque w/o Gearbox(Ncm) 40
Holding Torque w/o Gearbox(oz.in) 56.6
Inductance(mH) 3.8
Lead Length(mm) 400
Motor Length(mm) 52
Motor Nema Size Nema 14
No. of Lead 4
Phase Resistance(ohm) 2.8
Rated Current (A) 1.5
Shaft Diameter(mm) 6
Shaft Length(mm) 18
Shaft Type D-Cut
Single Shaft/Dual Shaft Single Shaft
Physical Specification
Weight(g) 400
