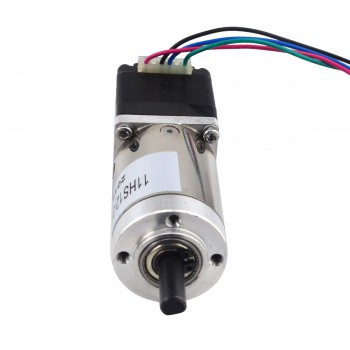

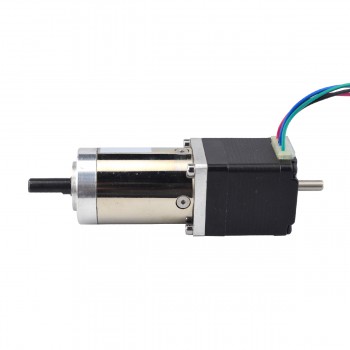

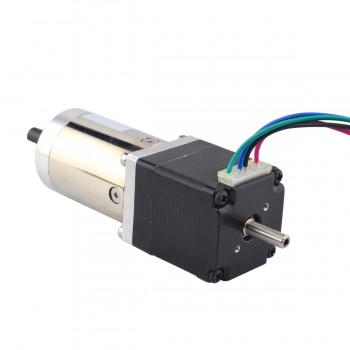

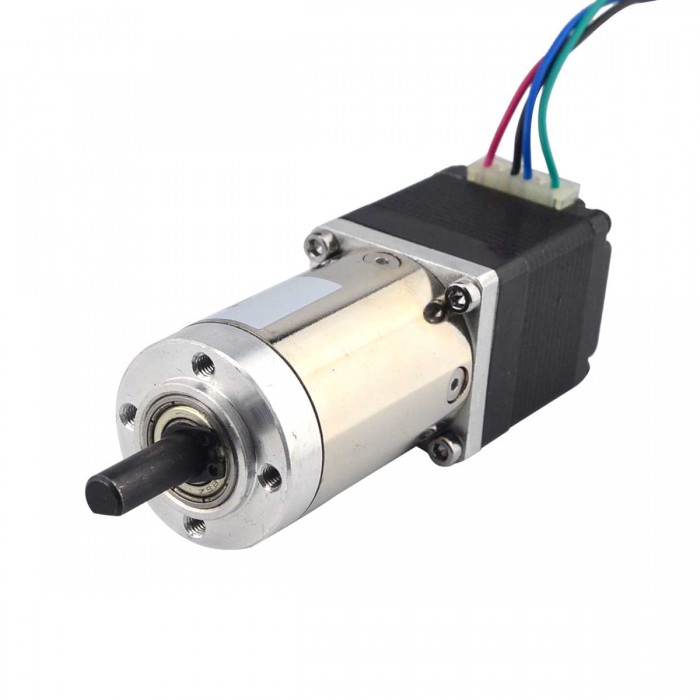

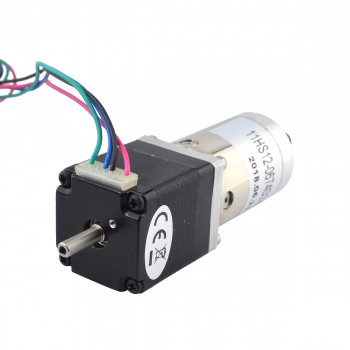

Nema 11 Stepping Motor Gearbox L=31mm with Rear Shaft & Screw Hole Gear Ratio 100:1 Gearbox
- 6% OFF on Total Order Amount!
- Enjoy Discount at Checkout!
- Valid Till December 3th, 2024
- Note:No coupon code needed, please place order directly!
This Nema 11 stepper motor with 31mm body and 0.67A rated current, integrated a planetary gearbox of 99.05:1 gear ratio.
Electrical Specification
Manufacturer Part Number: 11HS12-0674D2-PG100
Motor Type: Bipolar Stepper
Step Angle: 1.8 deg
Holding Torque: 7Ncm(9.91oz.in)
Rated Current/phase: 0.67A
Phase Resistance: 5.6ohms
Inductance: 4.2mH ± 20%(1KHz)
Gearbox Specifications
Gearbox Type: Planetary
Gear Ratio: 99.05:1
Efficiency: 73%
Backlash at No-load: <=1deg
Max.Permissible Torque: 4N.m(567oz.in)
Moment Permissible Torque: 6N.m(849.8oz.in)
Shaft Maximum Axial Load: 5N
Shaft Maximum Radial Load: 25N
Physical Specification
Frame Size: 28 x 28mm
Gearbox Length: 42.7mm
Front Shaft Diameter: Φ6mm
Front Shaft Length: 18mm
Front D-cut Length: 12mm
Rear Shaft Diameter: Φ4mm
Rear Shaft Length: 12mm
Number of Leads: 4
Lead Length: 500mm
Weight: 200g
Connection
|
A+
|
A-
|
B+
|
B-
|
|
Black
|
Green
|
Red
|
Blue
|
Resources
Full Datasheet: 11HS12-0674D2-PG100.pdf
Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!
| Electrical Specification | |
|---|---|
| Inductance(mH) | 4 |
| Phase Resistance(ohm) | 5.6 |
| Rated Current (A) | 0.67 |
| Gearbox Specification | |
| Efficiency | 73% |
| Gear Ratio | 99.51:1 |
| Gearbox Length(mm) | 42.7 |
| Gearbox Type | Planetary |
| Backlash at No-load(Max.°) | 1 |
| Max. Permissible Torque(Ncm) | 400 |
| Max. Permissible Torque(oz.in) | 566.4 |
| Shaft Maximum Axial Load(N) | 5 |
| Shaft Maximum Radial Load(N) | 25 |
| Motor Specification | |
| Bipolar/Unipolar | Bipolar |
| Holding Torque w/o Gearbox(Ncm) | 9.9 |
| Motor Length(mm) | 31.5 |
| Motor Nema Size | Nema 11 |
| Physical Specification | |
| Lead Length(mm) | 500 |
| No. of Lead | 4 |
| Shaft Diameter(mm) | 6 |
| Shaft Length(mm) | 18 |
| Shaft Type | D-Cut |
| Single Shaft/Dual Shaft | Dual Shaft |
| Weight(g) | 200 |
