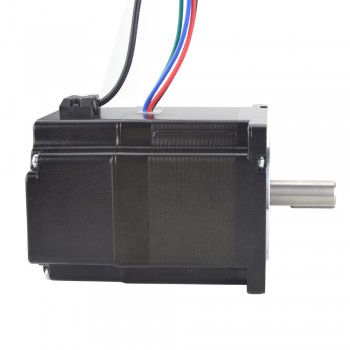

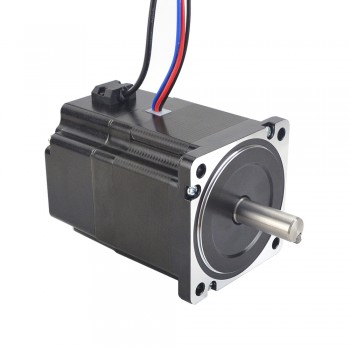

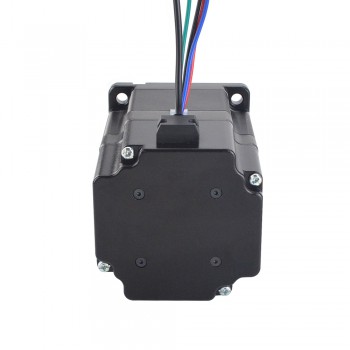

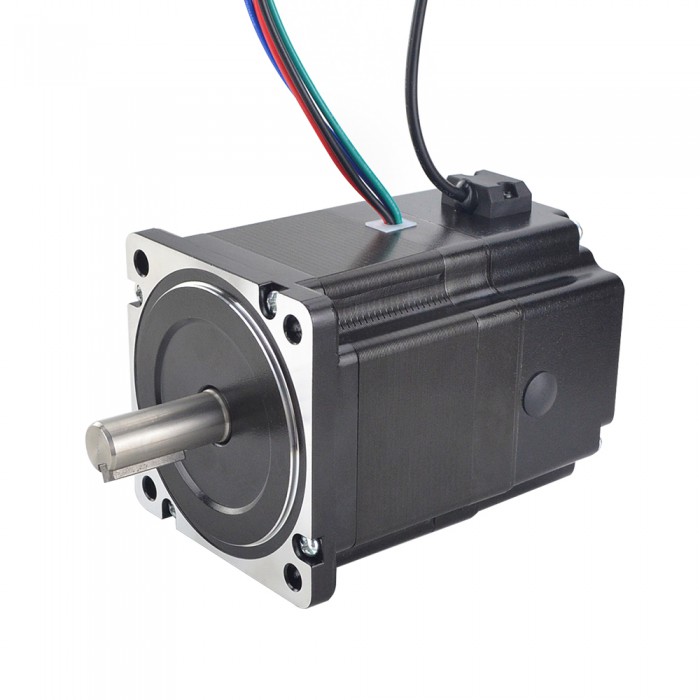

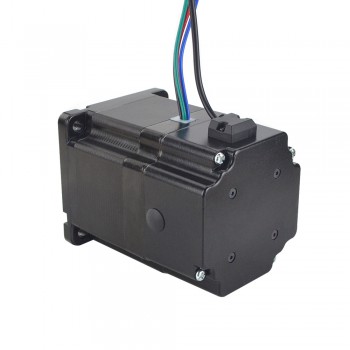

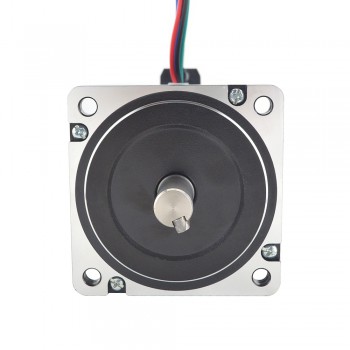

Nema 34 Stepper Motor P Series 4.5Nm/637.38oz.in with Electromagnetic Brake

NO.:34BK50-45
Review: Post a review
Latest price:$179.29
Buy It Now:$137.92
Quantity:- +

Buy More, Save more!
5 - 9 10 - 49 50 - 99 100 - Max
$132.17 $126.42 $120.67 $114.94
Add To Cart

Electrical Specification

  • Manufacturer Part Number: 34BK50-45
  • Number of phase: 2
  • Step Angle: 1.8 deg
  • Holding Torque: 4.5 Nm(637.38 oz.in)
  • Rated Current/phase: 6.0 A
  • Phase Resistance: 0.34 ohms
  • Inductance: 2.4 mH ± 20%(1KHz)

Physical Specification

  • Frame Size: 86 x 86 mm
  • Body Length: 74 mm
  • Shaft Diameter: Φ14 mm
  • Shaft Length: 37 mm
  • keyway Length: 25 mm
  • Number of Leads: 4
  • Lead Length: 500 mm
  • Weight: 2.1 kg

Brake Connections

  • Red--24V+
  • Red--24V-
  • 5.0Nm

Connection

A+
A-
B+
B-
Black
Green
Red
Blue



Resources

Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!

Prev: Nema 34 Stepper Motor P Series 12Nm/1700oz.in with Electromagnetic Brake
Next: Nema 34 Stepper Motor P Series 8.5Nm/1203.94oz.in with Electromagnetic Brake
Motor Specification
Holding Torque (Ncm) 450
Holding Torque (oz.in) 637.38
Inductance(mH) 2.4
Lead Length(mm) 500
Motor Nema Size Nema 34
No. of Lead 4
Phase Resistance(ohm) 0.34
Rated Current (A) 6.0
Shaft Diameter(mm) 14
Shaft Length(mm) 37
Step Angle(°) 1.8
Number Of Phase 2
Brake Specification
Driving Voltage(V) 24
Static Friction Torque(Nm) 5.0
Static Friction Torque(oz.in) 708.2
