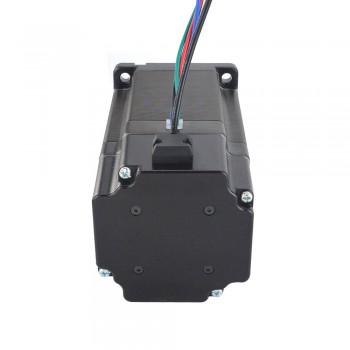

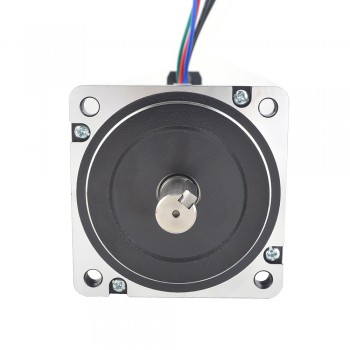

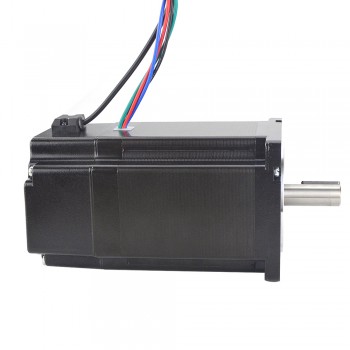

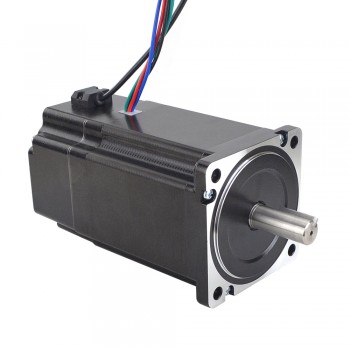

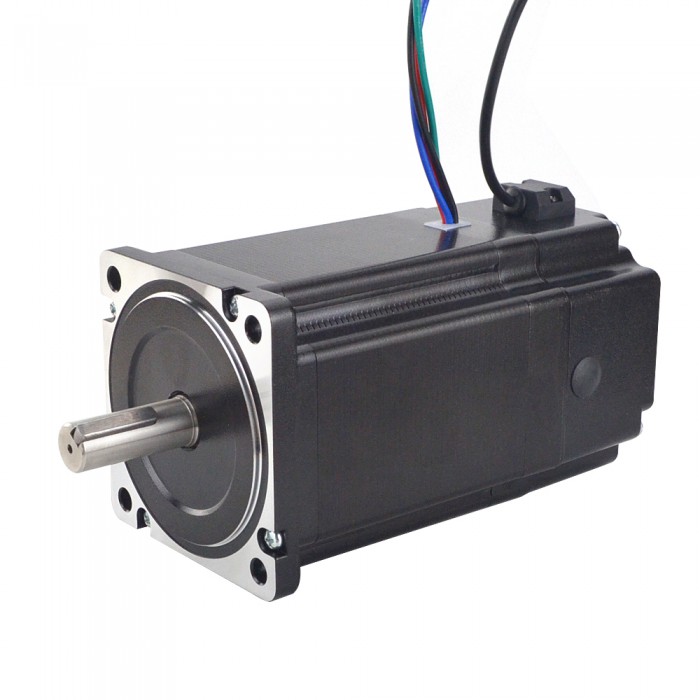

Nema 34 Stepper Motor P Series 1.8 Deg 8.5Nm/1203.94oz.in 2 Phase with Electromagnetic Brake
Electrical Specification
Manufacturer Part Number: 34BK50-85
Number of phase: 2
Step Angle: 1.8 deg
Holding Torque: 8.5 Nm(1203.94 oz.in)
Rated Current/phase: 6.0 A
Phase Resistance: 0.54 ohms
Inductance: 5.0 mH ± 20%(1KHz)
Physical Specification
Frame Size: 86 x 86 mm
Body Length: 112.3 mm
Shaft Diameter: Φ14 mm
Shaft Length: 37 mm
keyway Length: 25 mm
Number of Leads: 4
Lead Length: 500 mm
Weight: 3.6 kg
Brake Connections
Red--24V+
Red--24V-
5.0Nm
Connection
|
A+
|
A-
|
B+
|
B-
|
|
Black
|
Green
|
Red
|
Blue
|
Resources
Full Datasheet: 34BK50-85.pdf
Torque Curve: 34BK50-85 Torque Curve.pdf
Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!
| Motor Specification | |
|---|---|
| Holding Torque (Ncm) | 850 |
| Holding Torque (oz.in) | 1203.94 |
| Inductance(mH) | 5.0 |
| Lead Length(mm) | 500 |
| Motor Nema Size | Nema 34 |
| No. of Lead | 4 |
| Phase Resistance(ohm) | 0.54 |
| Rated Current (A) | 6.0 |
| Shaft Diameter(mm) | 14 |
| Shaft Length(mm) | 37 |
| Step Angle(°) | 1.8 |
| Number Of Phase | 2 |
| Brake Specification | |
| Driving Voltage(V) | 24 |
| Static Friction Torque(Nm) | 5.0 |
| Static Friction Torque(oz.in) | 708.2 |
