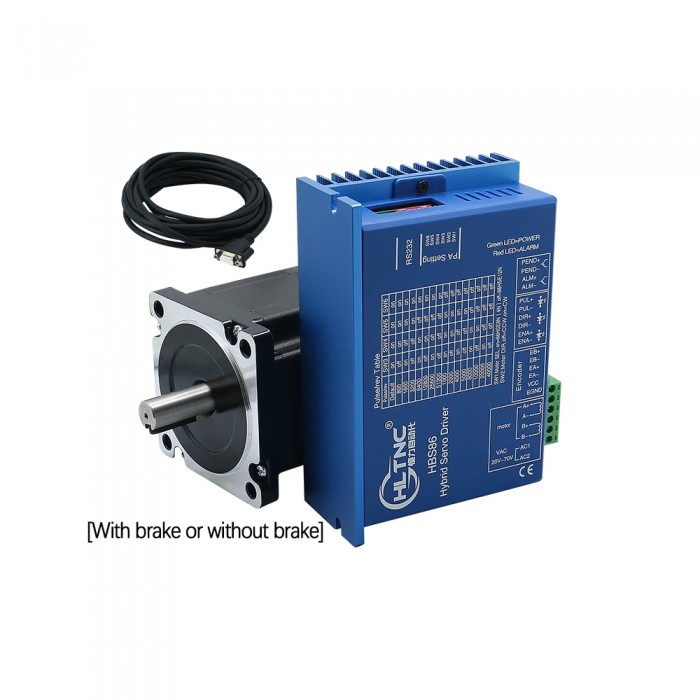

HLTNC Nema34 Close Loop Stepper Motor Kit 4.5N.m 1.8deg 86HB250-82B & HBS86 Driver With Brake
Special Offer in Black Friday 2024:
- 6% OFF on Total Order Amount!
- Enjoy Discount at Checkout!
- Valid Till December 3th, 2024
- Note:No coupon code needed, please place order directly!
Our Price:$296.02

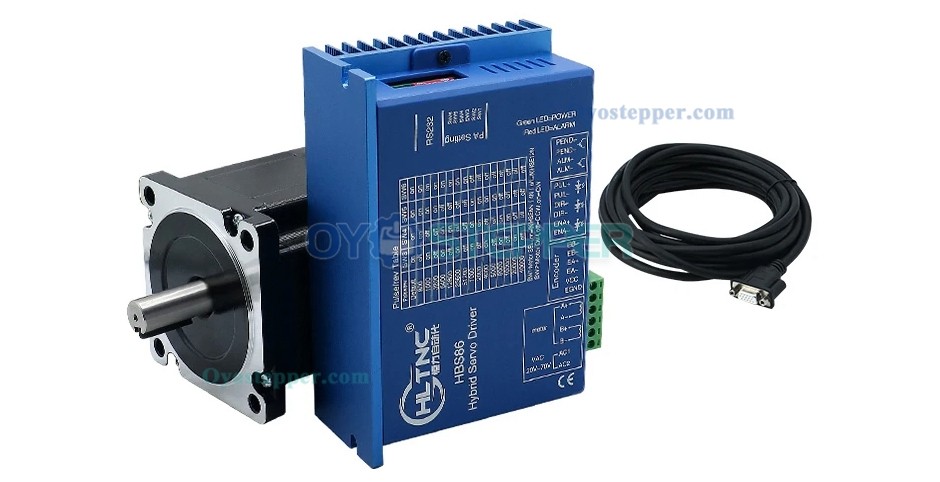

HLTNC Nema34 Close Loop Stepper Motor Kit 86HB250-82B-HBS86 Brake 4.5N.m 1.8deg With HBS86 Driver + Cable + Brake
Specifications:
Certification: CE
Model Number: 86HB250-82B HBS86
Name: Nema34 Close Loop Stepper Motor and Driver
Close Loop Motor: 86HB250-82B

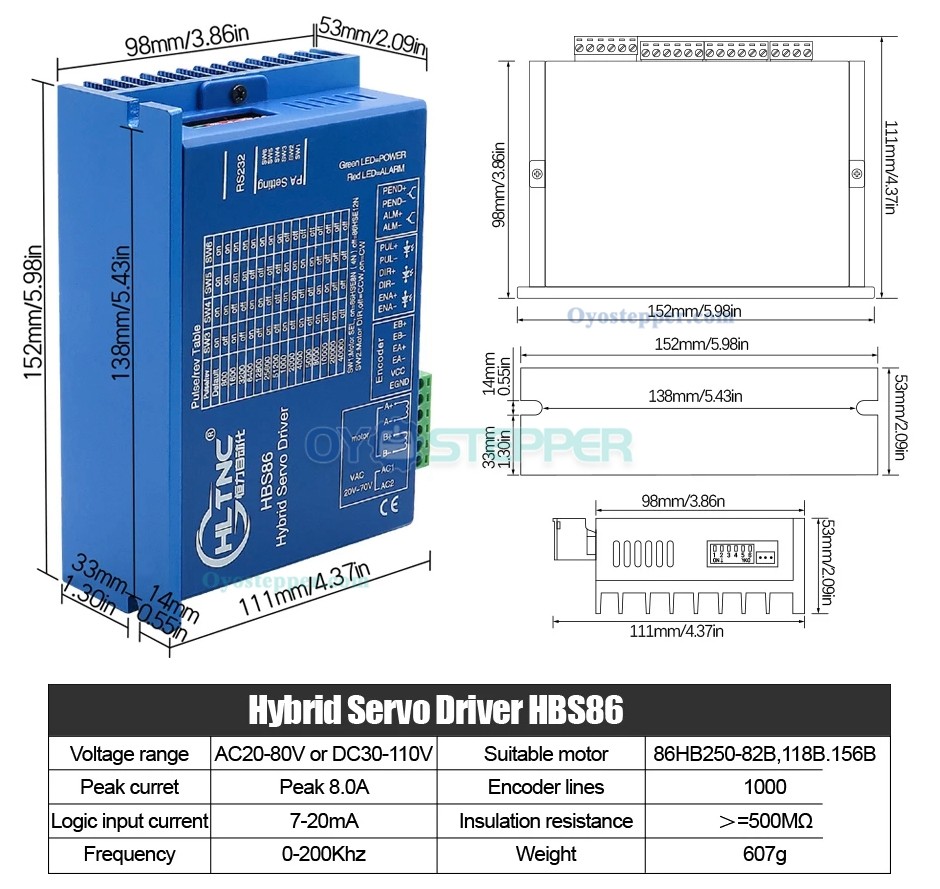

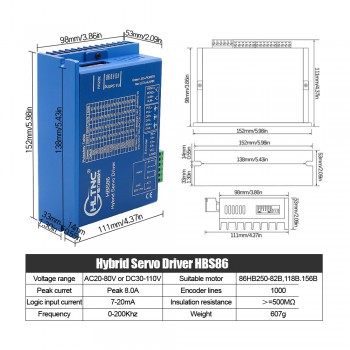

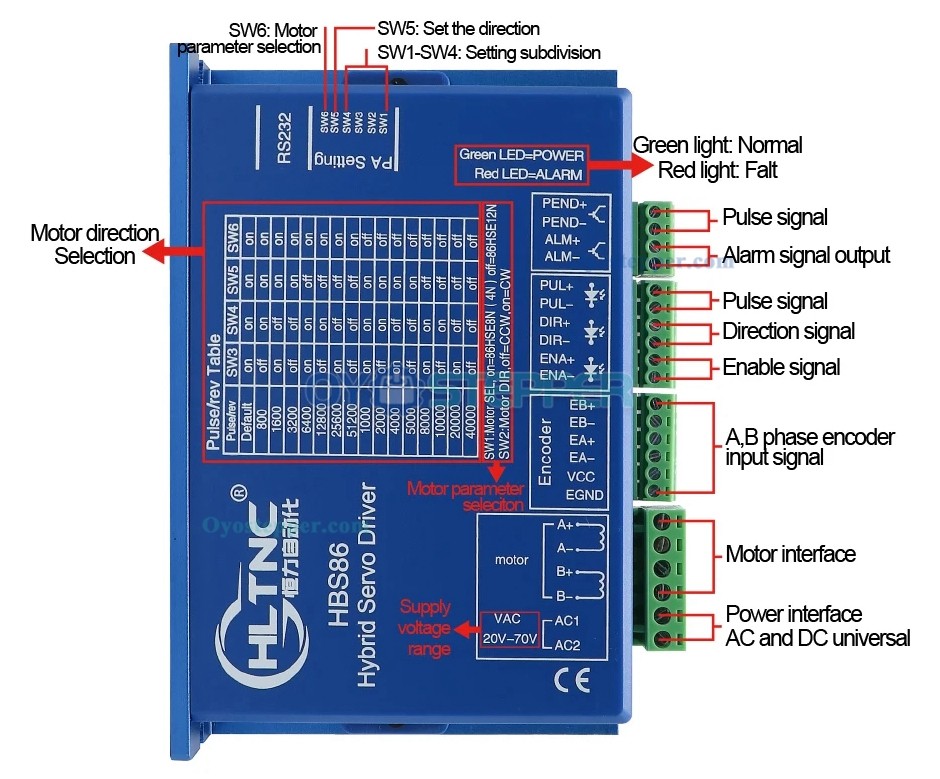

Motor Driver: HBS86
Encoder Cable: 3M
Holding torque: 4.5N.m
Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!

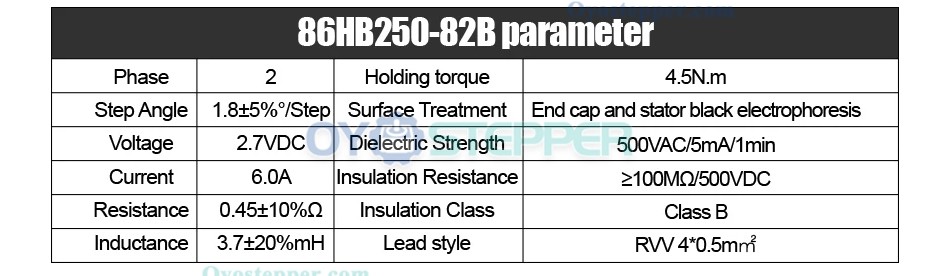

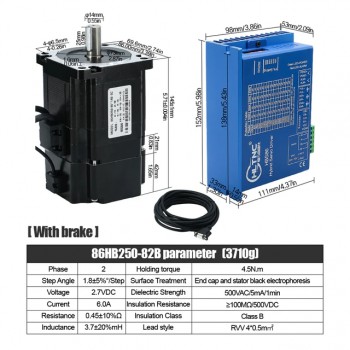

| Motor Specification | |
|---|---|
| Step Angle(°) | 18 |
| Shaft Length(mm) | 32 |
| Shaft Diameter(mm) | 14 |
| Rated Current (A) | 6 |
| Phase Resistance(ohm) | 0.45 |
| Motor Nema Size | 34 |
| Inductance(mH) | 3.7 |
| Holding Torque (oz.in) | 637.39 |
| Holding Torque (Ncm) | 450 |

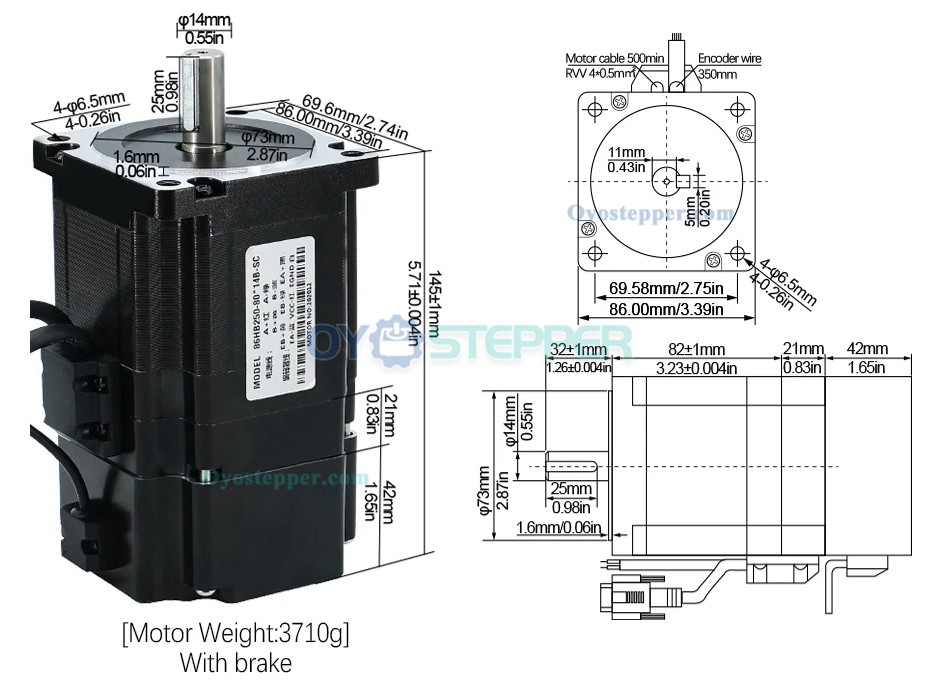

| Body Length(mm) | 145 |
| Motor Length(mm) | 82 |
| Shaft Type | Keyway |
| Single Shaft/Dual Shaft | Single Shaft |
| Number Of Phase | 2 |
| CNC Kit Specification | |
| Open-loop/Closed-loop | Closed-loop |
| No of Axis | Single Axis |
