Nema 14 External Stepper Motor Linear Actuator 48mm Stack 0.91A 5V Lead Revolution 0.794mm/0.031"Lead Screw 250mm

Nema 14 External Stepper Motor Linear Actuator 48mm Stack 0.91A 5V Lead Revolution 0.794mm/0.031"Lead Screw 250mm
NO.:14LS17-0914P-250E
Post a review
Our Price:$96.30
Quantity:- +

Bulk Price:
Qty.Range(unit) Price(unit) Discount
5 $91.49 5%
10 $89.56 7%
50 $86.67 10%
100 $83.78 13%
Add To Cart

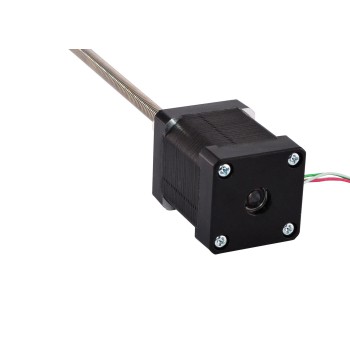

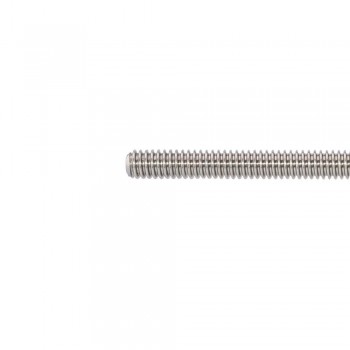

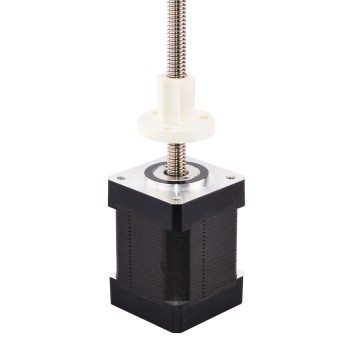

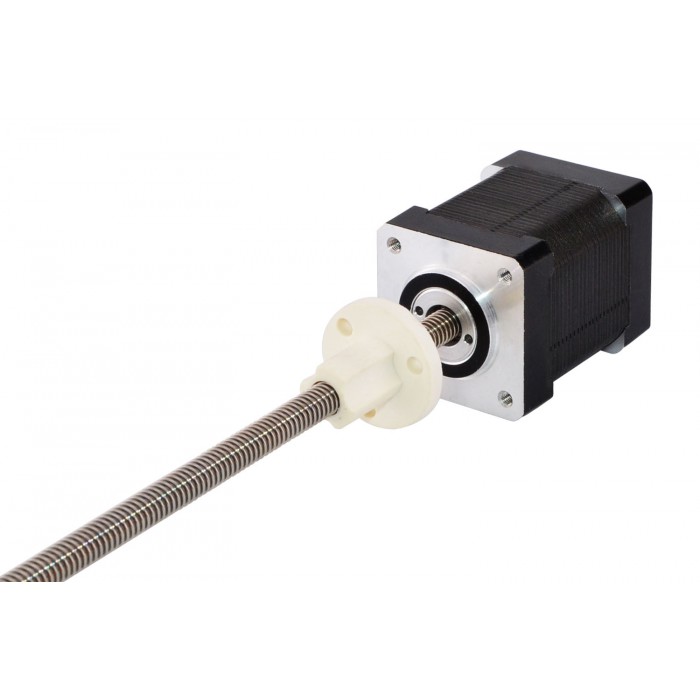

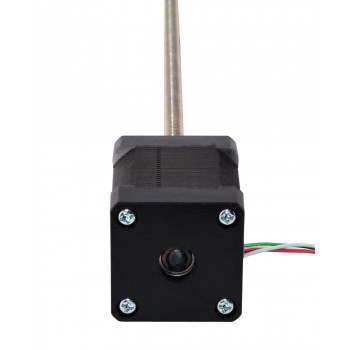

This model is almost exactly same as Haydon Kerk 35000 series size 14 double stack external stepper motor linear actuator. The motor part is 48mm body 1.8 degree 0.91A Nema 14 stepper motor, and it has integrated with a 6.35mm (0.25") diameter 250mm (9.8425") length lead screw and a POM screw nut, the linear travel is 0.794mm (0.03125") per revolution.

Electrical Specification

  • Manufacturer Part Number: 14LS17-0914P-250E
  • Motor Type: External Linear Stepper
  • Step Angle: 1.8°
  • Minimal Thrust: 252N (300pps)
  • Rated Current/phase: 0.91A
  • Phase Resistance: 5.5ohms
  • Voltage: 5V
  • Inductance: 7.63mH±20%(1KHz)

Physical Specification

  • Frame Size: 35 x 35mm
  • Body Length: 48mm
  • Lead Screw Length: 250mm(9.8425")
  • Lead Screw Diameter: Φ6.35mm(0.25")
  • Lead/Step: 0.00396875mm(0.00015625" )
  • Lead Travel/Revolution: 0.794mm(0.03125")
  • Number of Leads: 4
  • Lead Length: 300mm
  • Weight : 240g

Connection

A+
A-
B+
B-
Red
Red/White
Green/White
Green



Resources

Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!

Prev: Nema 14 Non-captive Linear Stepper Motor 48mm Stack 0.91A 5V Lead Revolution 4.8768mm/0.192" Lead Screw 250mm
Next: Nema 14 External Linear Stepper Motor Actuator 48mm Stack 0.91A 5V Lead Revolution 1.27mm/0.05" Lead Screw 250mm
Electrical Specification
Bipolar/Unipolar Bipolar
Inductance(mH) 7.63
Minimal Thrust(N) 252
Motor Type External
Phase Resistance(ohm) 5.5
Rated Current (A) 0.91
Step Angle(°) 1.8
Physical Specification
Body Length(mm) 48
Lead Screw Diameter(mm) 6.35
Lead Screw Length(mm) 250
Lead Revolution(mm) 0.79375
Linear Travel / Step(mm) 0.00396875
No. of Lead 4
Lead Length(mm) 300
Frame Size(mm) Nema 14 (35 x 35)
