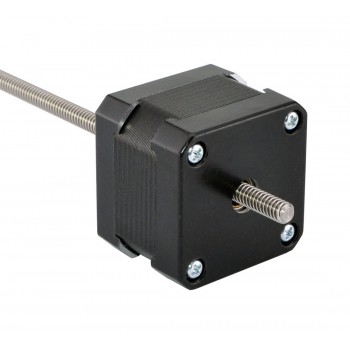

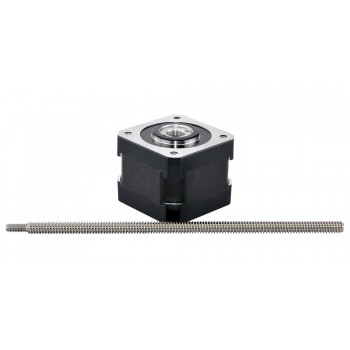

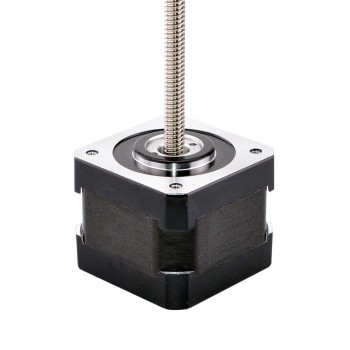

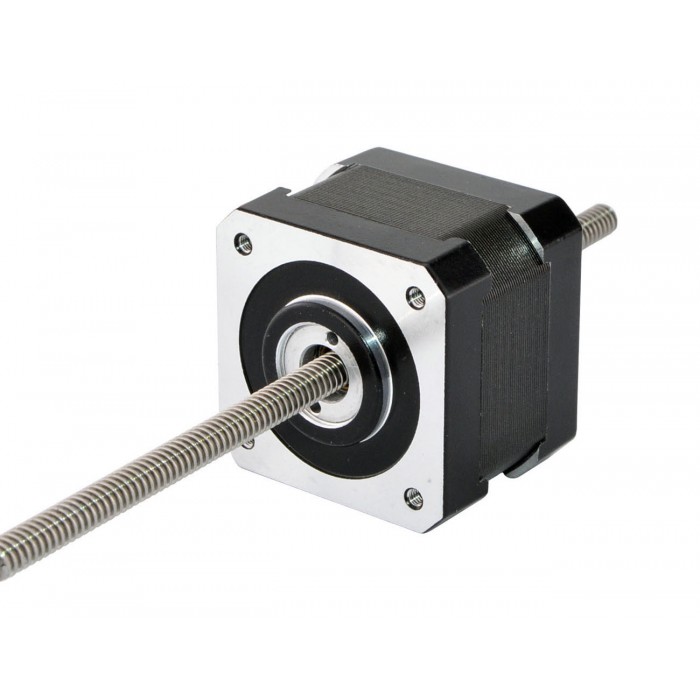

This model is almost exactly same as Haydon Kerk 43000 series size 17 non-captive stepper motor linear actuator. The motor part is 34mm body 1.8 degree 0.7A Nema 17 stepper motor, and it works with a 6.35mm (0.25") diameter 150mm (5.9055") length lead screw, the linear travel is 1.27mm(0.05") per revolution.
Electrical Specification
Manufacturer Part Number: 17LS13-07049-150N
Motor Type: Non-captive Linear Stepper
Step Angle: 1.8°
Minimal Thrust: 230N (300pps)
Rated Current/phase: 0.7A
Phase Resistance: 7.2ohms
Voltage: 5V
Inductance: 10.6mH±20%(1KHz)
Physical Specification
Frame Size: 42 x 42mm
Body Length: 34mm
Lead Screw Length: 150mm(5.9055")
Lead Screw Diameter: Φ6.35mm(0.25")
Lead/Step: 0.00635mm(0.00025" )
Lead Travel/Revolution: 1.27mm(0.05")
Number of Leads: 4
Lead Length: 300mm
Weight : 241g
Connection
A+
|
A-
|
B+
|
B-
|
Red
|
Red/White
|
Green/White
|
Green
|
Resources
Full Datasheet: 17LS13-07049-150N.pdf
Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!
Electrical Specification | |
---|---|
Bipolar/Unipolar | Bipolar |
Inductance(mH) | 10.6 |
Minimal Thrust(N) | 230 |
Motor Type | Non-Captive |
Phase Resistance(ohm) | 7.2 |
Rated Current (A) | 0.7 |
Step Angle(°) | 1.8 |
Physical Specification | |
Body Length(mm) | 33.8 |
Lead Screw Diameter(mm) | 6.35 |
Lead Screw Length(mm) | 150 |
Lead Revolution(mm) | 1.27 |
Linear Travel / Step(mm) | 0.00635 |
No. of Lead | 4 |
Lead Length(mm) | 300 |
Frame Size(mm) | Nema 17 (42 x 42) |
