Nema 17 Non-captive Precision Stepper Motor Bipolar 1.8 Deg 5V 0.7A Lead Revolution 0.794mm/0.031" Lead Screw 150mm
- 6% OFF on Total Order Amount!
- Enjoy Discount at Checkout!
- Valid Till December 3th, 2024
- Note:No coupon code needed, please place order directly!

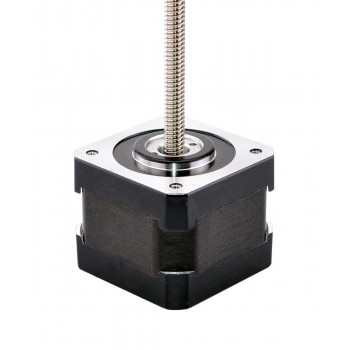

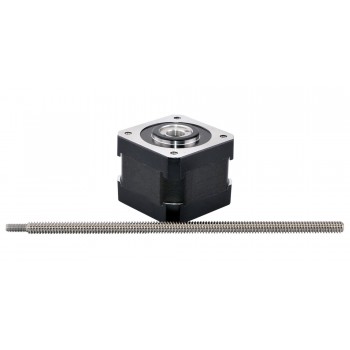

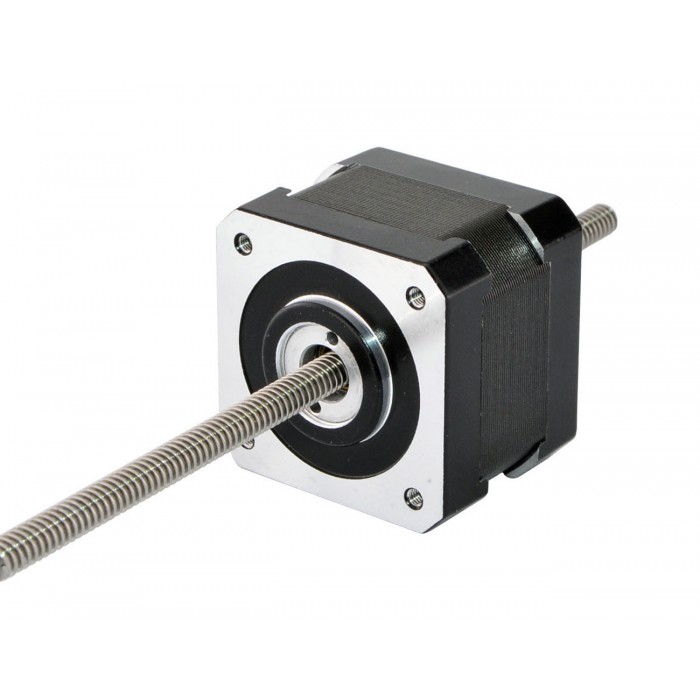

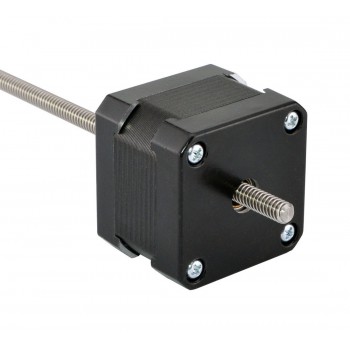

This model is almost exactly same as Haydon Kerk 43000 series size 17 non-captive stepper motor linear actuator. The motor part is 34mm body 1.8 degree 0.7A Nema 17 stepper motor, and it works with a 6.35mm (0.25") diameter 150mm (5.9055") length lead screw, the linear travel is 0.794mm (0.03125") per revolution.
Electrical Specification
Manufacturer Part Number: 17LS13-0704P-150N
Motor Type: Non-captive Linear Stepper
Step Angle: 1.8°
Minimal Thrust: 434N (300pps)
Rated Current/phase: 0.7A
Phase Resistance: 7.2ohms
Voltage: 5V
Inductance: 10.6mH±20%(1KHz)
Physical Specification
Frame Size: 42 x 42mm
Body Length: 34mm
Lead Screw Length: 150mm(5.9055")
Lead Screw Diameter: Φ6.35mm(0.25")
Lead/Step: 0.00396875mm(0.00015625" )
Lead Travel/Revolution: 0.794mm(0.03125")
Number of Leads: 4
Lead Length: 300mm
Weight : 241g
Connection
|
A+
|
A-
|
B+
|
B-
|
|
Red
|
Red/White
|
Green/White
|
Green
|
Resources
Full Datasheet: 17LS13-0704P-150N.pdf
Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!
| Electrical Specification | |
|---|---|
| Bipolar/Unipolar | Bipolar |
| Inductance(mH) | 10.6 |
| Minimal Thrust(N) | 434 |
| Motor Type | Non-Captive |
| Phase Resistance(ohm) | 7.2 |
| Rated Current (A) | 0.7 |
| Step Angle(°) | 1.8 |
| Physical Specification | |
| Body Length(mm) | 33.8 |
| Lead Screw Diameter(mm) | 6.35 |
| Lead Screw Length(mm) | 150 |
| Lead Revolution(mm) | 0.79375 |
| Linear Travel / Step(mm) | 0.00396875 |
| No. of Lead | 4 |
| Lead Length(mm) | 300 |
| Frame Size(mm) | Nema 17 (42 x 42) |
