Nema 14 Non-captive Precision Linear Actuator Bipolar 1.8 Deg 0.57A 5VLead Revolution 1.27mm/0.05" Lead Screw 150mm

Nema 14 Non-captive Precision Linear Actuator Bipolar 1.8 Deg 0.57A 5VLead Revolution 1.27mm/0.05" Lead Screw 150mm
NO.:14LS13-05749-150N
Post a review
Special Offer in July 2024:
  • $10 Off Over $150
  • $20 Off Over $300
  • $35 Off Over $500
  • $55 Off Over $800
  • $70 Off Over $1000
  • $100 Off Over $1500
  • Enjoy Discount at Checkout!
  • Valid Till July 20th, 2024
  • Note:No coupon code needed, please place order directly!
Our Price:$74.34
Quantity:- +

Bulk Price:
Qty.Range(unit) Price(unit) Discount
5 $70.62 5%
10 $69.14 7%
50 $66.91 10%
100 $64.68 13%
Add To Cart

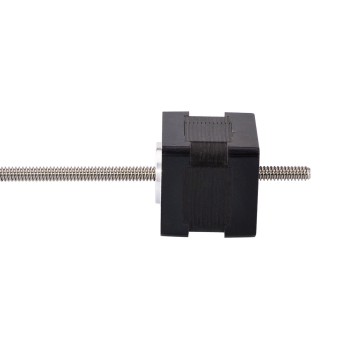

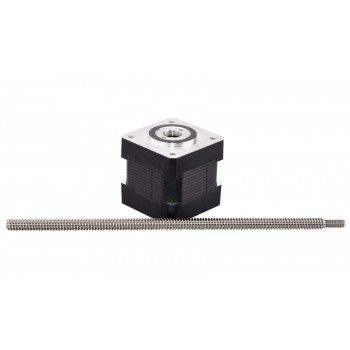

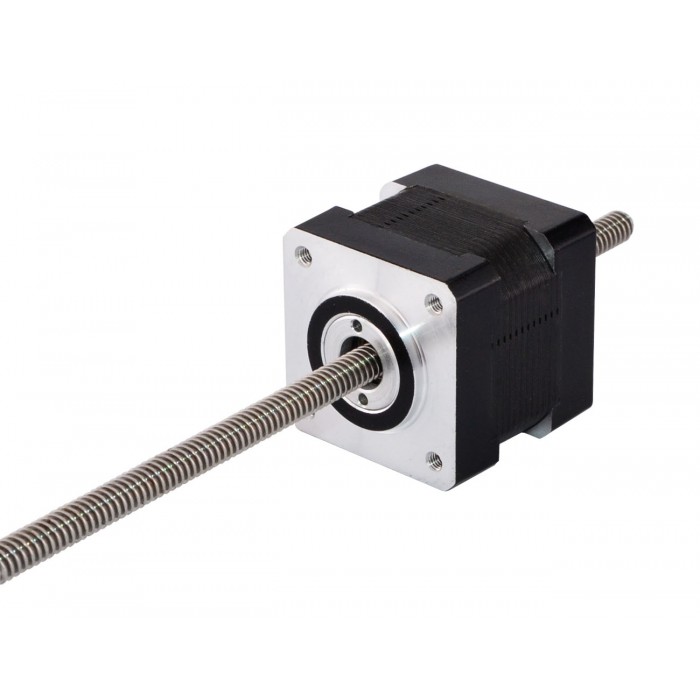

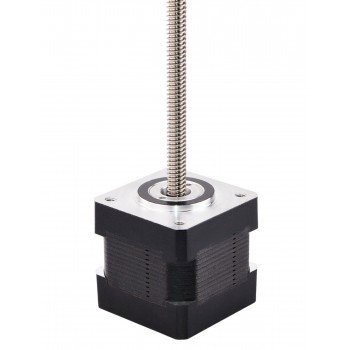

This model is almost exactly same as Haydon Kerk 35000 series size 14 non-captive stepper motor linear actuator. The motor part is 35mm body 1.8 degree 0.57A Nema 14 stepper motor, and it works with a 6.35mm (0.25") diameter 150mm (5.9055") length lead screw, the linear travel is 1.27mm(0.05") per revolution.

Electrical Specification

  • Manufacturer Part Number: 14LS13-05749-150N
  • Motor Type: Non-captive Linear Stepper
  • Step Angle: 1.8°
  • Minimal Thrust: 168N (300pps)
  • Rated Current/phase: 0.57A
  • Phase Resistance: 8.8ohms
  • Voltage: 5V
  • Inductance: 13mH±20%(1KHz)

Physical Specification

  • Frame Size: 35 x 35mm
  • Body Length: 35mm
  • Lead Screw Length: 150mm(5.9055")

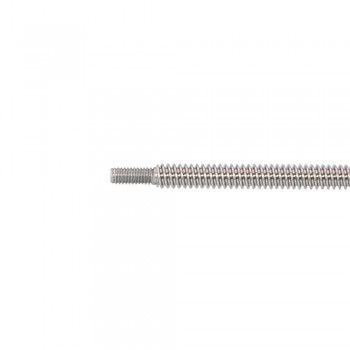

  • Lead Screw Diameter: Φ6.35mm(0.25")
  • Lead/Step: 0.003048mm(0.00012" )
  • Lead Travel/Revolution: 0.00635mm(0.00025")
  • Number of Leads: 4
  • Lead Length: 300mm
  • Weight : 162g

Connection

A+
A-
B+
B-
Red
Red/White
Green/White
Green



Resources

Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!

Prev: Nema 14 Non-captive Linear Stepper Motor Actuator Bipolar 1.8 Deg 0.57A 5V Revolution Lead 0.794mm/0.031" Lead Screw 150mm
Next: Nema 14 Non-captive Precision Linear Actuator Bipolar 1.8 Deg 0.57A 5V Lead Revolution 2.438mm/0.096" Lead Screw 150mm
Electrical Specification
Bipolar/Unipolar Bipolar
Inductance(mH) 13
Minimal Thrust(N) 168
Motor Type Non-Captive
Phase Resistance(ohm) 8.8
Rated Current (A) 0.57
Step Angle(°) 1.8
Physical Specification
Body Length(mm) 34.5
Lead Screw Diameter(mm) 6.35
Lead Screw Length(mm) 150
Lead Revolution(mm) 1.27
Linear Travel / Step(mm) 0.00635
No. of Lead 4
Lead Length(mm) 300
Frame Size(mm) Nema 14 (35 x 35)
