HLTNC Nema34 Close Loop Stepper Motor 1.8Deg 8N.m (1143oz.in) Without Brake & HBS86 Driver Kit
HLTNC Nema34 Close Loop Stepper Motor Kit 86HB250-118B-HBS86 (without Brake) 1.8Deg 8N.m + HBS86 Driver
Specifications:
Certification: CE
Model Number: 86HB250-118B HBS86

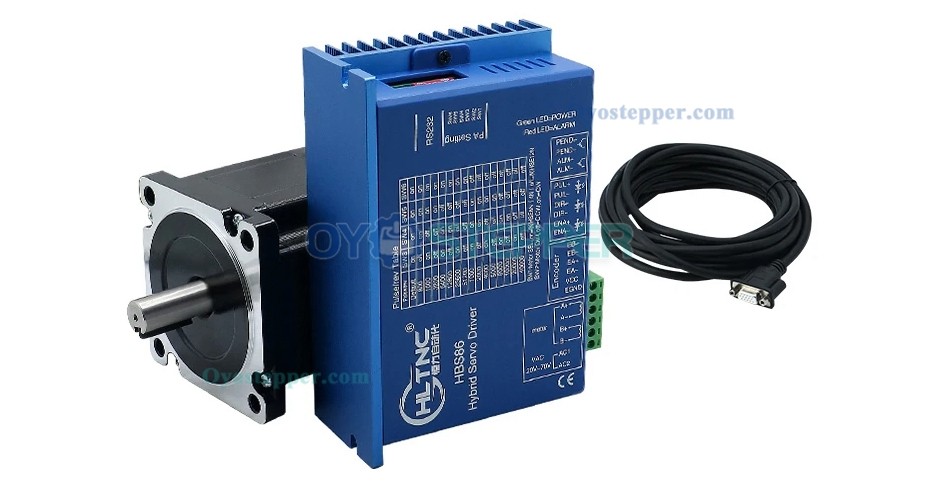

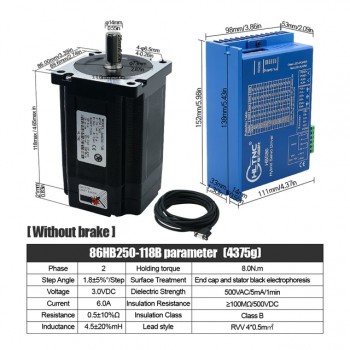

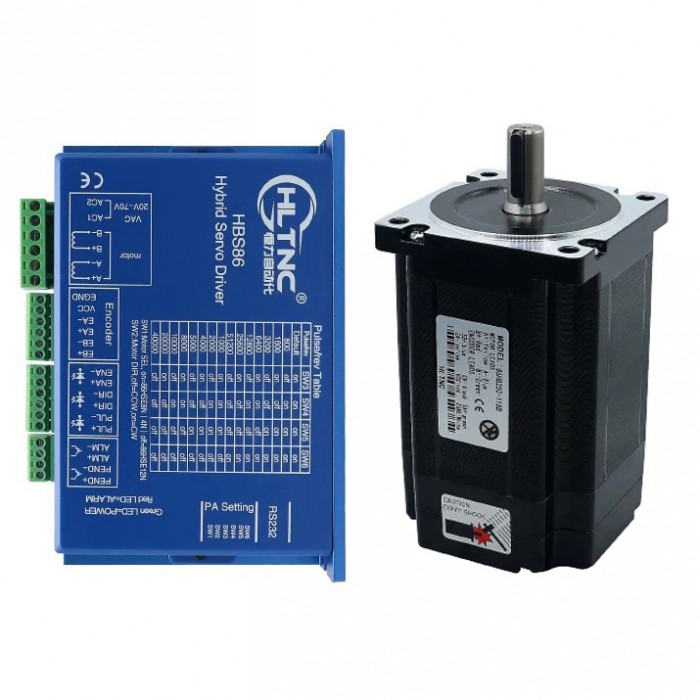

Name: Nema34 Close Loop Stepper Motor and Driver
Close Loop Motor: 86HB250-118B

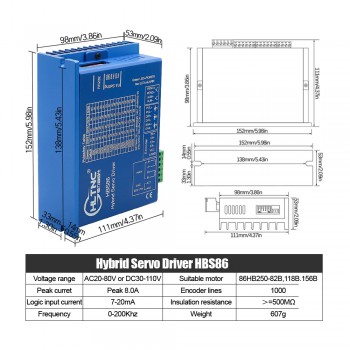

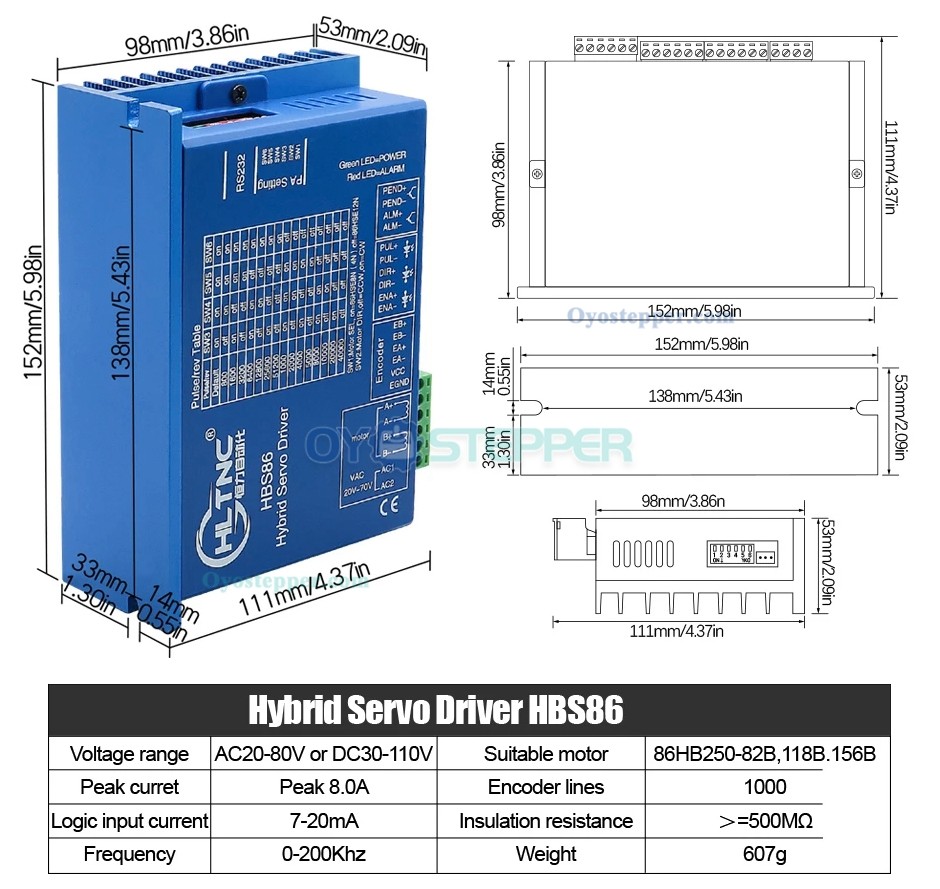

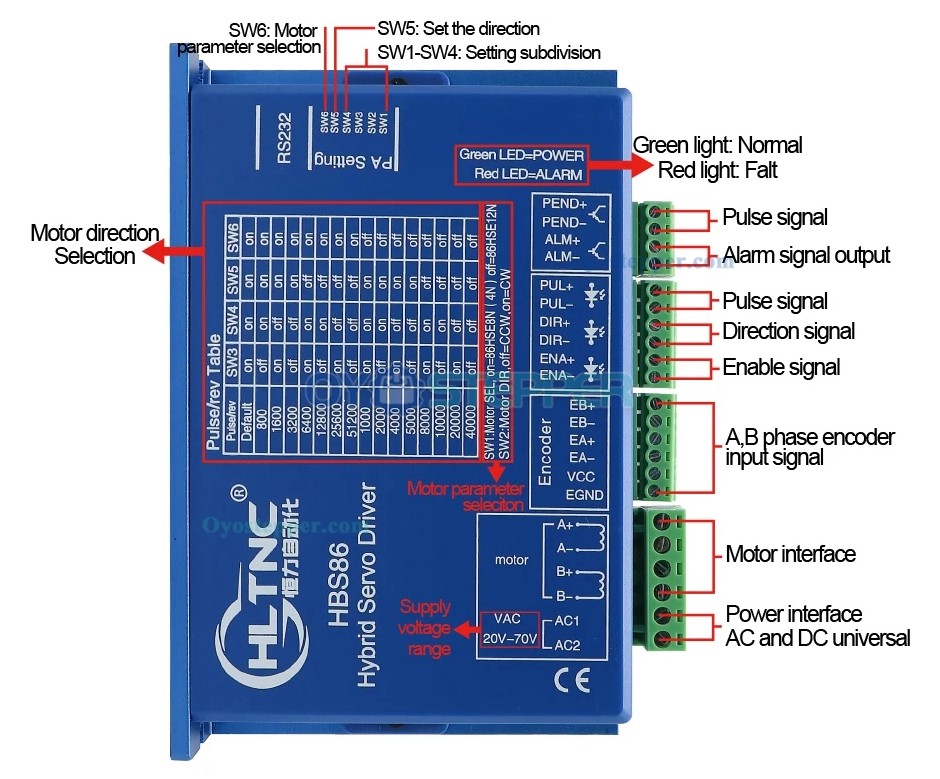

Motor Driver: HBS86
Encoder Cable: 3M
Holding torque: 8N.m

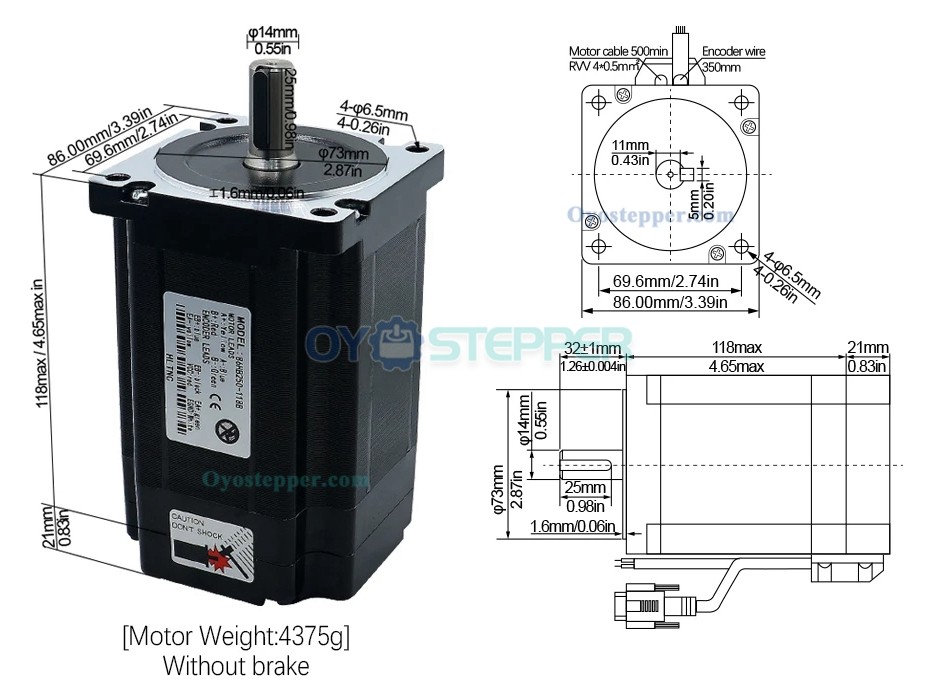

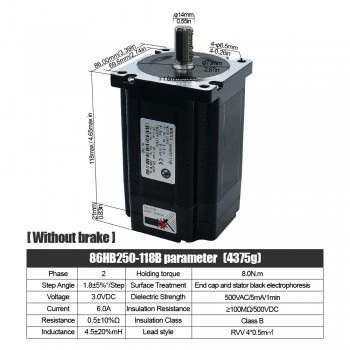

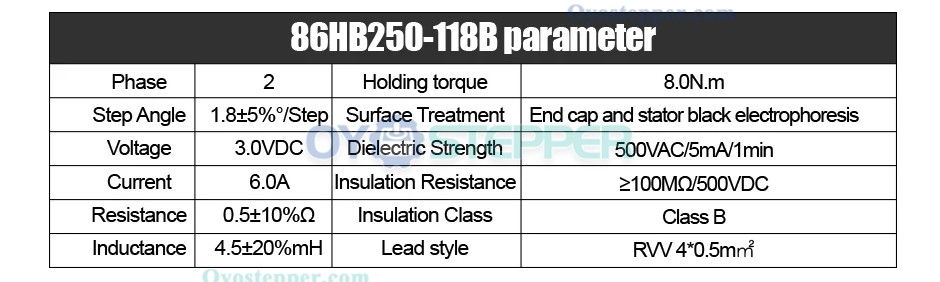

| Motor Specification | |
|---|---|
| Motor Nema Size | Nema 34 |
| Holding Torque (Ncm) | 800 |
| Holding Torque (oz.in) | 1133.14 |
| Inductance(mH) | 4.5 |
| Phase Resistance(ohm) | 0.5 |
| Rated Current (A) | 6 |
| Shaft Diameter(mm) | 14 |
| Shaft Length(mm) | 32 |
| Single Shaft/Dual Shaft | Single Shaft |
| Step Angle(°) | 1.8 |
| Number Of Phase | 2 |
| Shaft Type | Keyway |
| Body Length(mm) | 139 |
| Motor Length(mm) | 118 |
| CNC Kit Specification | |
| Open-loop/Closed-loop | Closed-loop |
| No of Axis | Single Axis |
